S312.0300.C2 TF46
Inserts
Part number S3120300C2TF46
HORN Inserts S312.0300.C2 TF46 for Turning

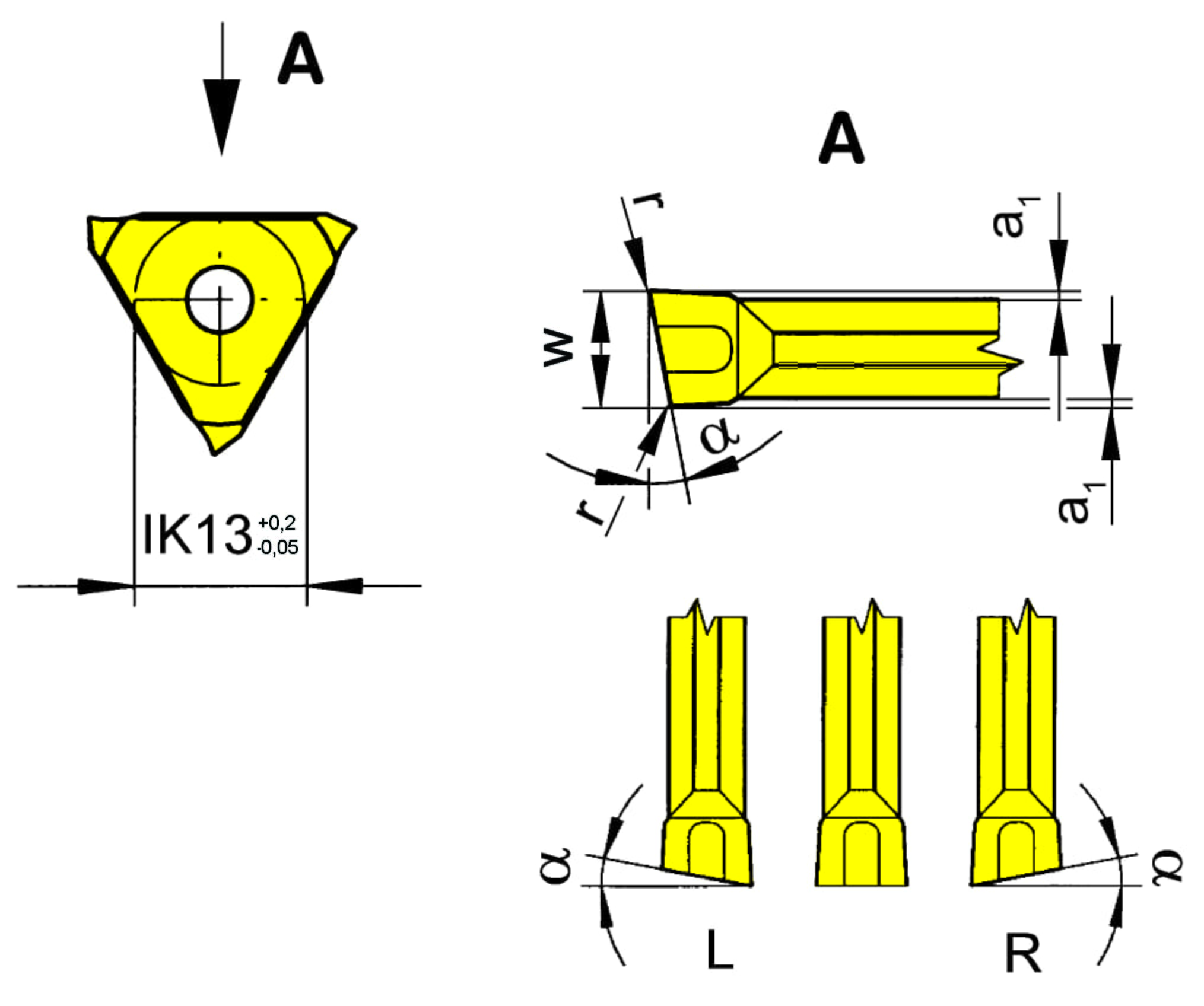

Please note:Technical instructions
Cancellation (a1)
0.25
mm
Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-01
ISO_SSC
HORN-31203$000N$$$$$
DIN_SSC
HORN-31203000N
Katalog_SSC
31203N
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S3120300C2_20240116_181825132.STP | Download |
| S3120300C2_20211125_110947526.DXF | Download |
| Download all files | |
