R114.4545.14 EG55

Insert

Part number R114454514EG55

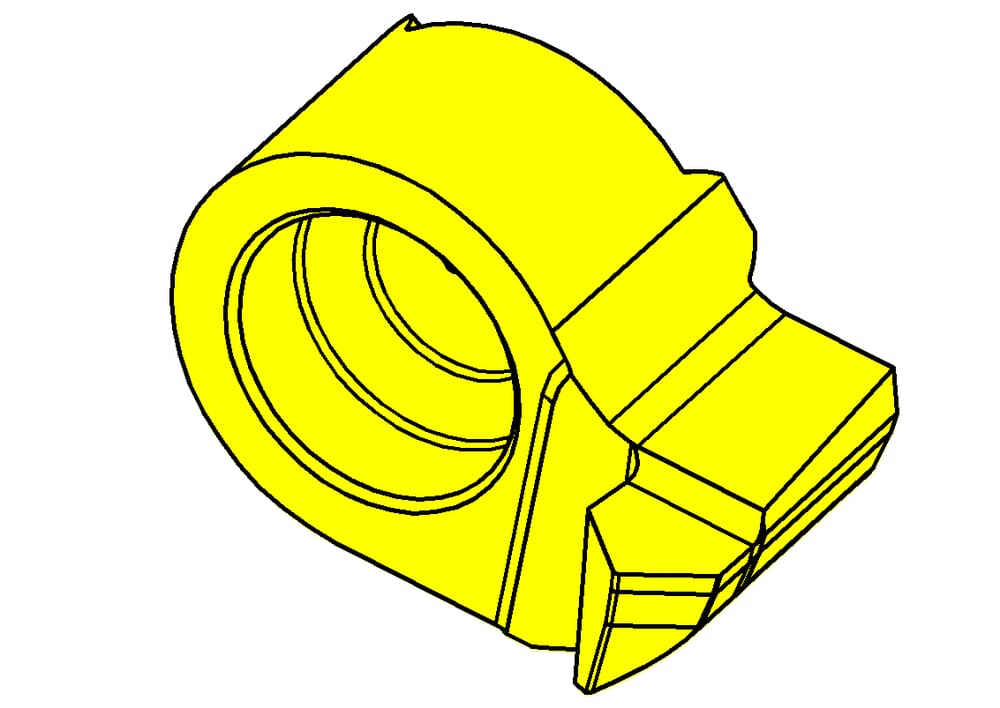

HORN Insert R114.4545.14 EG55 for Turning

free-angle

45 °

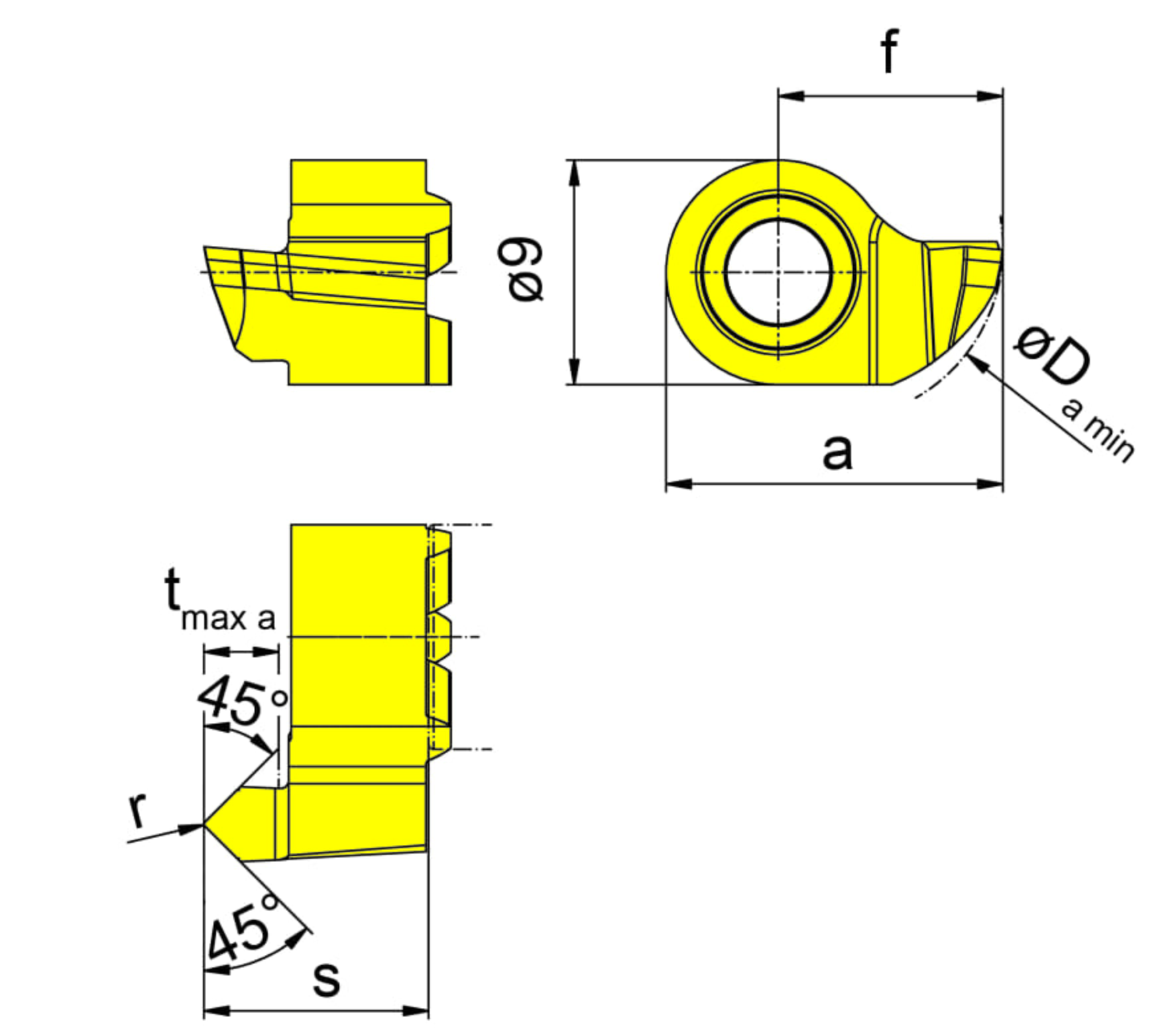

Head size (a)

13.5 mm

Maximum depth of groove (tmax a)

3 mm

Smallest axial bore diameter (Da min)

14 mm

ISO_SSC

HORN114090$84R$$$$$

DIN_SSC

HORN-11409084R

Katalog_SSC

114090R

Setting range radial (f)

9 mm

Corner radius (r)

0.1 mm

Cutting insert height, Cutting insert thickness (s)

9 mm
