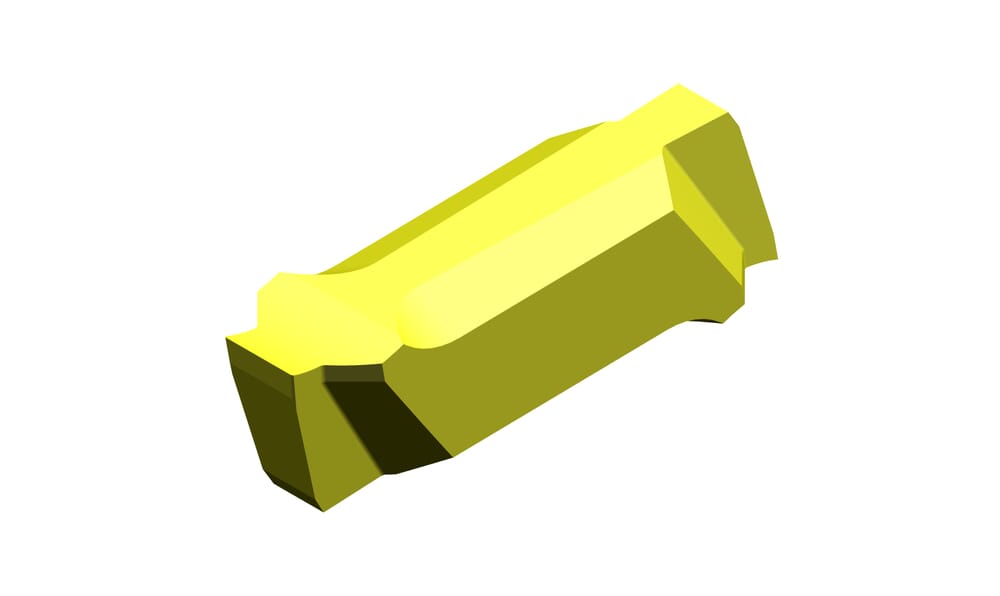

217.2115.43 P20

Inserts

Part number 217211543P20

HORN Inserts 217.2115.43 P20 for Turning

eclass-shortcut

21-18-20-03

Cutting insert width (s)

4.3 mm

Nominal range (Nw)

2.15 mm

Width of groove (w)

2.29 mm

Plating seat size (Größe)

Katalog_SSC

21704

DIN_SSC

HORN-217040008N

ISO_SSC

HORN217040008N$$$$$

Groove depth without groove outer edge chamfer (t1)

1.35 mm

Maximum depth of groove (tmax)

1.5 mm

Cancellation (a1)

1.02 mm
