S117.0012.00 H54
Inserts
Part number S117001200H54

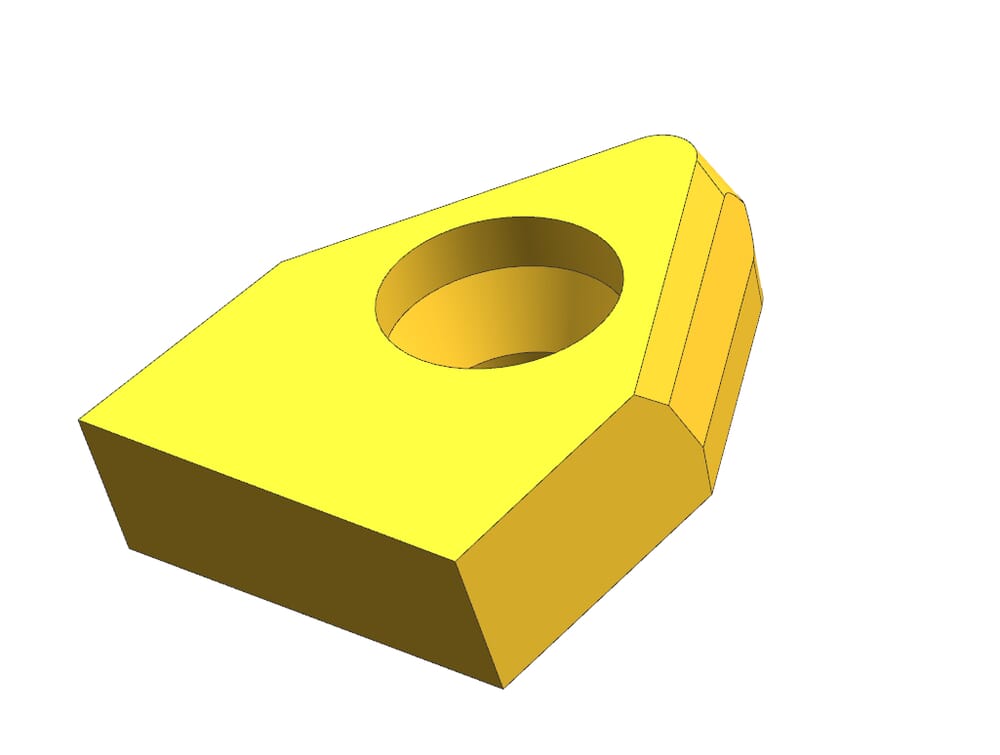

HORN Inserts S117.0012.00 H54 for Turning
Please note:Technical instructions
Insertion angle (α)
5
°
Maximum depth of groove (tmax)
4.5
mm
eclass-shortcut
21-18-20-11
Toolholder (Klemmhalter)
H117...12
ISO_SSC
HORN117121050N$$$$$
DIN_SSC
HORN-117121050N
Katalog_SSC
1171205
Width of groove (w)
12
mm
Cutting insert height, Cutting insert thickness (E)
4.5
mm
Total length (l)
17
mm
| Downloads | |
|---|---|
| S117001200_20210630_144535248.STP | Download |
| S117001200_20210625_161939092.DXF | Download |
| Download all files | |
