B105.0012.11.01
Toolholder
Part number B10500121101

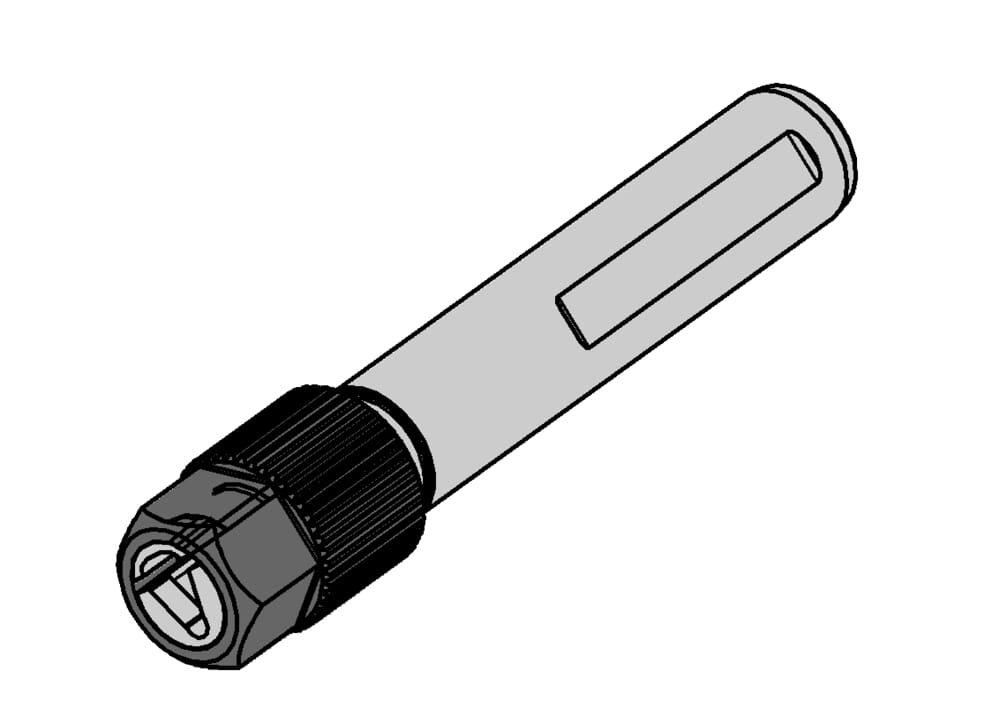

HORN Toolholder B105.0012.11.01 for Turning
Please note:Technical instructions
Width of blank (b)
7
mm
eclass-shortcut
21-18-10-05
Key range (SW)
13
mm
ISO_CCTMS
ZYL23G1200$$$$
DIN_CCTMS
ZYL01202315
Katalog_CCTWS
105125
DIN_CCTWS
HORN-10512595N
ISO_CCTWS
HORN105125$95N$$$$$
Shank, clamping diameter (d)
12
Length of clamping surface(s) (l4)
50
mm
Head diameter (d2)
16
mm
Height clamping surface(s) (h)
11
mm

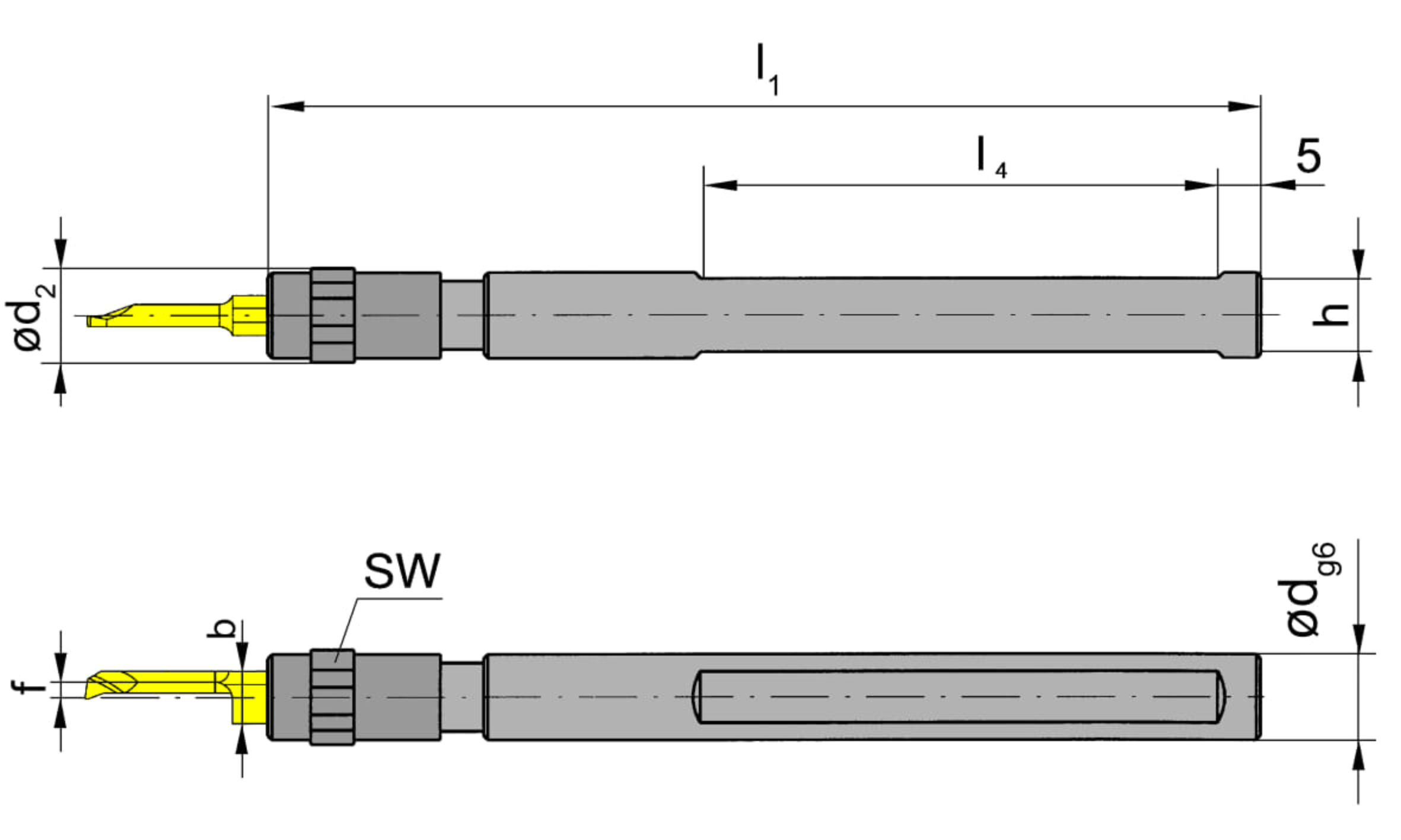

Total length (without cutting insert) (l1)
100
mm
Adjustment dimension (f)
1.2
mm
| Downloads | |
|---|---|
| B10500121101.DXF | Download |
| B105_0012_11_01_20171121_224028359.STP | Download |
| Download all files | |
