B105.0016.K.01
Toolholder
Part number B1050016K01

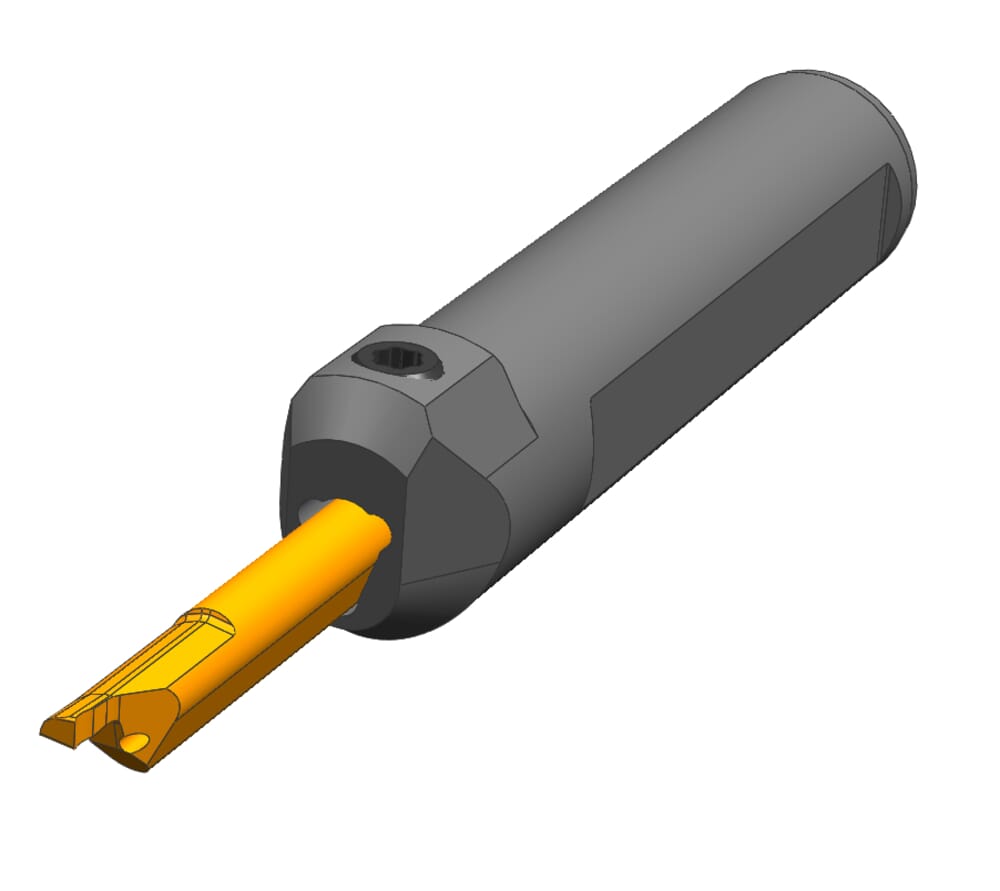

HORN Toolholder B105.0016.K.01 for Turning
Please note:Technical instructions

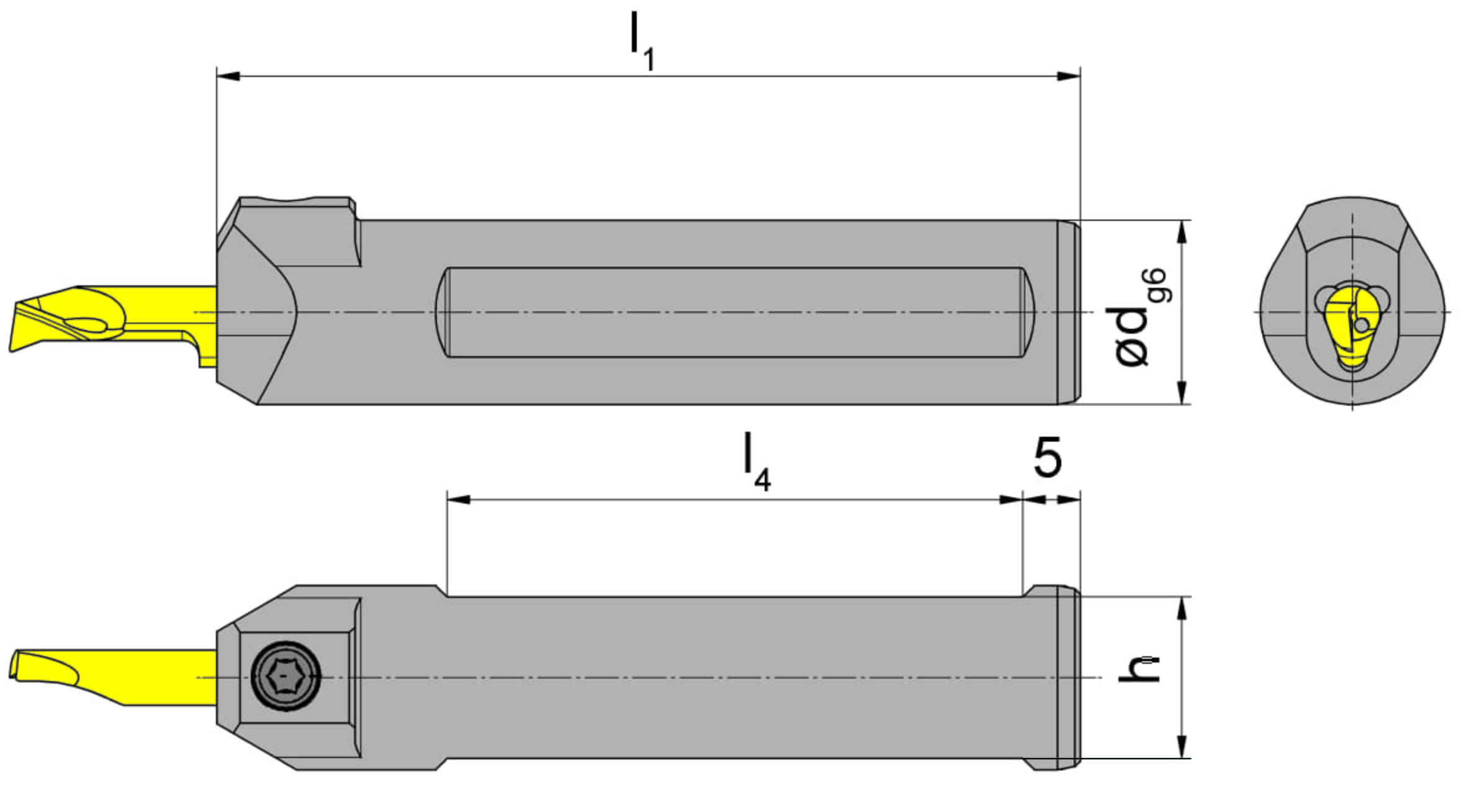

Total length (without cutting insert) (l1)
75
mm
Height clamping surface(s) (h)
14
mm
Length of clamping surface(s) (l4)
50
mm
Shank, clamping diameter (d)
16
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
DIN_CCTMS
ZYL01602315
ISO_CCTMS
ZYL23G1600$$$$
eclass-shortcut
21-18-10-05
