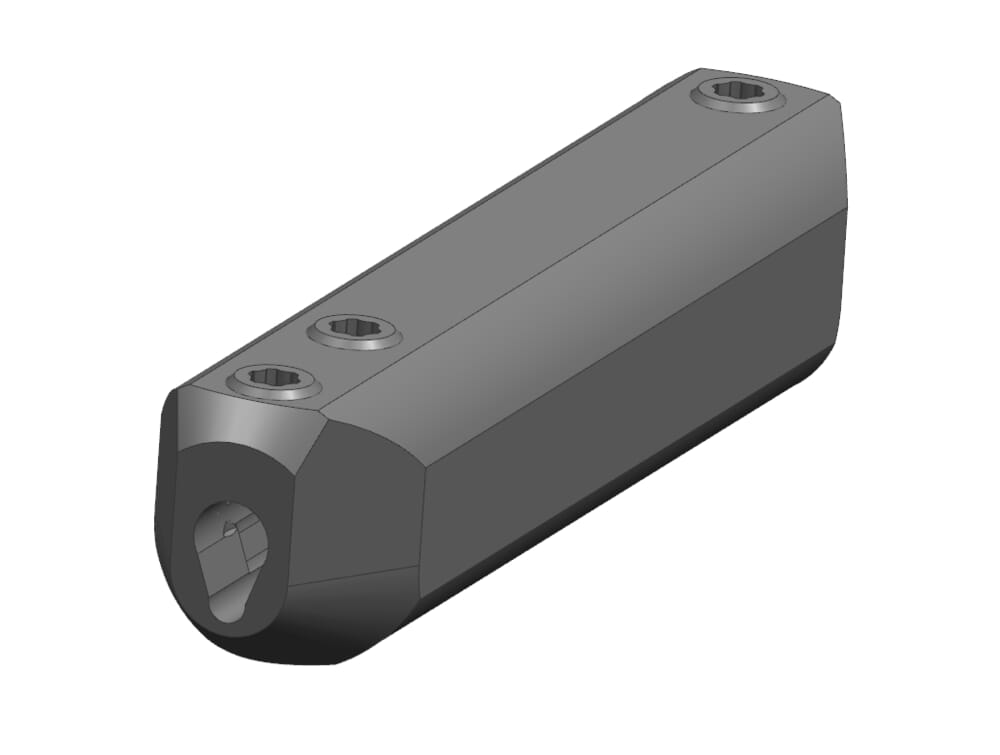

B105.0020.1.03
Toolholder
Part number B1050020103
HORN Toolholder B105.0020.1.03 for Turning
Please note:Technical instructions

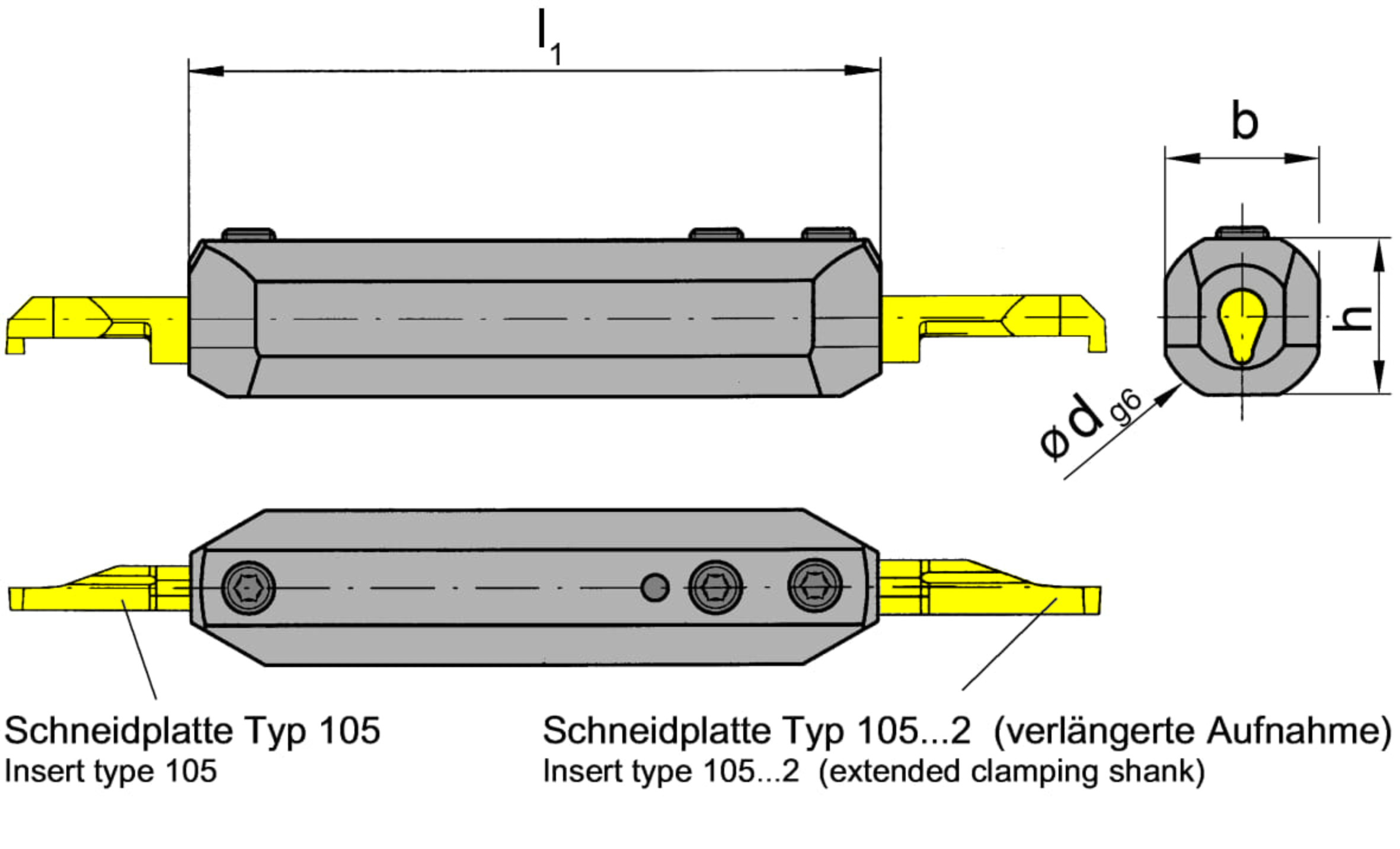

Shank width (b)
18
mm
Total length (without cutting insert) (l1)
80
mm
Height clamping surface(s) (h)
18
mm
Shank, clamping diameter (d)
20
mm
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$;HORN105225$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N;HORN-10522595N
Katalog_CCTWS
105123;105124;105125;105225
DIN_CCTMS
ZYL02002405
ISO_CCTMS
ZYL24G2000$$$$
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| B1050020103_20210627_123606963.DXF | Download |
| B105_0020_1_03_20171121_204253831.STP | Download |
| Download all files | |
