B105.0020.1.10

Toolholder

Part number B1050020110

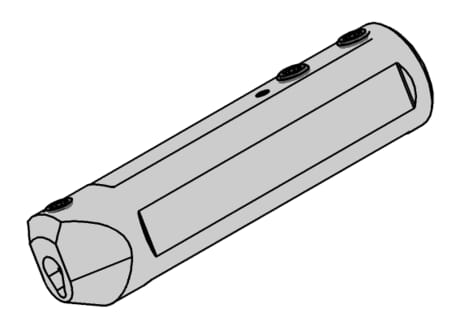

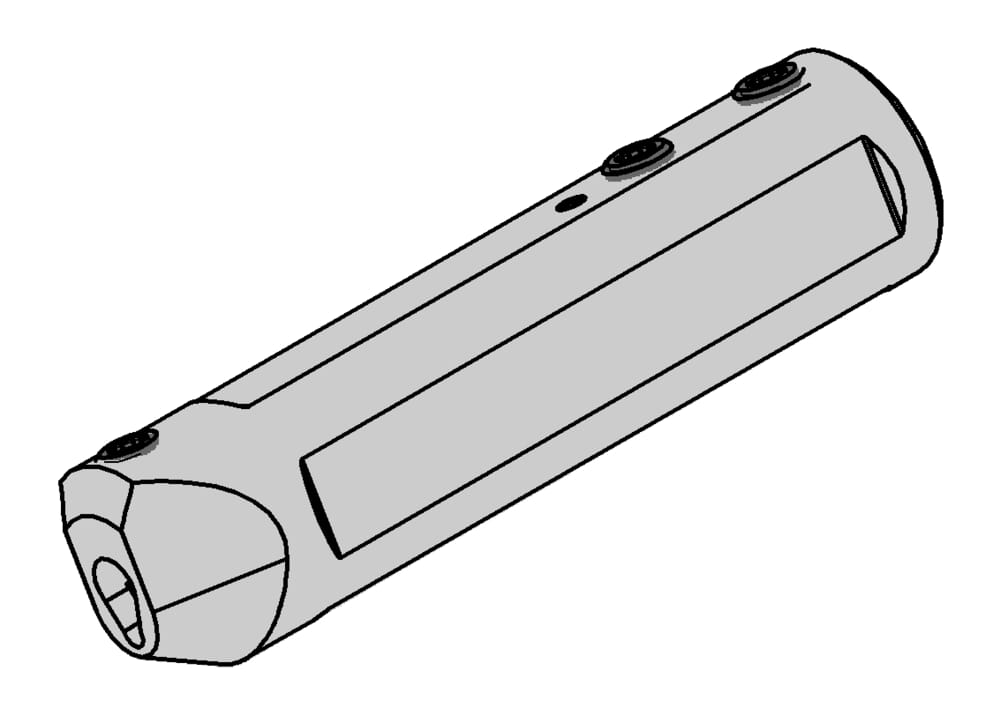

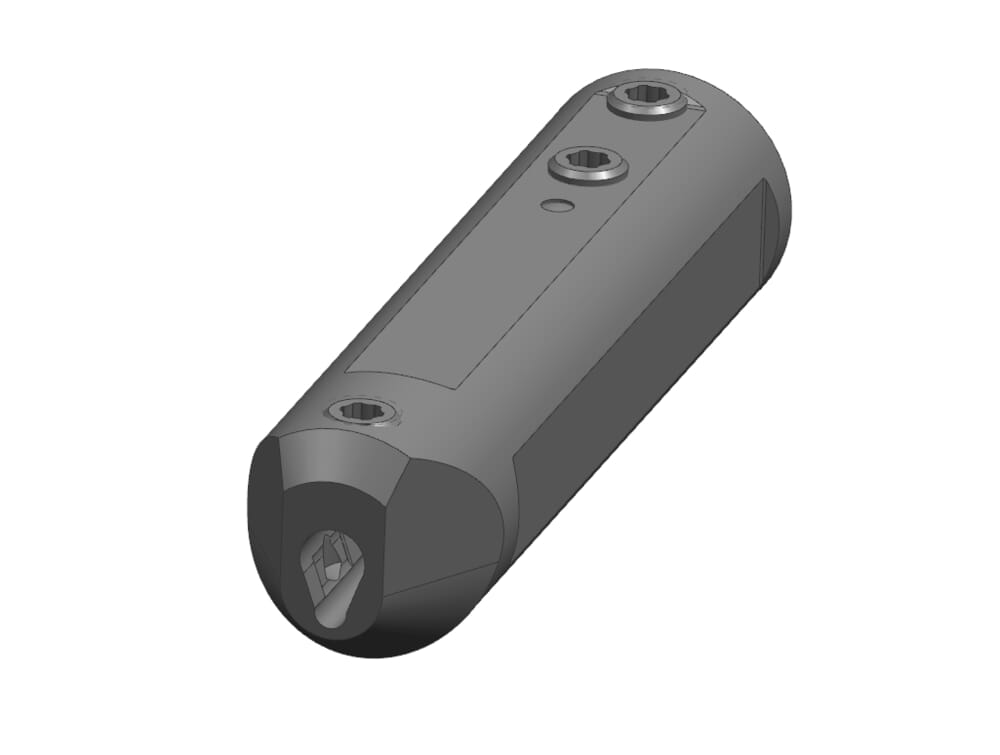

HORN Toolholder B105.0020.1.10 for Turning

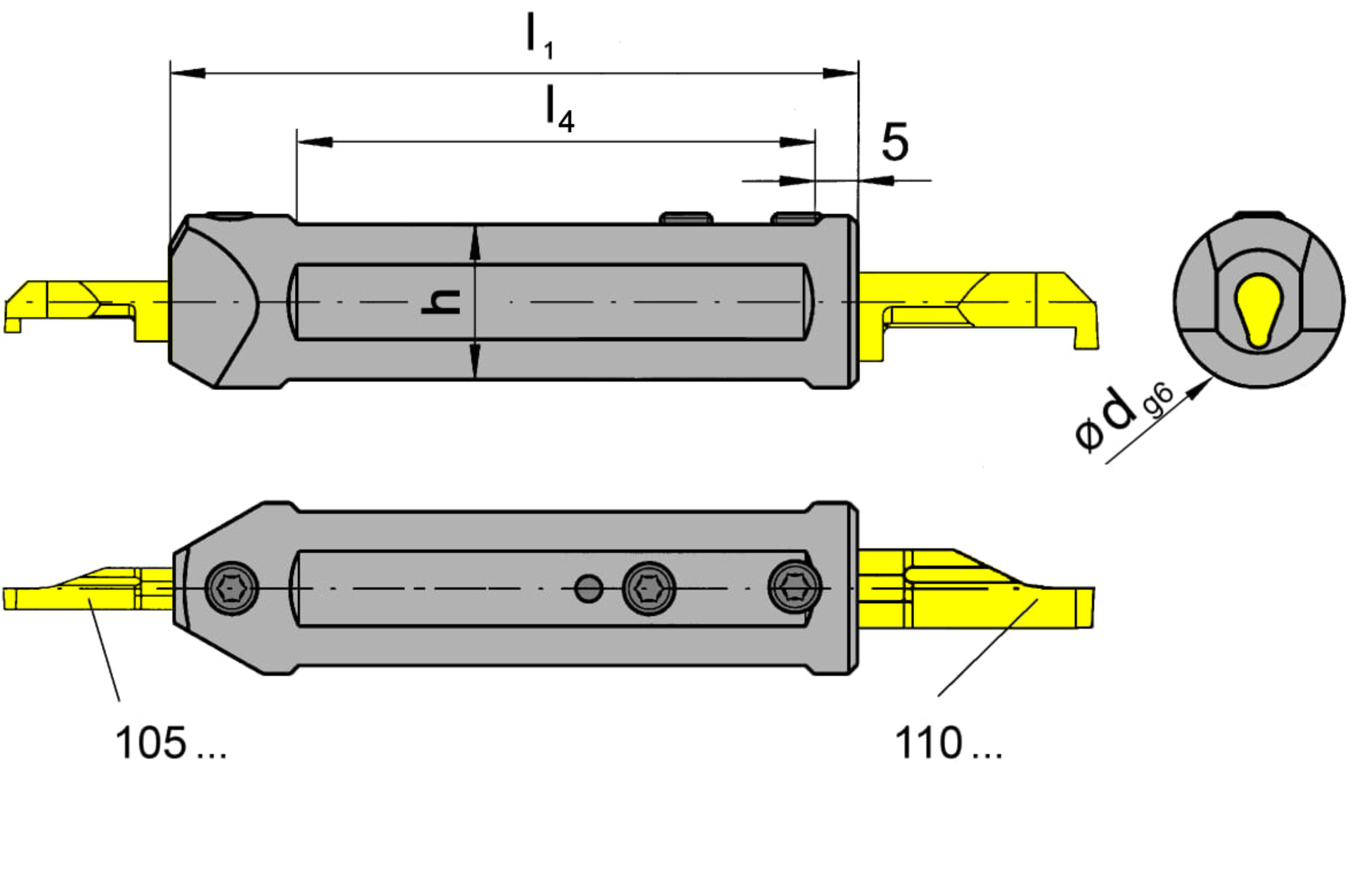

Shank, clamping diameter (d)

20 mm

eclass-shortcut

21-18-10-05

ISO_CCTMS

ZYL24G2000$$$$

DIN_CCTMS

ZYL02002405

Katalog_CCTWS

105123;105124;105125;110260

DIN_CCTWS

HORN-10512395N;HORN-10512495N;HORN-10512595N;HORN-11026095N

ISO_CCTWS

HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$;HORN110260$95N$$$$$

Length of clamping surface(s) (l4)

60 mm

Height clamping surface(s) (h)

18 mm

Total length (without cutting insert) (l1)

80 mm

shank-width-met

18 mm
