R114.1425.12 TN35

Inserts

Part number R114142512TN35

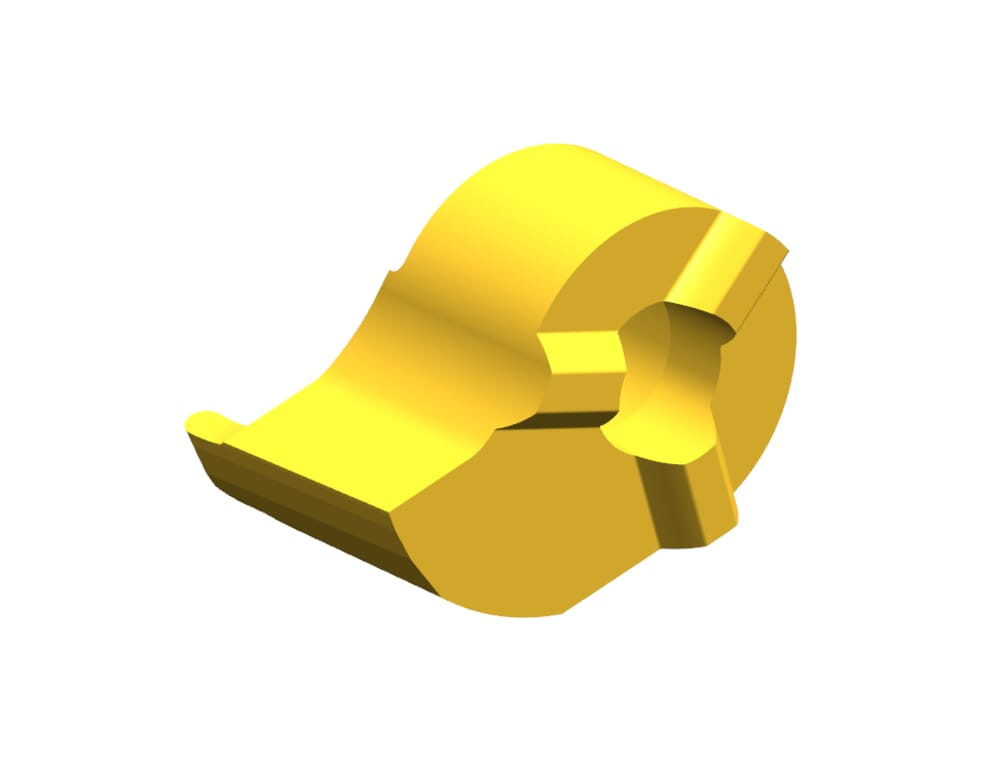

HORN Inserts R114.1425.12 TN35 for Turning

eclass-shortcut

21-18-20-11

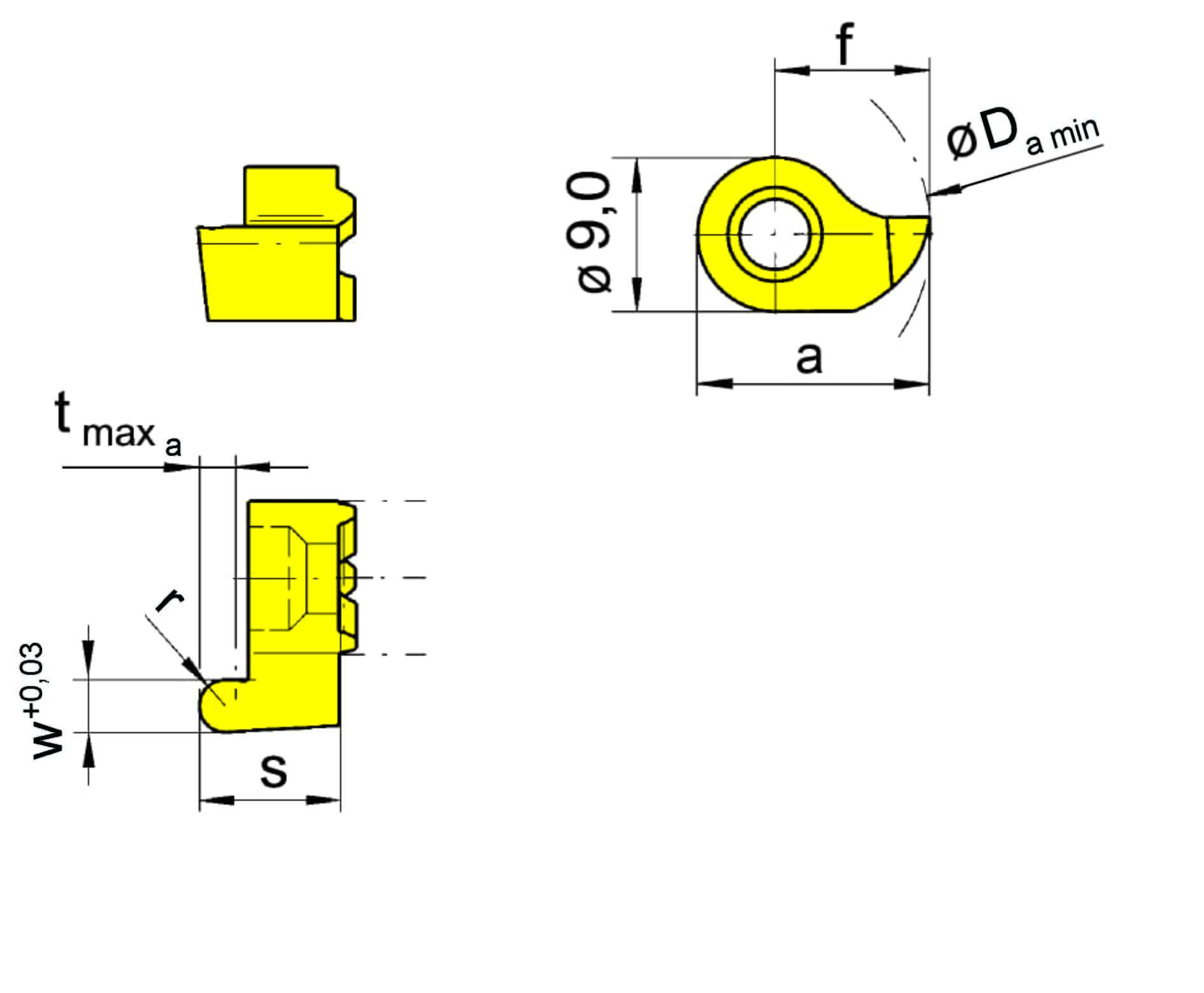

Cutting insert height, Cutting insert thickness (s)

8.3 mm

Setting range radial (f)

9 mm

Width of groove (w)

2.5 mm

Katalog_SSC

114090R

DIN_SSC

HORN-11409084R

ISO_SSC

HORN114090$84R$$$$$

Smallest axial bore diameter (Da min)

14 mm

Full radius (r)

1.25 mm

Maximum depth of groove (tmax a)

3 mm

Head size (a)

13.5 mm
