L105.9019.1.4 TN35
Inserts
Part number L105901914TN35

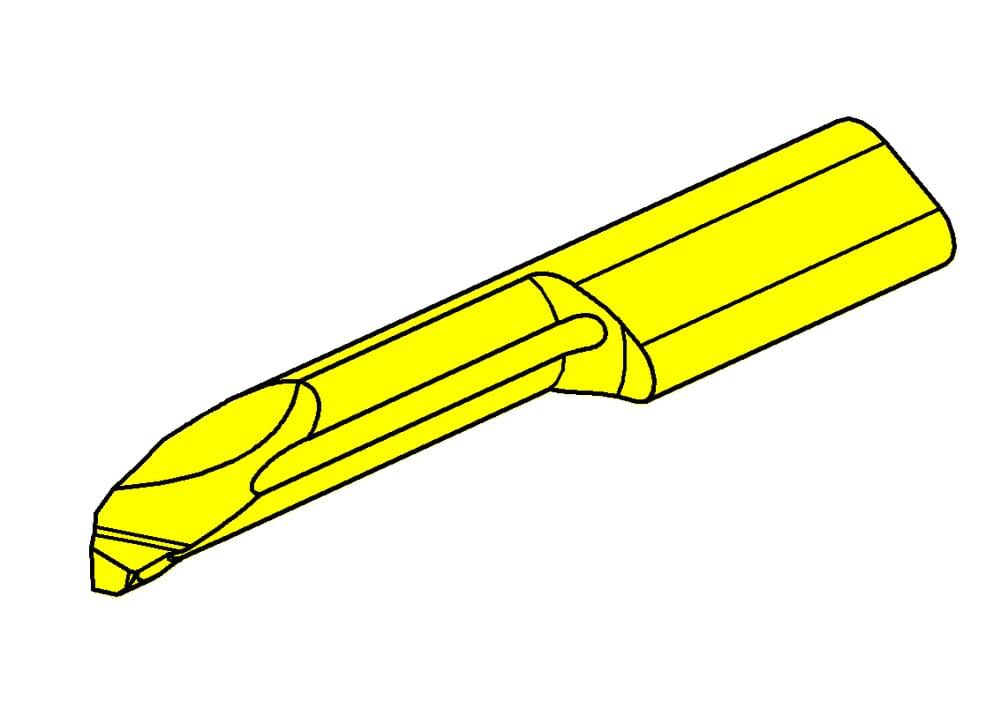

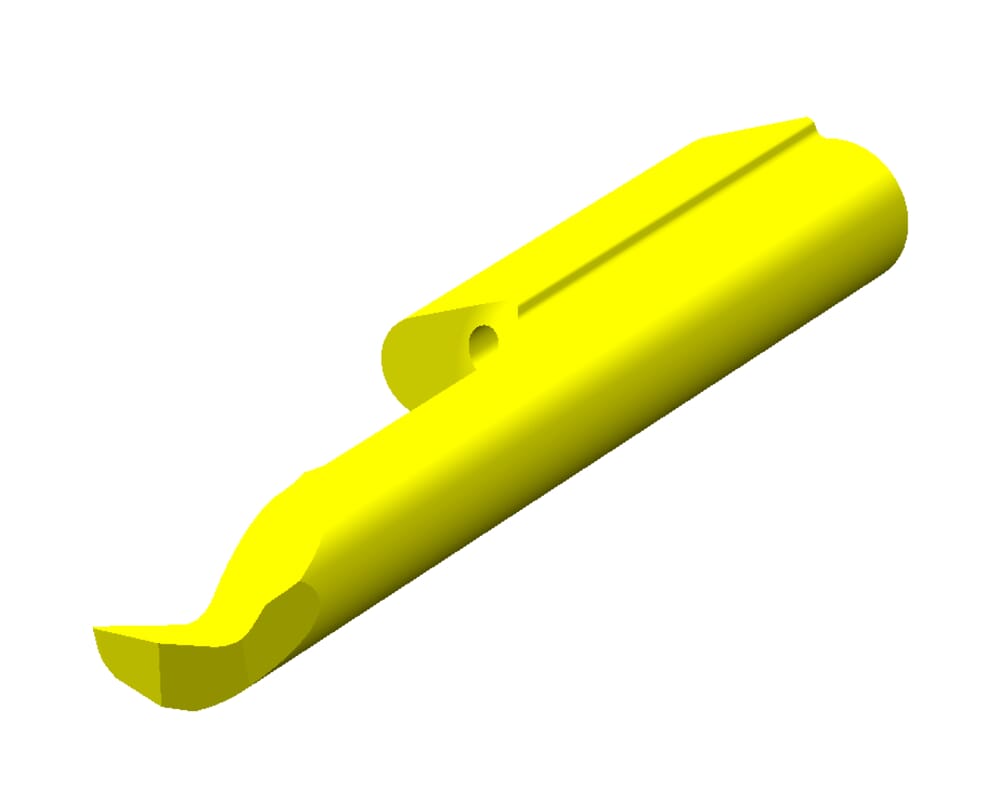

HORN Inserts L105.9019.1.4 TN35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

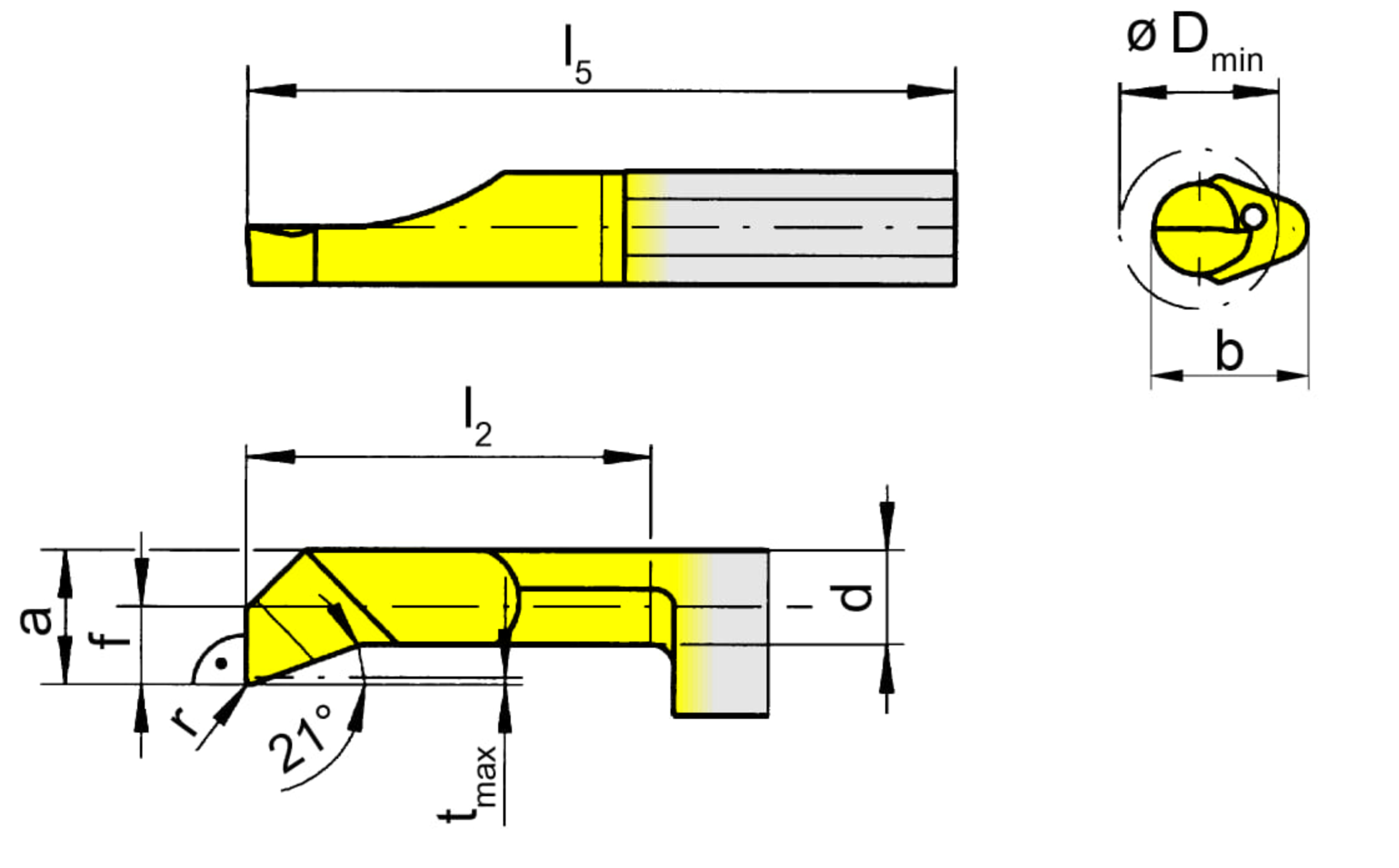

Smallest bore diameter (Dmin)
4
mm
Total length (l5)
25
mm
Setting range radial (f)
1.9
mm
Neck diameter (d)
2.9
mm
Katalog_SSC
105124
DIN_SSC
HORN-10512495N
ISO_SSC
HORN105124$95N$$$$$
Width of blank (b)
6.4
mm
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
3.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
10
mm
| Downloads | |
|---|---|
| L105901914.DXF | Download |
| L105_9019_1_4_20171121_213836552.STP | Download |
| Download all files | |
