L108.1847.15.B CB10
Insert
Part number L108184715BCB10

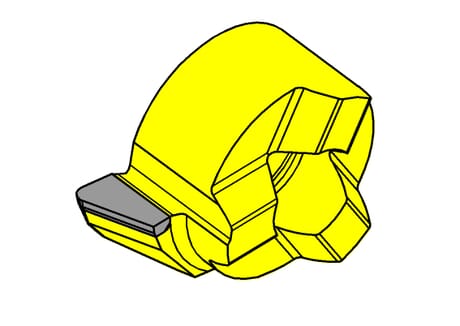

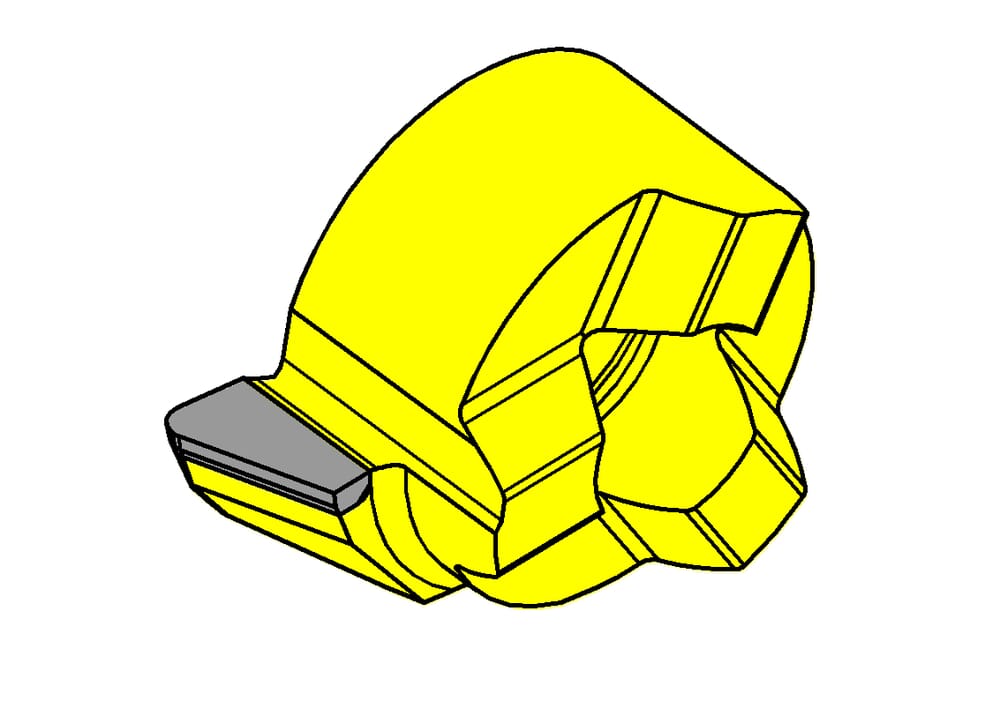

HORN Insert L108.1847.15.B CB10 for Turning
Please note:Technical instructions

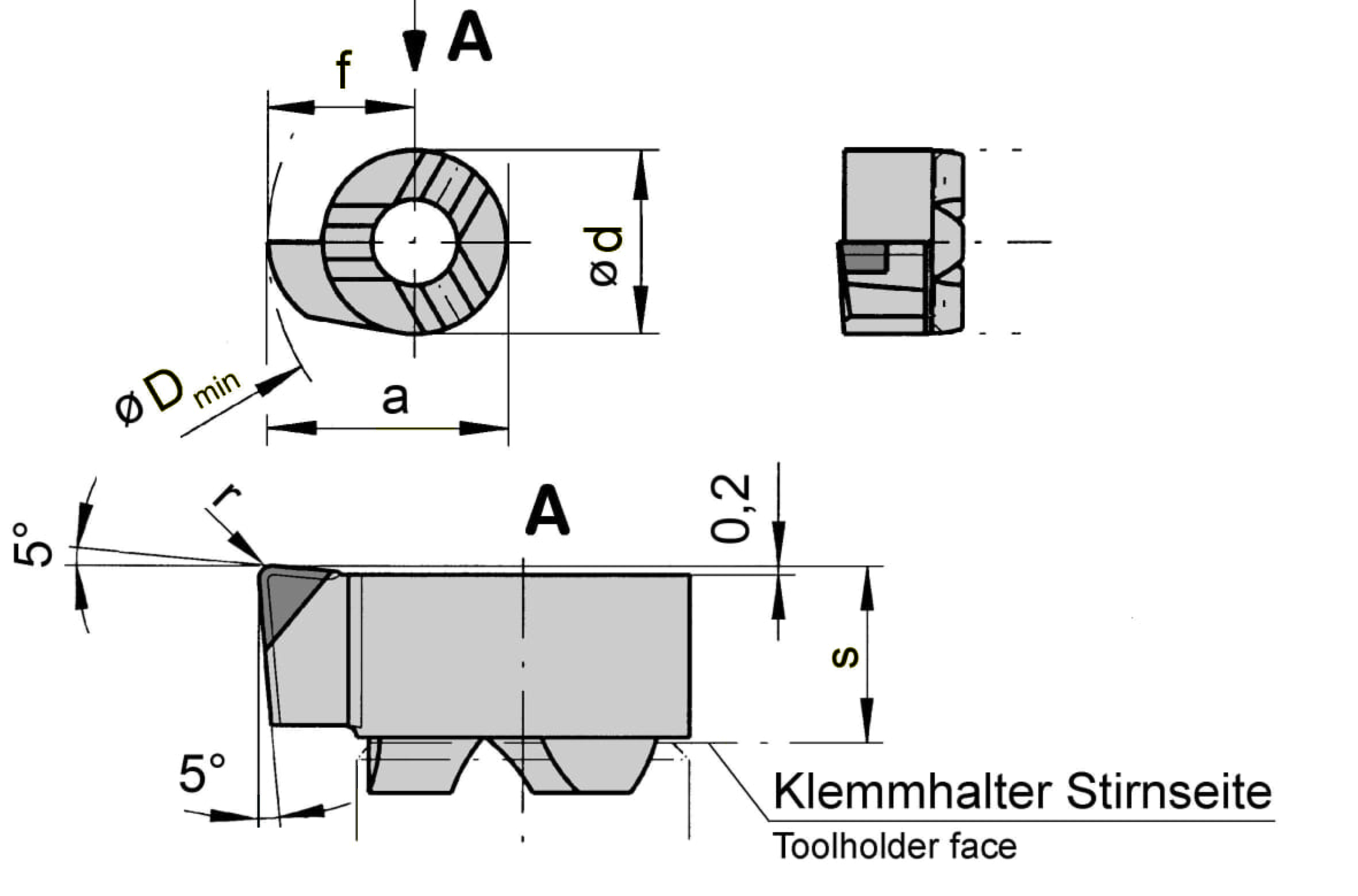

Top radius (r)
0.15
mm
free-angle
18
°
Head size (a)
7.65
mm
ISO_SSC
HORN108060$84L$$$$$
DIN_SSC
HORN-10806084L
Katalog_SSC
108060L
Setting range radial (f)
4.65
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert height, Cutting insert thickness (s)
3.5
mm
Smallest bore diameter (Dmin)
7.8
mm
| Downloads | |
|---|---|
| L108184715B_20240205_181913792.DXF | Download |
| L108184715B.STP | Download |
| Download all files | |
