L368.3208.08
Toolholders
Part number L368320808

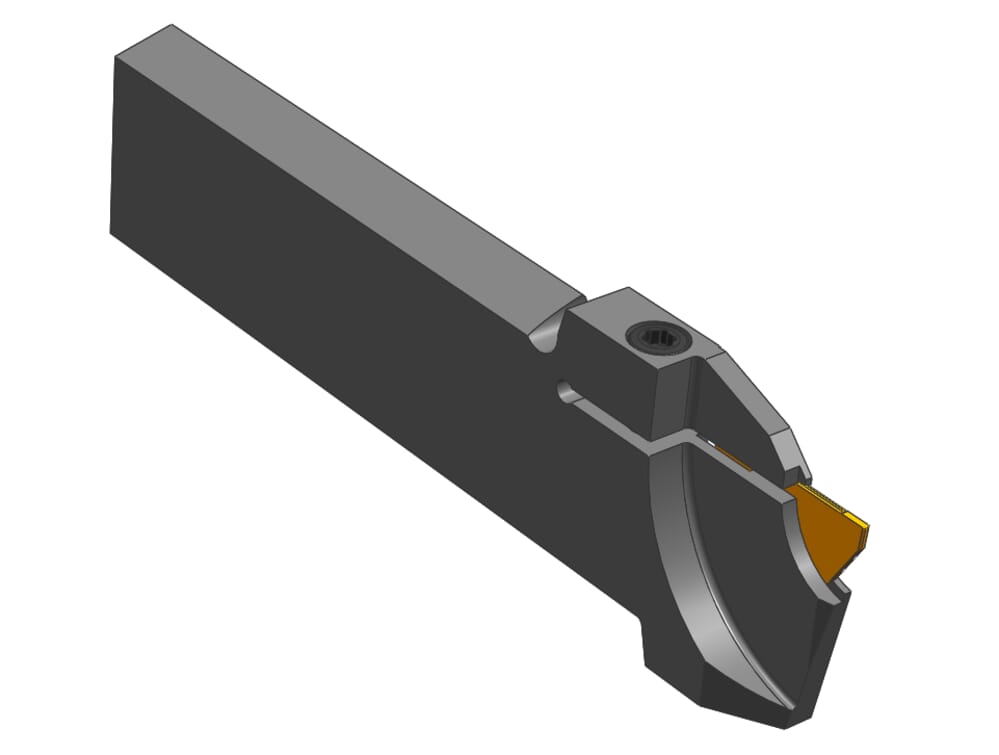

HORN Toolholders L368.3208.08 for Turning
Please note:Technical instructions

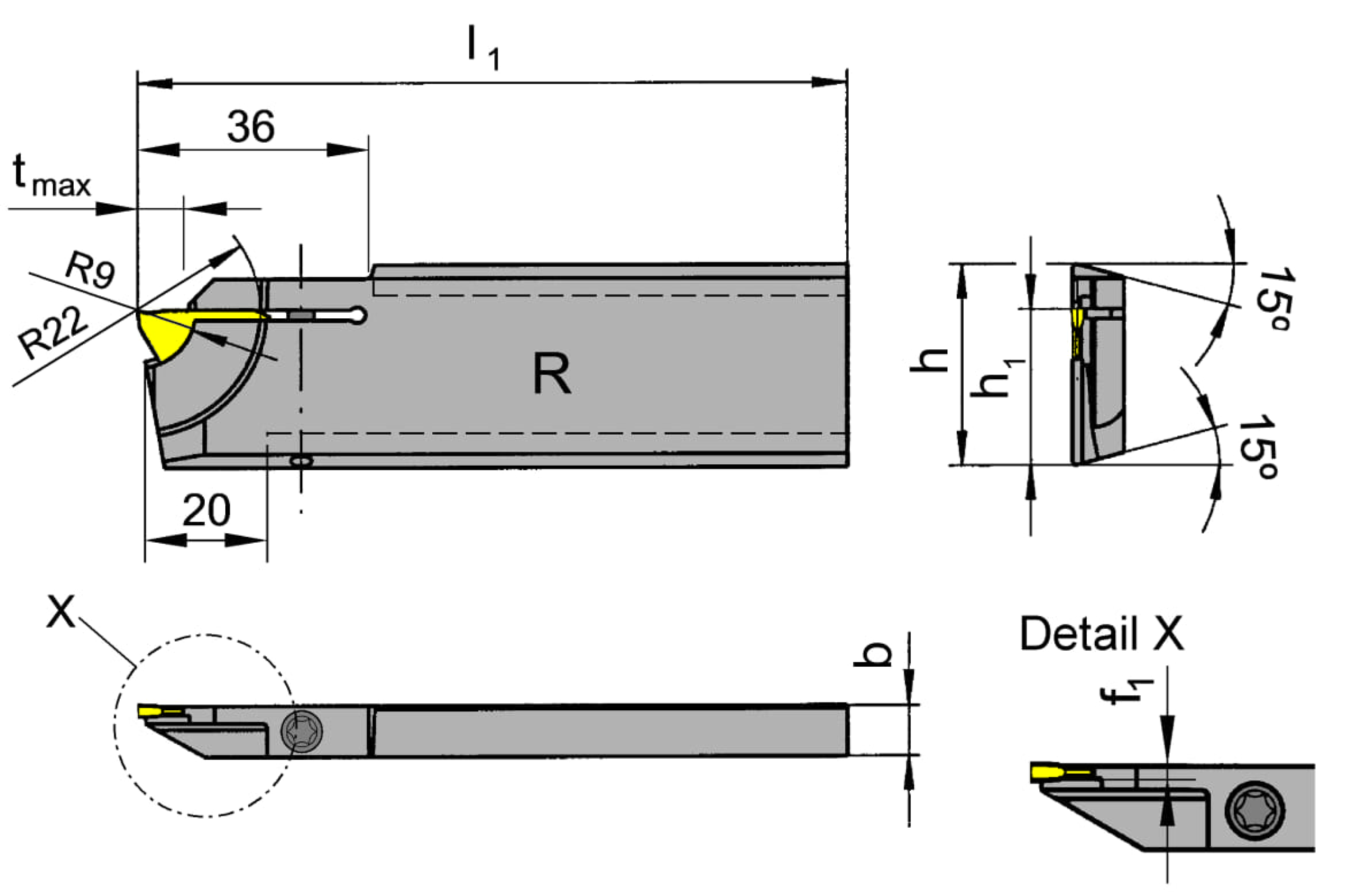

Peak height (h1)
24.8
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
31208N
DIN_CCTWS
HORN-31208000N
ISO_CCTWS
HORN-31208$000N$$$$$
Maximum insertion depth (tmax)
8
mm
Head height (h)
32
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f1)
1
mm
Width / thickness sword (b)
8
mm
| Downloads | |
|---|---|
| L368320808.DXF | Download |
| L368_3208_08_20171121_181822786.STP | Download |
| Download all files | |
