LB110.0020.16.2
Toolholders
Part number LB1100020162

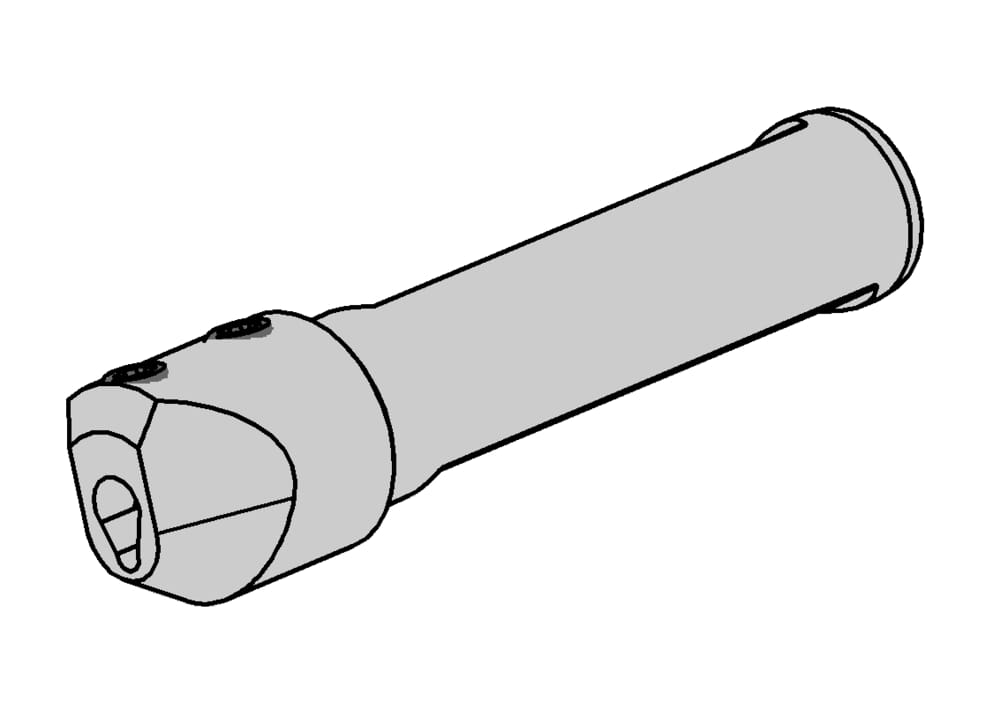

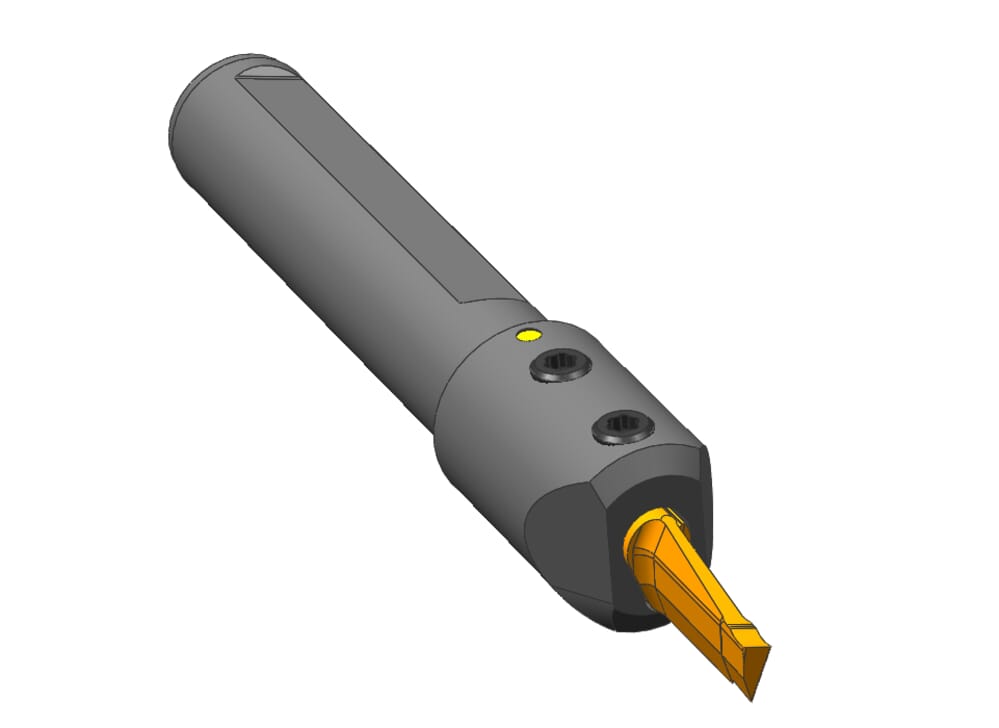

HORN Toolholders LB110.0020.16.2 for Turning
Please note:Technical instructions
Total length (without cutting insert) (l1)
100
mm
Height clamping surface(s) (h)
18
mm
Length of clamping surface(s) (l4)
55
mm
Shank, clamping diameter (d)
20
ISO_CCTWS
HORN110260$95N$$$$$
DIN_CCTWS
HORN-11026095N
Katalog_CCTWS
110260
DIN_CCTMS
ZYL02002315
ISO_CCTMS
ZYL23G2000$$$$
eclass-shortcut
21-18-10-05
| Downloads | |
|---|---|
| LB1100020162.DXF | Download |
| LB110_0020_16_2_20171121_204944100.STP | Download |
| Download all files | |
