N231.4060.34 TN35
Inserts
Part number N231406034TN35

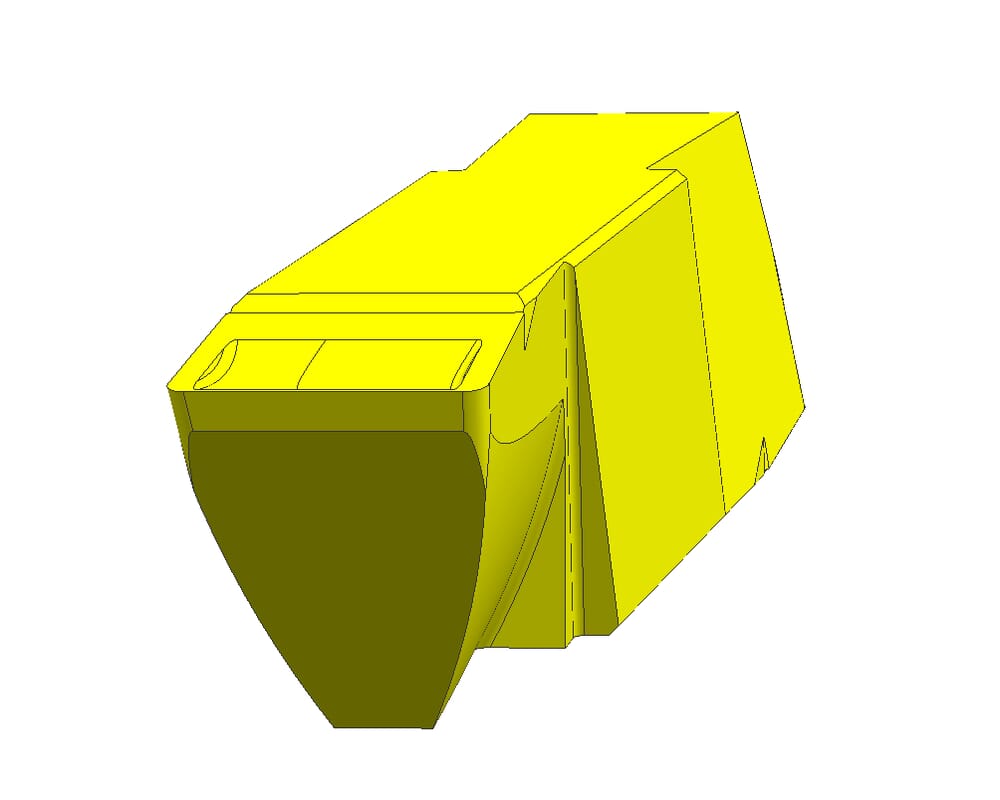

HORN Inserts N231.4060.34 TN35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-03
Smallest axial bore diameter (Da min)
40
mm
ISO_SSC
HORN231050128N$$$$$
DIN_SSC
HORN-231050128N
Katalog_SSC
23105N
Plating seat size (Größe)
5
Width of groove (w)
6
mm
Cutting insert width (s)
5.8
mm
Corner radius (r)
0.4
mm
| Downloads | |
|---|---|
| N231406034_20210628_232908353.DXF | Download |
| N231406034_20230113_170008001.STP | Download |
| Download all files | |
