R105.1803.0.07 MG12
Inserts
Part number R1051803007MG12

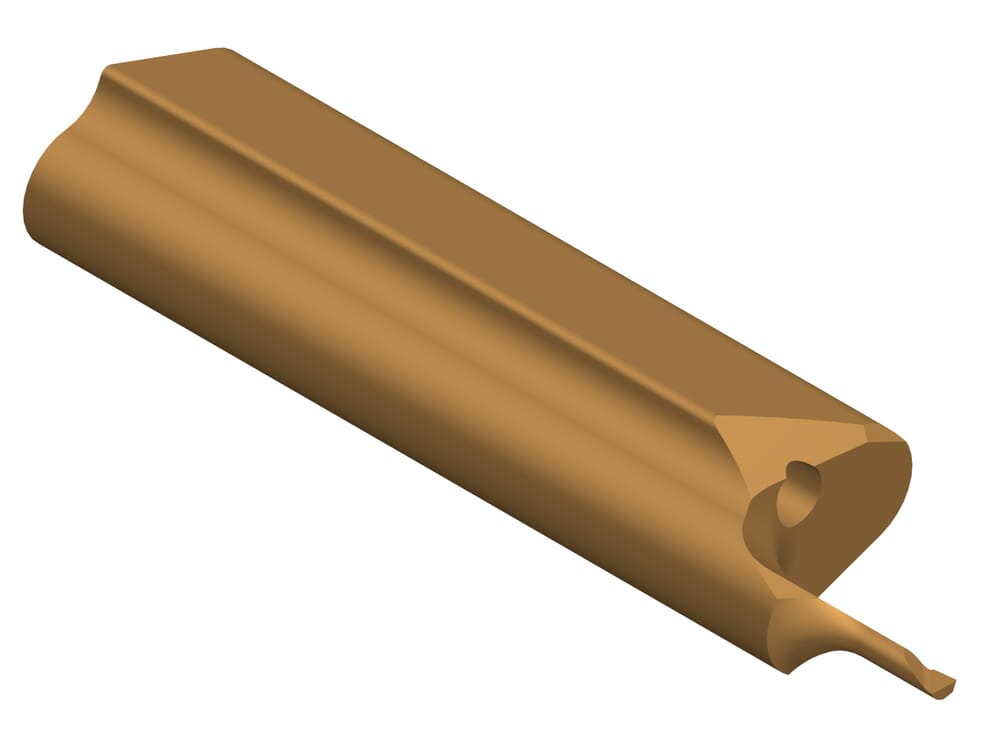

HORN Inserts R105.1803.0.07 MG12 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
0.7
mm
Total length (l5)
23
mm
Setting range radial (f)
0.3
mm
Form (Form)
A
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.05
mm
Head size (a)
0.6
mm
Top radius (r)
0.05
mm
Neck length (l2)
2
mm
| Downloads | |
|---|---|
| R1051803007_20210626_040821639.DXF | Download |
| R1051803007_20230113_232142259.STP | Download |
| Download all files | |
