R218.1616.2.04.IK
Toolholder
Part number R2181616204IK

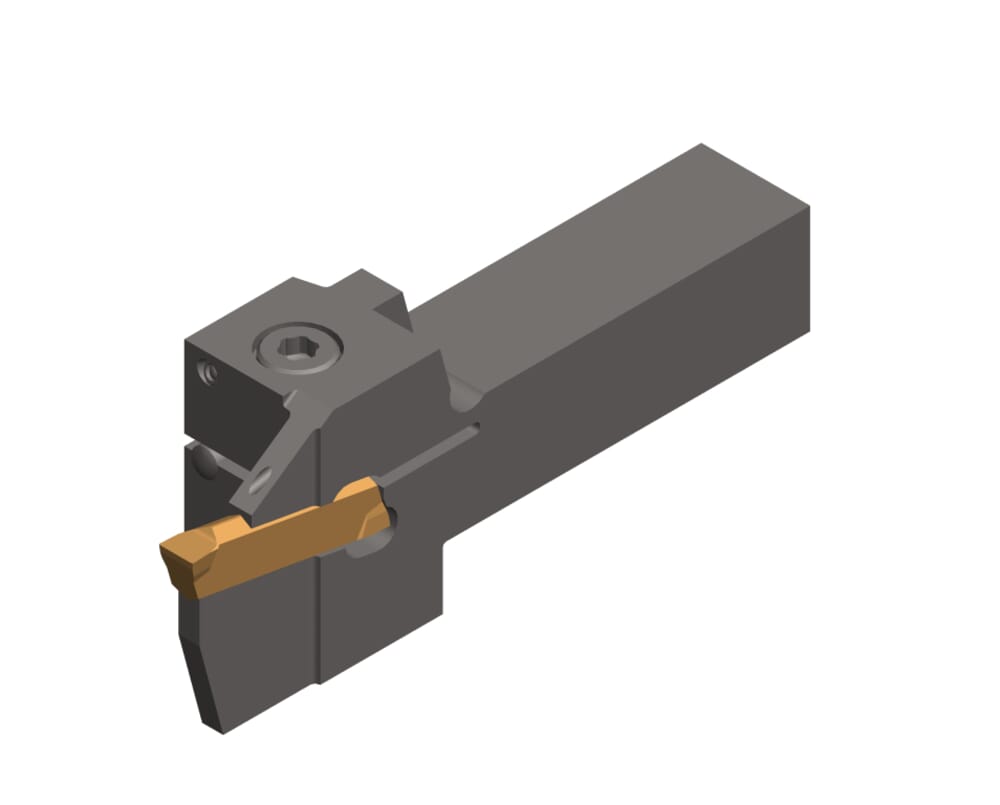

HORN Toolholder R218.1616.2.04.IK for Turning
Please note:Technical instructions
Head length (including cutting edge) (l2)
37
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
ISO_CCTWS
HORN229040108N$$$$$
Head length top (including cutting edge) (l3)
43.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
18
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
91
mm
Adjustment dimension cutting center (f1)
13.7
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| R2181616204IK_20210628_203038261.DXF | Download |
| R2181616204IK_20230114_024345729.STP | Download |
| Download all files | |
