R226.2525.2.05.IK
Toolholder
Part number R2262525205IK

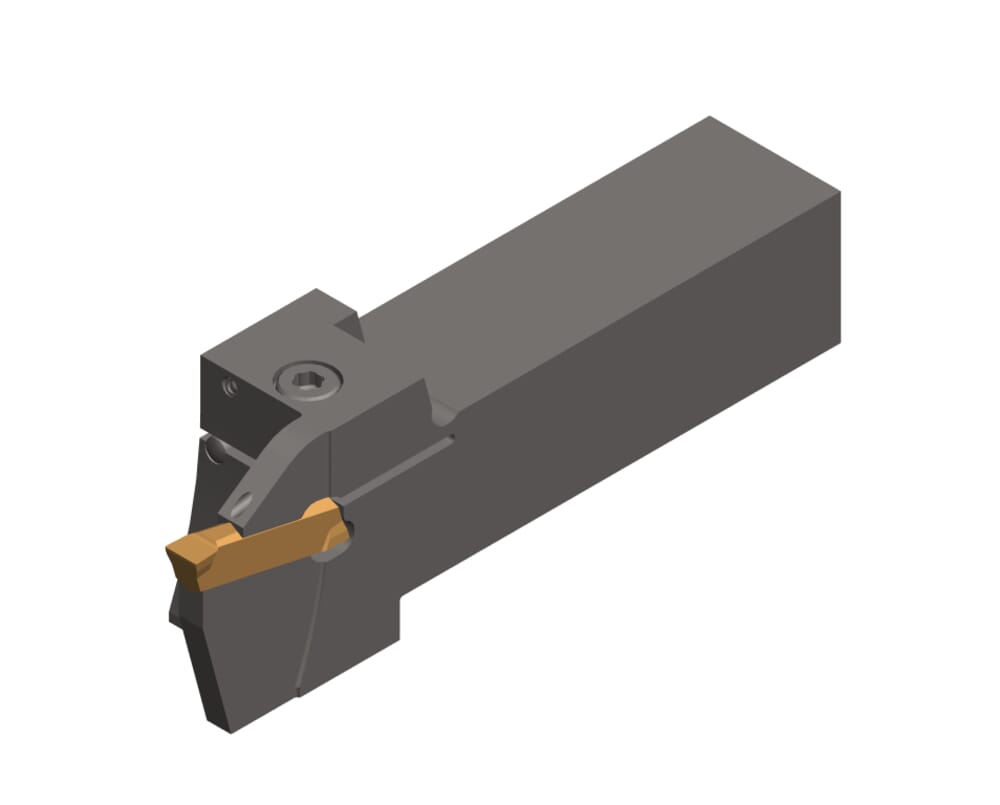

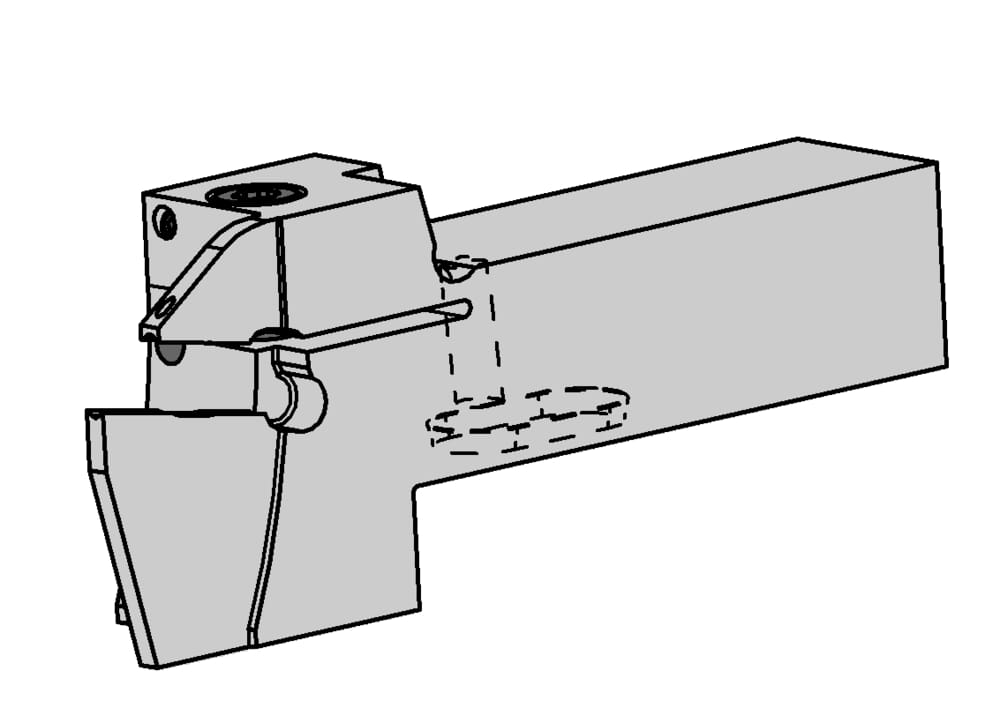

HORN Toolholder R226.2525.2.05.IK for Turning
Please note:Technical instructions

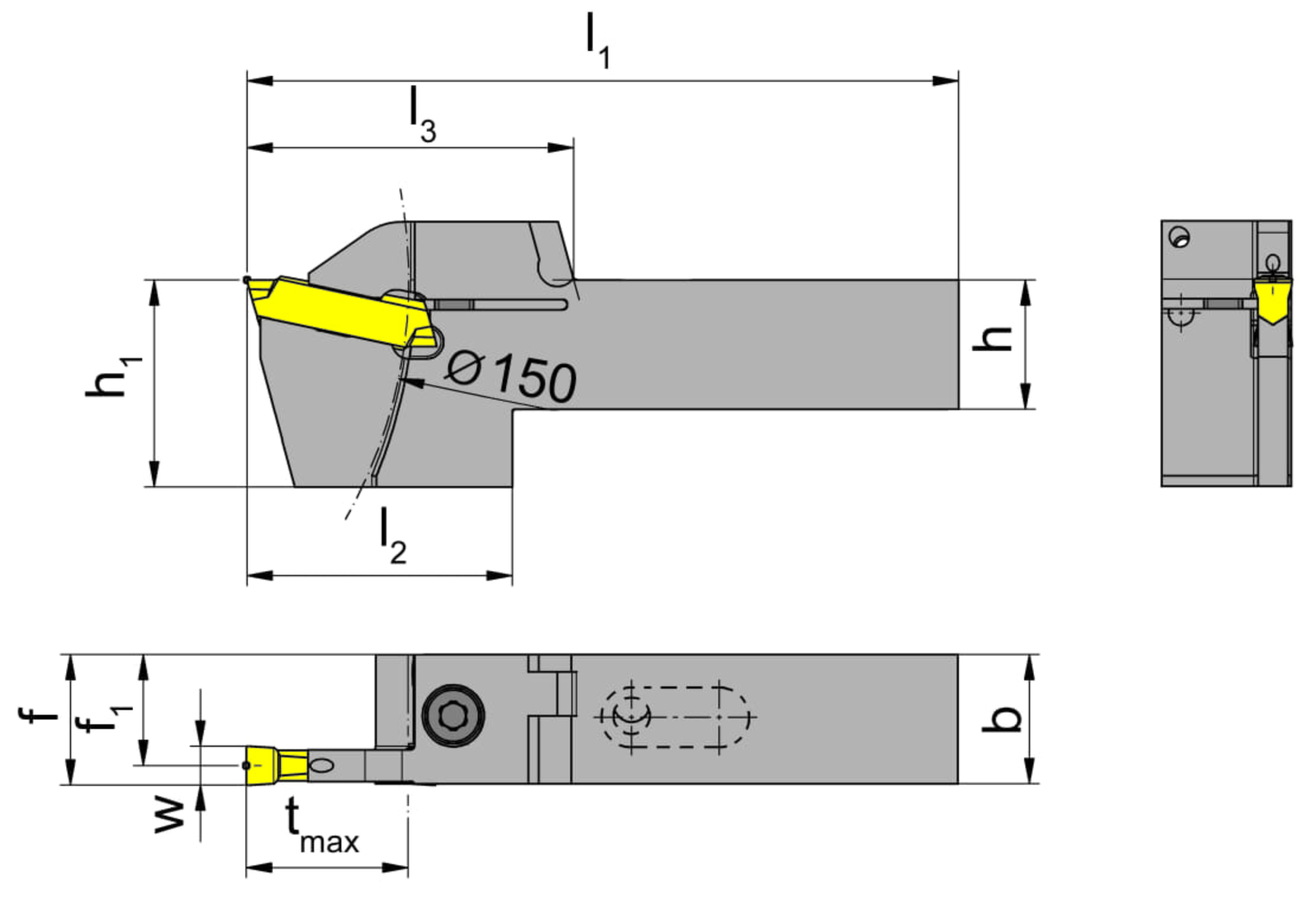

Head length (including cutting edge) (l2)
39
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
5
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
229050;229051
DIN_CCTWS
HORN-229050108N;HORN-229051108N
ISO_CCTWS
HORN229050108N$$$$$;HORN229051108N$$$$$
Head length top (including cutting edge) (l3)
50.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
25
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
123
mm
Adjustment dimension cutting center (f1)
22.2
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R2262525205IK_20210628_210526838.DXF | Download |
| R2262525205IK_20230114_004006812.STP | Download |
| Download all files | |
