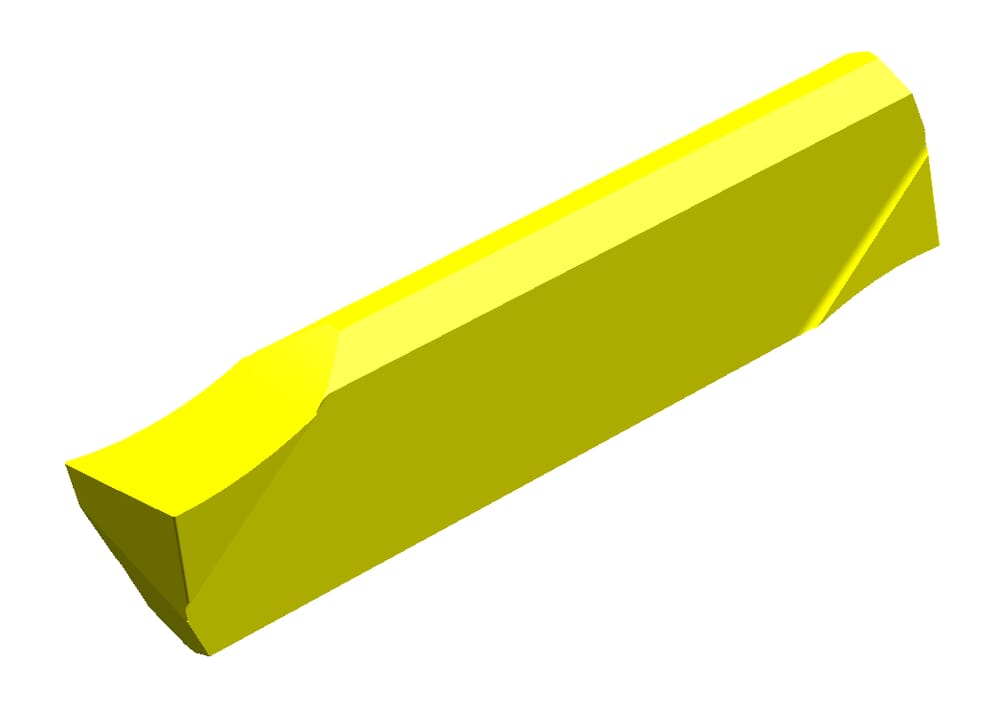

R264.1520.10 TN35
Inserts
Part number R264152010TN35
HORN Inserts R264.1520.10 TN35 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
15
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN264020058N$$$$$
DIN_SSC
HORN-264020058N
Katalog_SSC
26402
Plating seat size (Größe)
2
Width of groove (w)
2
mm
Corner radius (r)
0.05
mm
| Downloads | |
|---|---|
| R264152010_20211124_135516989.DXF | Download |
| R264152010_20240117_024947682.STP | Download |
| Download all files | |
