R356.2525.4.03.IK
Toolholder
Part number R3562525403IK

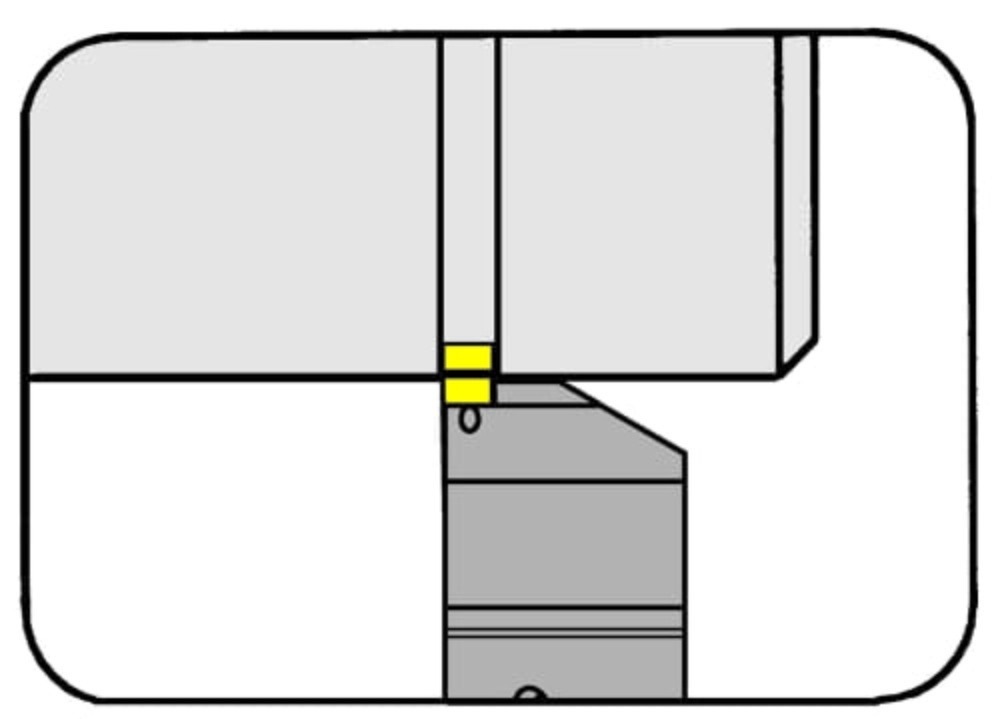

HORN Toolholder R356.2525.4.03.IK for Turning
Please note:Technical instructions

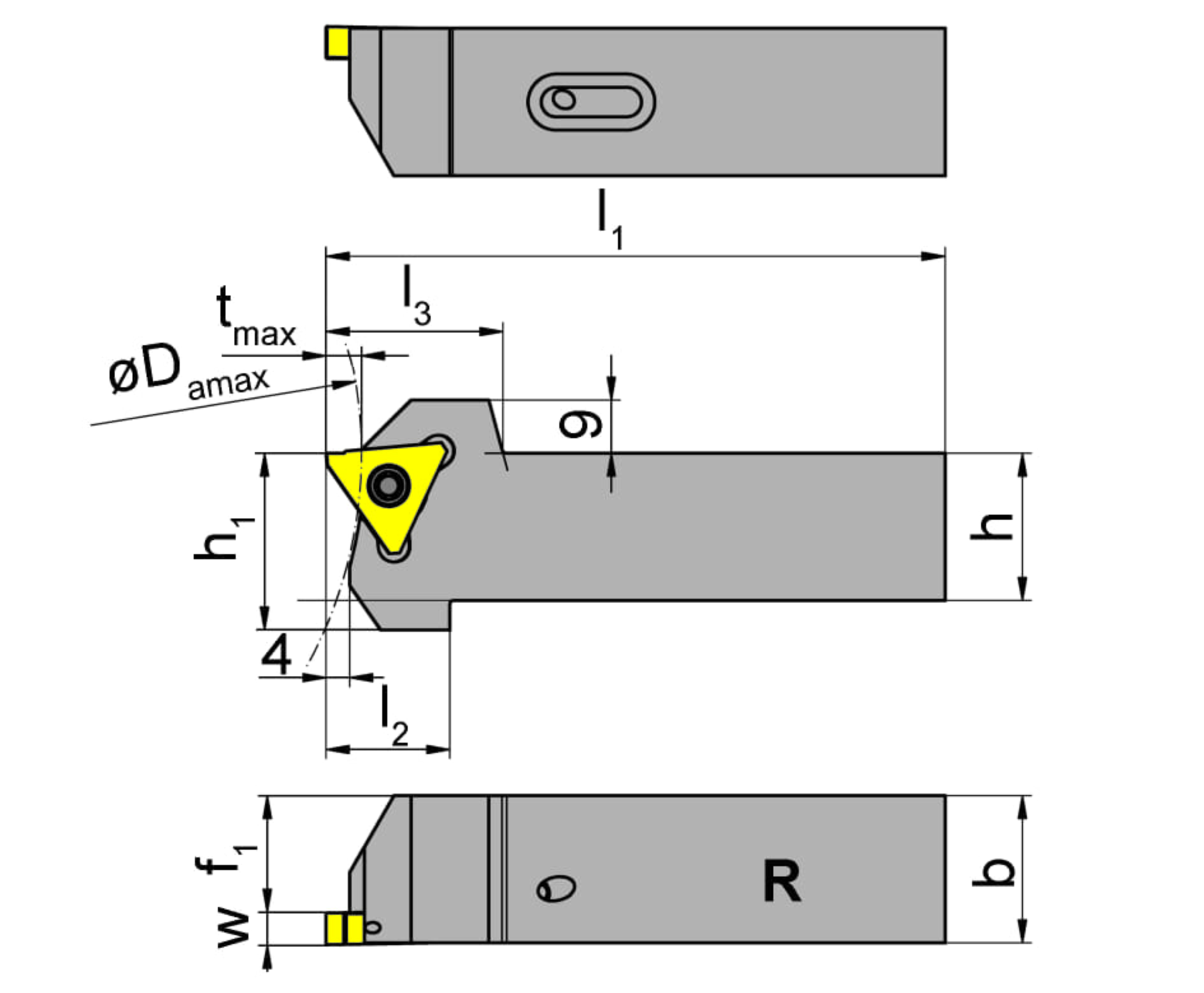

Head length top (including cutting edge) (l3)
30
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
31503R
DIN_CCTWS
HORN-31503051R
ISO_CCTWS
HORN31503$051R$$$$$
Adjustment dimension locating face insert (f1)
22
mm
Head length (including cutting edge) (l2)
21
mm
Peak height (h1)
30
mm
Maximum depth of groove (tmax)
6
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
105
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R3562525403IK.DXF | Download |
| R3562525403IK_20230113_164815160.STP | Download |
| Download all files | |
