R368.2608.08
Toolholders
Part number R368260808

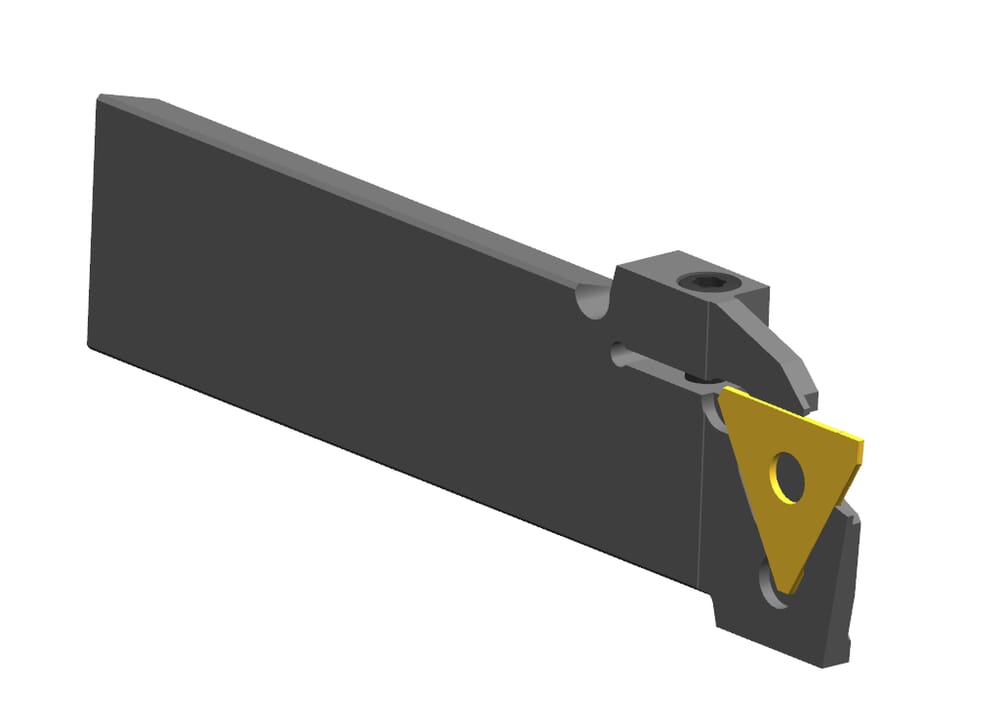

HORN Toolholders R368.2608.08 for Turning
Please note:Technical instructions
Peak height (h1)
21.4
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
PMU01C0260$$$$
DIN_CCTMS
PMU02600105
Katalog_CCTWS
31208N
DIN_CCTWS
HORN-31208000N
ISO_CCTWS
HORN-31208$000N$$$$$
Maximum insertion depth (tmax)
8
mm
Head height (h)
26
mm
Total length (including cutting insert) (l1)
110
mm
Adjustment dimension (f1)
1
mm
Width / thickness sword (b)
8
mm
| Downloads | |
|---|---|
| R368260808_20210628_223035999.DXF | Download |
| R368_2608_08_20171121_235203397.STP | Download |
| Download all files | |
