RB224.0040.1.K1.IK
base support
Part number RB22400401K1IK

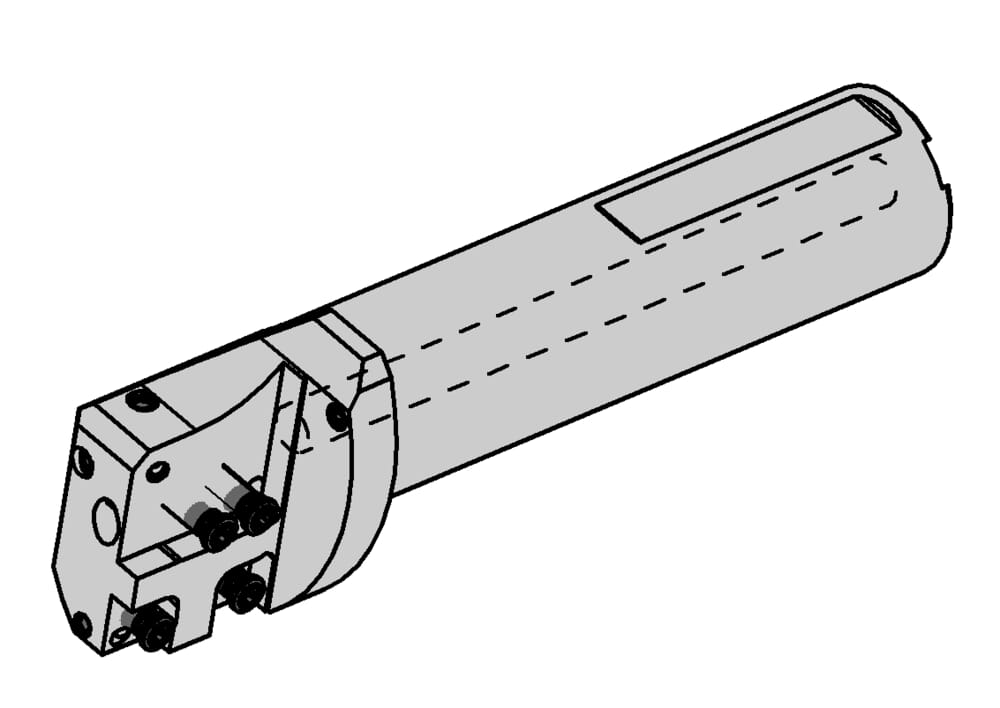

HORN base support RB224.0040.1.K1.IK for Turning
Please note:Technical instructions

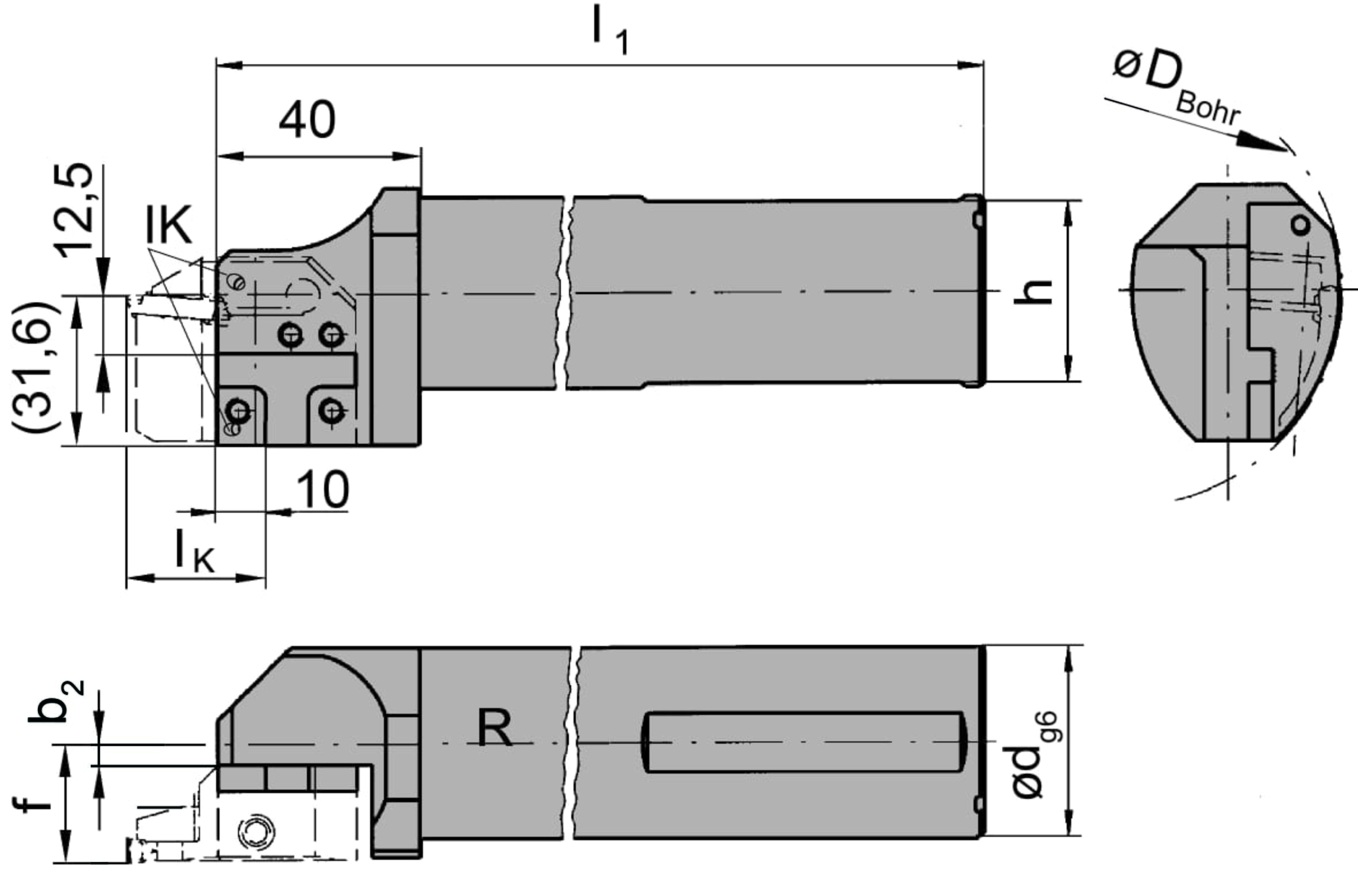

Dimension center to locating face cassette (b2)
4.41
mm
eclass-shortcut
21-18-10-90
ISO_CCTMS
ZYL23G4000$$$$
DIN_CCTMS
ZYL04002315
Katalog_CCTWS
220001
DIN_CCTWS
HORN-22000193;HORN-22000183
ISO_CCTWS
HORN22000193$$;HORN22000183$$
Adjustment dimension (formula) (f)
b2+f3
Shank, clamping diameter (d)
40
mm
Height clamping surface(s) (h)
38
mm
Total length (without cutting insert) (l1)
116
mm
Bore diameter (DBohr)
90
mm
| Downloads | |
|---|---|
| RB22400401K1IK.DXF | Download |
| RB22400401K1IK_20230116_142839495.STP | Download |
| Download all files | |
