RH100.2020.2.23.IK
Toolholder
Part number RH1002020223IK

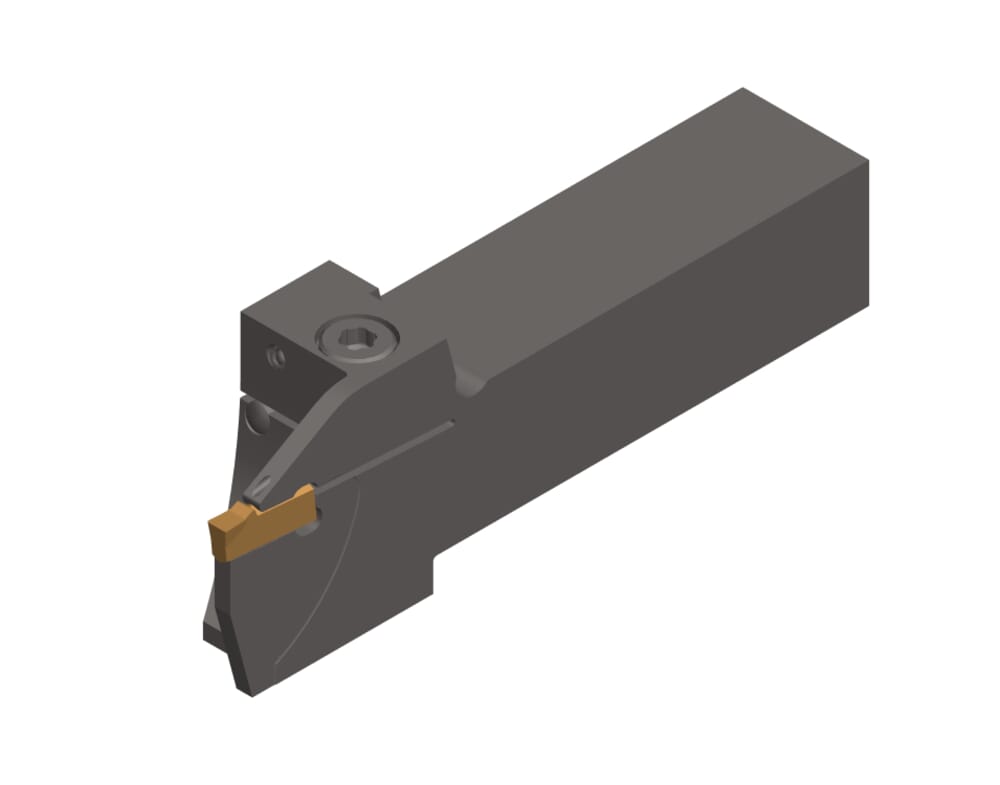

HORN Toolholder RH100.2020.2.23.IK for Turning
Please note:Technical instructions
Peak height (h1)
25
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length top (including cutting edge) (l3)
39
mm
Head length (including cutting edge) (l2)
33
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
21.5
mm
Shank height (h)
20
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
102
mm
Adjustment dimension cutting center (f1)
18.65
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH1002020223IK_20210627_042444792.DXF | Download |
| RH1002020223IK_20230116_140329658.STP | Download |
| Download all files | |
