RH100.2525.0.73.IK
Toolholder
Part number RH1002525073IK

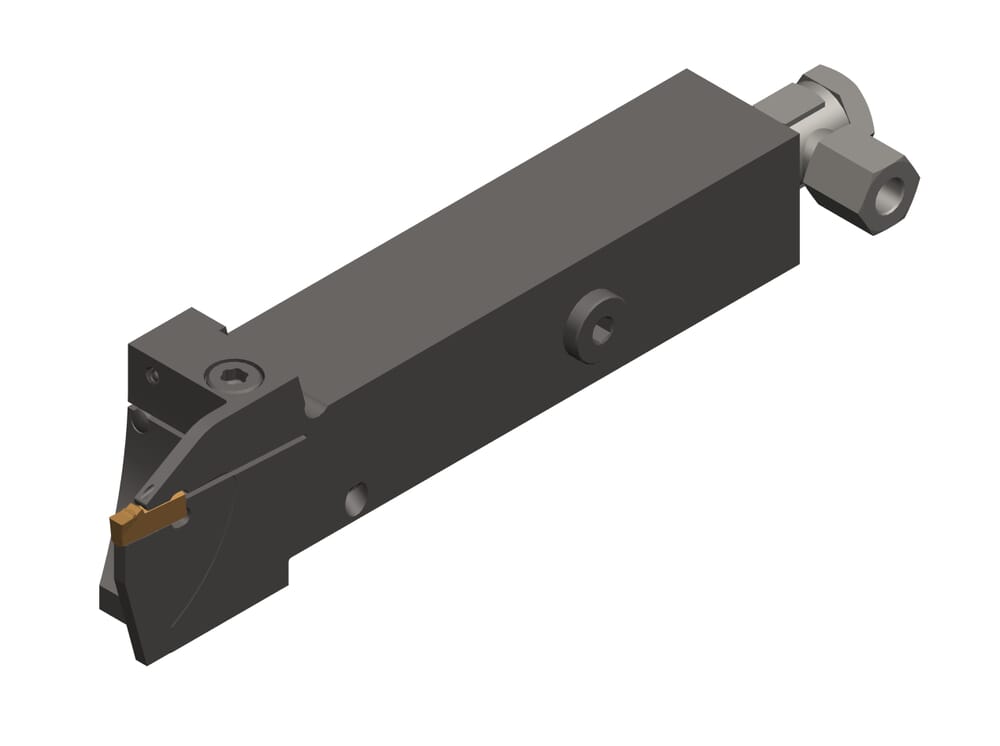

HORN Toolholder RH100.2525.0.73.IK for Turning
Please note:Technical instructions
Peak height (h1)
30
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length top (including cutting edge) (l3)
43
mm
Head length (including cutting edge) (l2)
37
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
50
mm
Maximum insertion depth (tmax)
25.5
mm
Shank height (h)
25
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
23.65
mm
Shank width (b)
25
mm
