RH100.2525.1.34.IK
Toolholder type H100
Part number RH1002525134IK

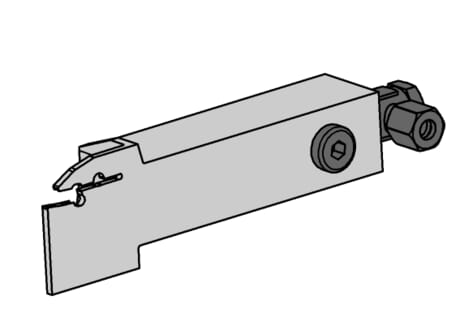

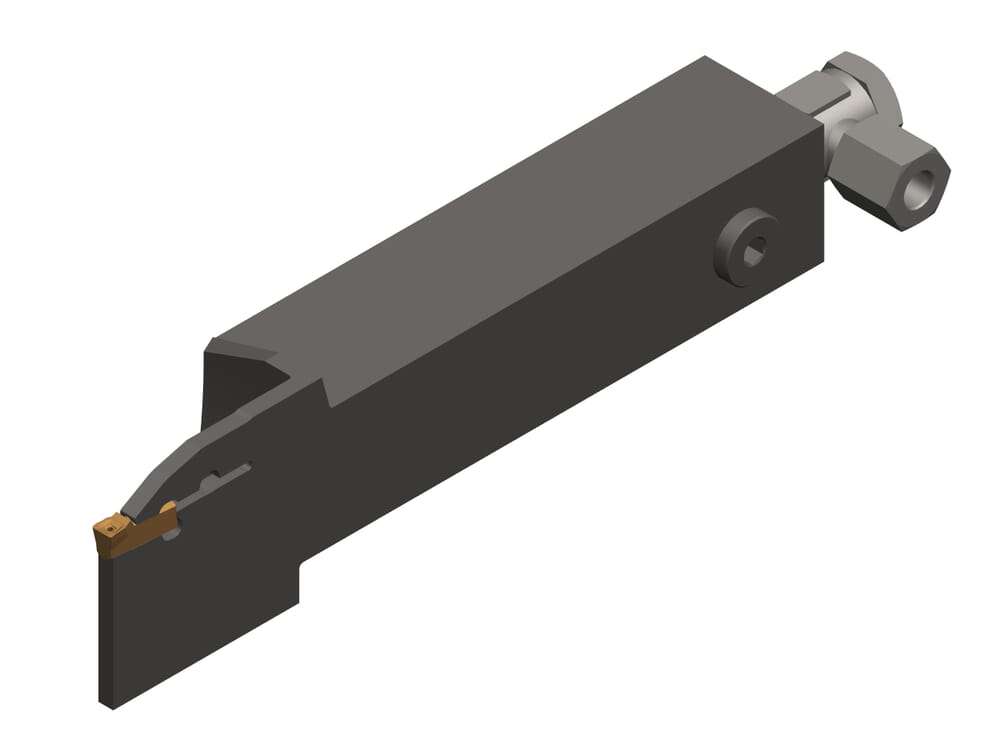

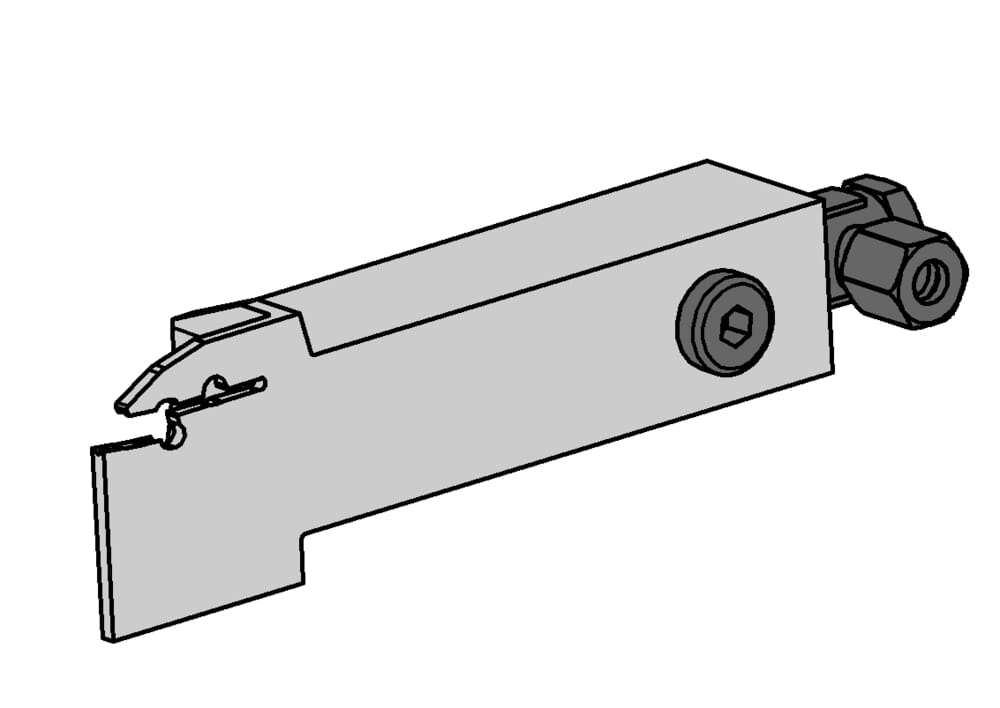

HORN Toolholder type H100 RH100.2525.1.34.IK for Turning
Please note:Technical instructions

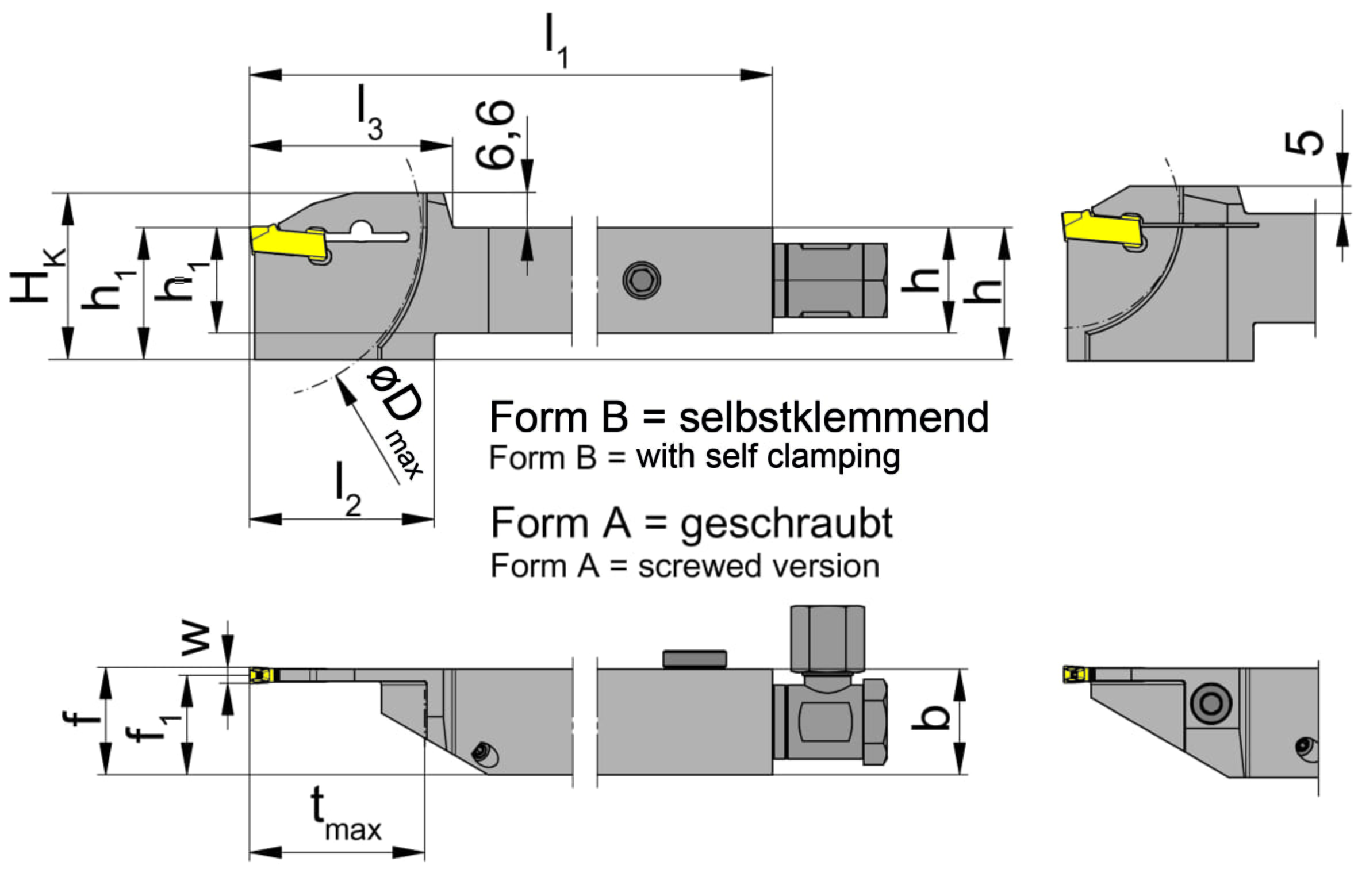

Peak height (h1)
32
mm
eclass-shortcut
21-18-10-04
Form (Form)
B
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
100049
DIN_CCTWS
HORN-100030059N
ISO_CCTWS
HORN100030059N$$$$$
Head length top (including cutting edge) (l3)
46.5
mm
Head length (including cutting edge) (l2)
40
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
81
mm
Maximum insertion depth (tmax)
41
mm
Head height (HK)
38.6
mm
Shank height (h)
25
mm
Size (Größe)
4
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
23.45
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| RH100252513.DXF | Download |
| RH1002525134IK_20230116_155024219.STP | Download |
| Download all files | |
