RH100.2525.2.24.IK
Toolholder
Part number RH1002525224IK

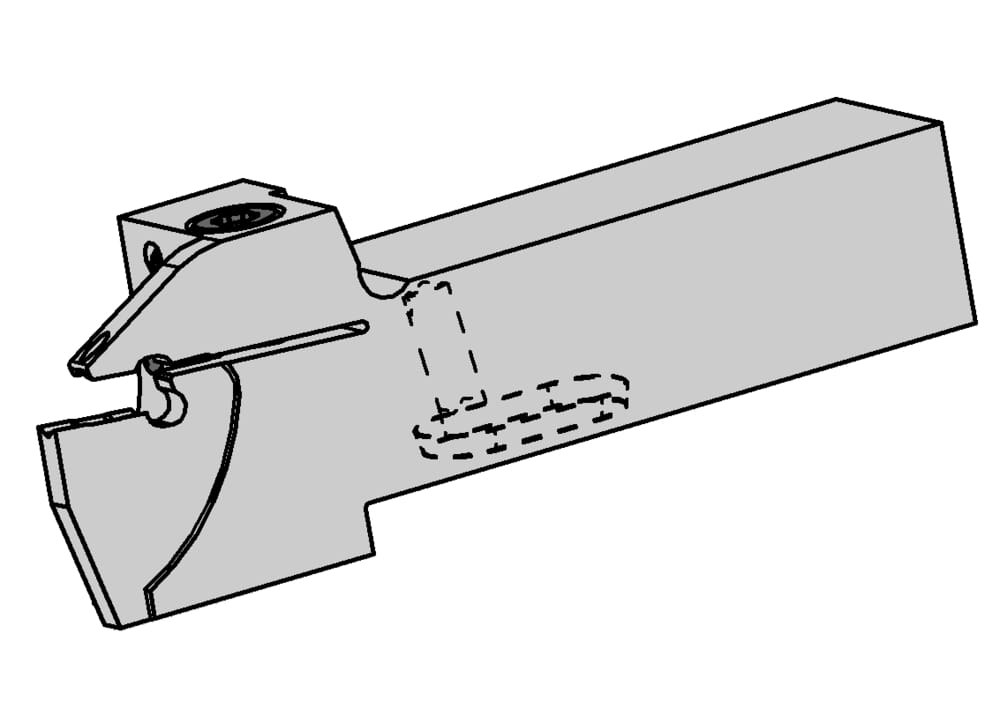

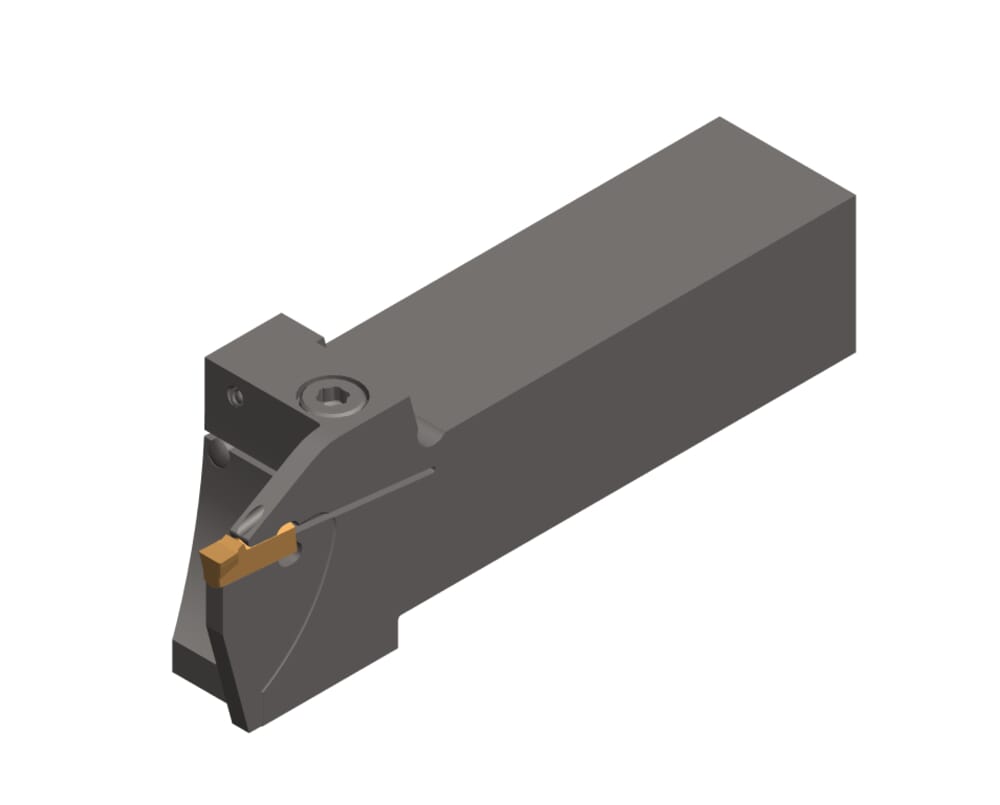

HORN Toolholder RH100.2525.2.24.IK for Turning
Please note:Technical instructions

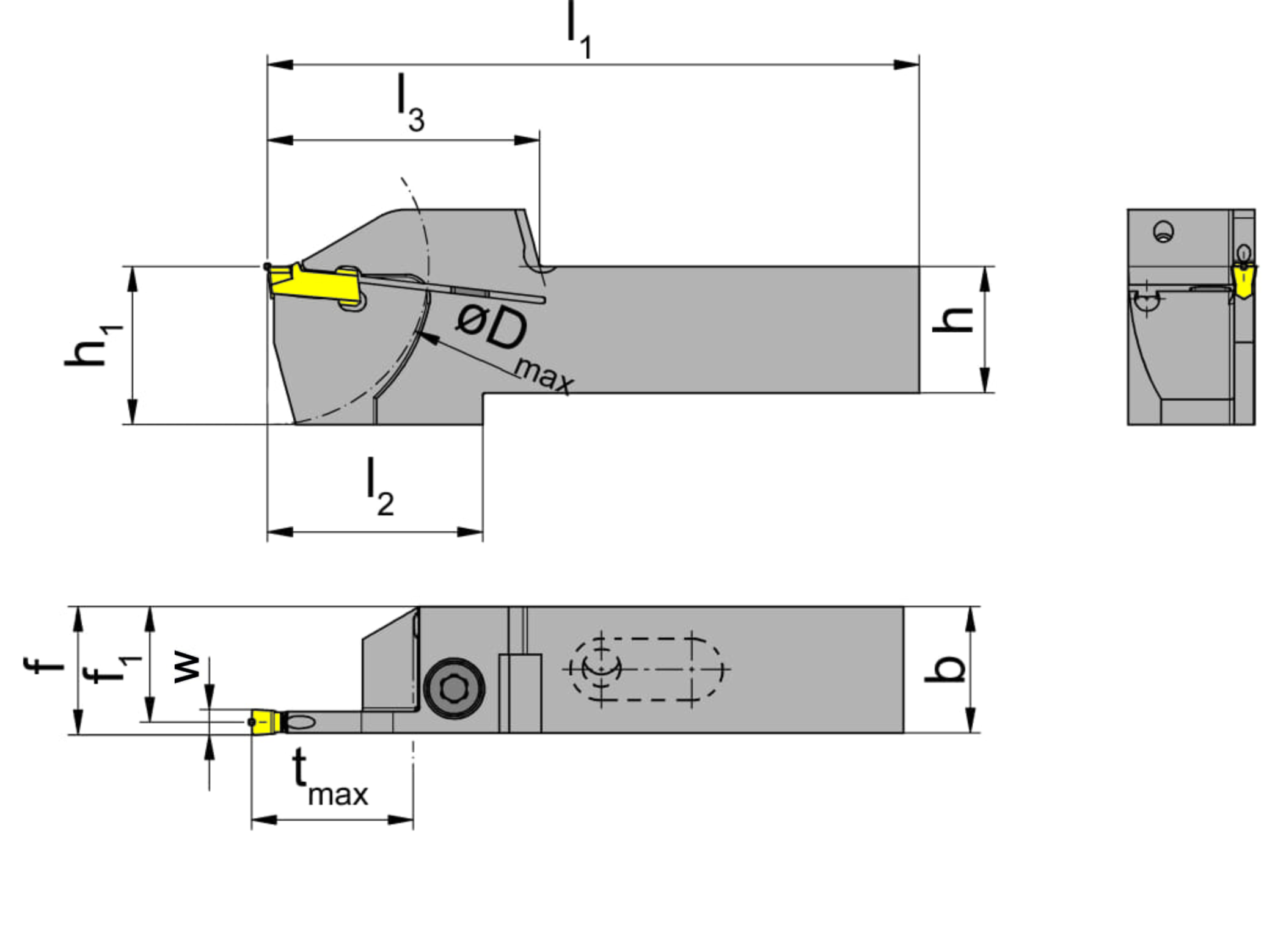

Peak height (h1)
30
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Head length top (including cutting edge) (l3)
39
mm
Head length (including cutting edge) (l2)
33
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
42
mm
Maximum insertion depth (tmax)
21.5
mm
Shank height (h)
25
mm
Size (Größe)
4
Total length (including cutting insert) (l1)
117
mm
Adjustment dimension cutting center (f1)
23.3
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| RH100252522.DXF | Download |
| RH1002525224IK_20230116_155146732.STP | Download |
| Download all files | |
