RH100.3208.32R
Toolholder
Part number RH100320832R

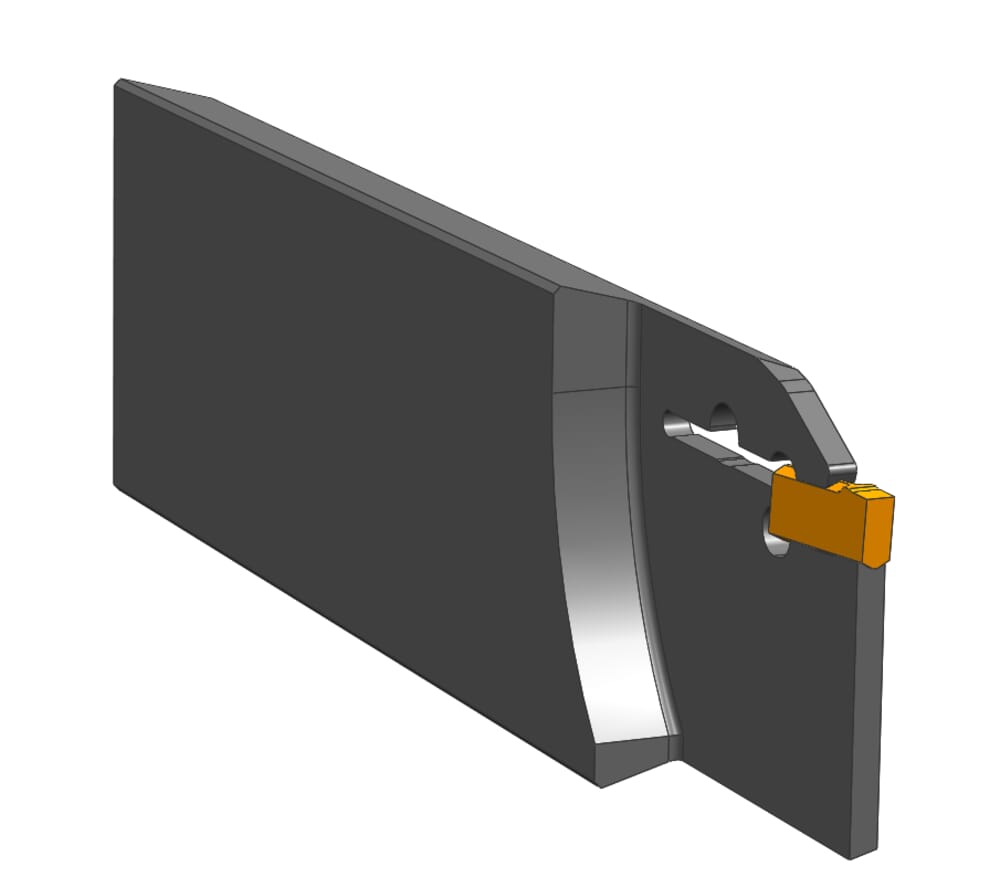

HORN Toolholder RH100.3208.32R for Turning
Please note:Technical instructions
Peak height (h1)
24.8
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
2
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
100028
DIN_CCTWS
HORN-100020058N
ISO_CCTWS
HORN100020058N$$$$$
Maximum workpiece diameter (Dmax)
68
mm
Maximum insertion depth (tmax)
34
mm
Head height (h)
32
mm
Total length (including cutting insert) (l1)
112
mm
Adjustment dimension (f1)
6.95
mm
Width / thickness sword (b)
7.9
mm
