RH100.3208.44
Toolholder
Part number RH100320844

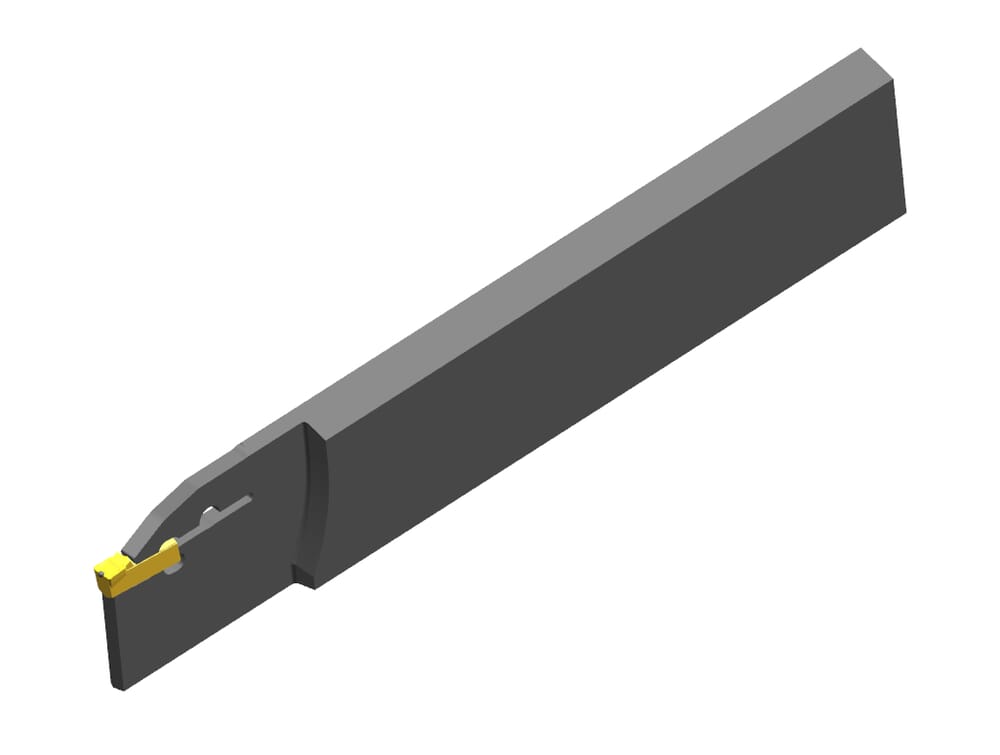

HORN Toolholder RH100.3208.44 for Turning
Please note:Technical instructions
Peak height (h1)
24.8
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
100048
DIN_CCTWS
HORN-100040058N
ISO_CCTWS
HORN100040058N$$$$$
Maximum workpiece diameter (Dmax)
80
mm
Maximum insertion depth (tmax)
41
mm
Head height (h)
32
mm
Total length (including cutting insert) (l1)
130
mm
Adjustment dimension (f1)
1.55
mm
Width / thickness sword (b)
7.9
mm
| Downloads | |
|---|---|
| RH100_3208_44.STP | Download |
| Download all files | |
