RH100.3208.73
Toolholder
Part number RH100320873

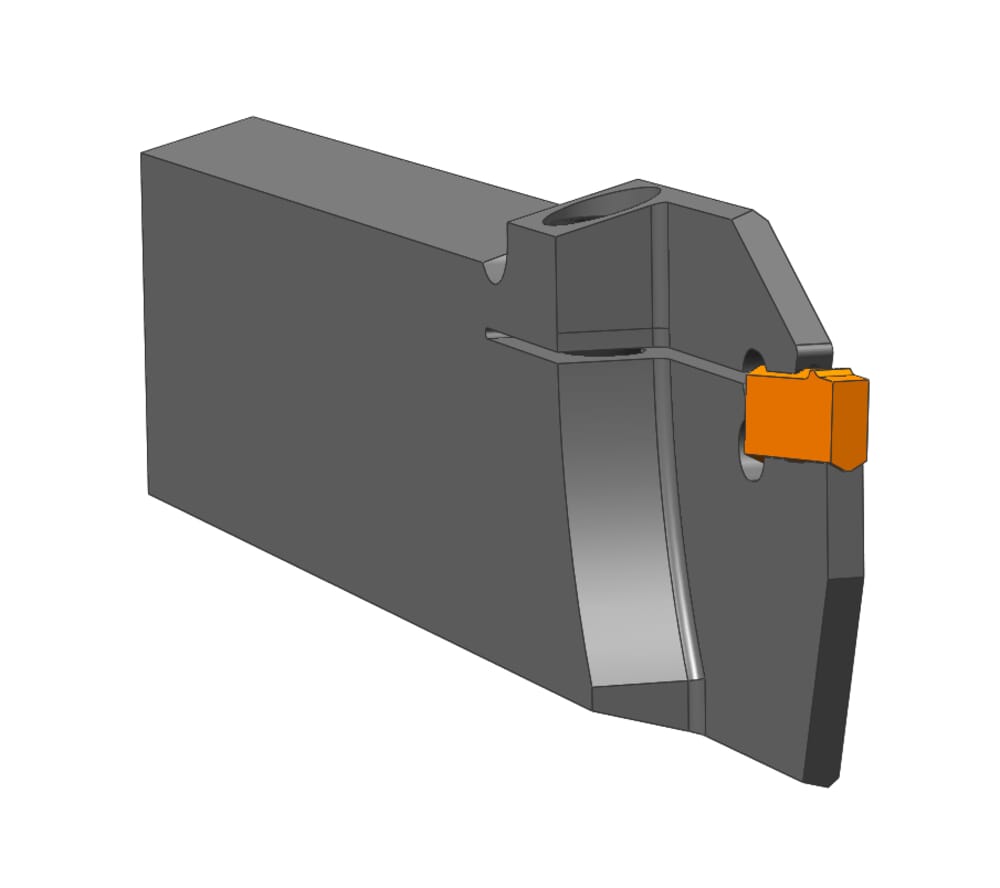

HORN Toolholder RH100.3208.73 for Turning
Please note:Technical instructions
Peak height (h1)
24.8
mm
eclass-shortcut
21-18-10-90
Plating seat size (Größe)
3
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length top (including cutting edge) (l3)
38.5
mm
Maximum workpiece diameter (Dmax)
52
mm
Maximum insertion depth (tmax)
26
mm
Head height (h)
32
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension (f1)
1.15
mm
Width / thickness sword (b)
8
mm
