S475.0223.10.04 RC4G

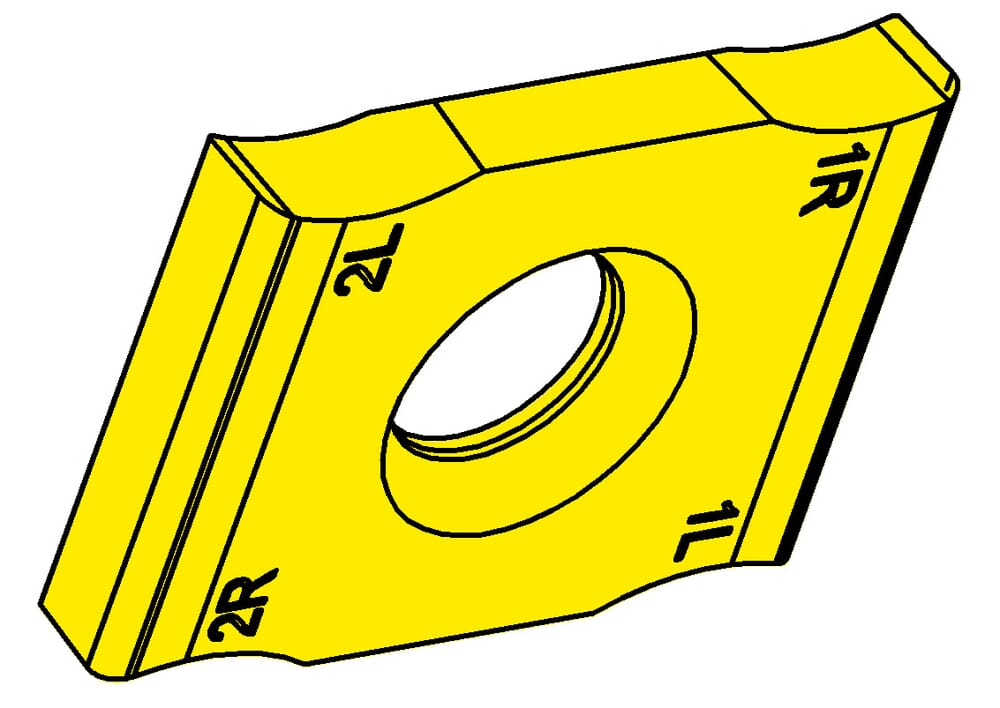

Indexable insert
Part number S47502231004RC4G
HORN Indexable insert S475.0223.10.04 RC4G for Milling
Please note:Technical instructions
ISO_SSC
HORN475016$$$N$$$$$
Katalog_SSC
475022N
Width of groove (bs)
2.21
mm
Cutting insert thickness (Plant to cutting edge) (s)
2.23
mm
Corner radius (r)
0.4
mm
| Downloads | |
|---|---|
| S475_0223_10_04_RC4G-ISO.XML | Download |
| S475_0223_10_04_RC4G-DXF.DXF | Download |
| S475_0223_10_04_RC4G-STP.STP | Download |
| S475_0223_10_04_RC4G-DIN.XML | Download |
| Download all files | |
