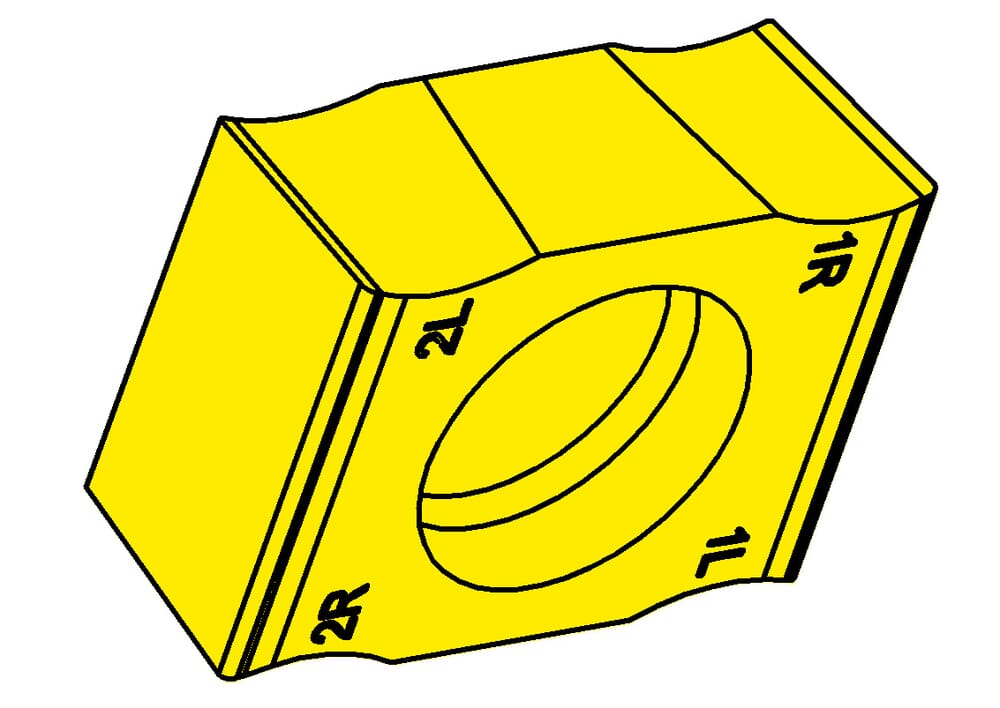

S475.0327.10.15 RC4G
Indexable insert
Part number S47503271015RC4G
HORN Indexable insert S475.0327.10.15 RC4G for Milling
Please note:Technical instructions
ISO_SSC
HORN475032$$$N$$$$$
Katalog_SSC
475032N
Width of groove (bs)
3.27
mm
Cutting insert thickness (Plant to cutting edge) (s)
3.27
mm
Corner radius (r)
1.5
mm
| Downloads | |
|---|---|
| S475_0327_10_15_RC4G-ISO.XML | Download |
| S475_0327_10_15_RC4G-STP.STP | Download |
| S475_0327_10_15_RC4G-DIN.XML | Download |
| S475_0327_10_15_RC4G-DXF.DXF | Download |
| Download all files | |
