S475.0435.10.05 RC4G
Indexable insert
Part number S47504351005RC4G

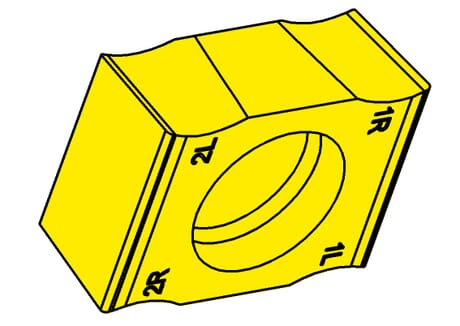

HORN Indexable insert S475.0435.10.05 RC4G for Milling
Please note:Technical instructions
ISO_SSC
HORN4750437$$$N$$$$$
Katalog_SSC
475043N
Width of groove (bs)
4.32
mm
Cutting insert thickness (Plant to cutting edge) (s)
4.35
mm
Corner radius (r)
0.5
mm
| Downloads | |
|---|---|
| S475_0435_10_05_RC4G-ISO.XML | Download |
| S475_0435_10_05_RC4G-DXF.DXF | Download |
| S475_0435_10_05_RC4G-STP.STP | Download |
| S475_0435_10_05_RC4G-DIN.XML | Download |
| Download all files | |
