S475.0439.10.20 RC4G

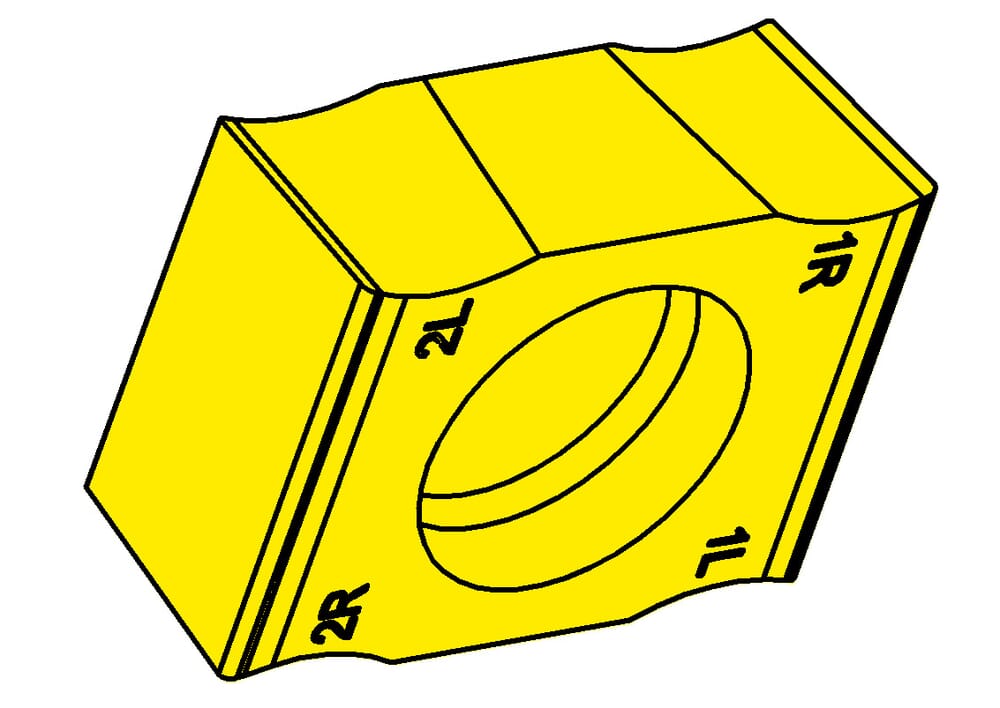

Indexable insert
Part number S47504391020RC4G
HORN Indexable insert S475.0439.10.20 RC4G for Milling
Please note:Technical instructions
ISO_SSC
HORN4750437$$$N$$$$$
Katalog_SSC
475043N
Width of groove (bs)
4.39
mm
Cutting insert thickness (Plant to cutting edge) (s)
4.39
mm
Corner radius (r)
2
mm
| Downloads | |
|---|---|
| S475_0439_10_20_RC4G-ISO.XML | Download |
| S475_0439_10_20_RC4G-DXF.DXF | Download |
| S475_0439_10_20_RC4G-STP.STP | Download |
| S475_0439_10_20_RC4G-DIN.XML | Download |
| Download all files | |
