DCF.3.75.4545.6.08 MG12
Endmill
Part number DCF3754545608MG12

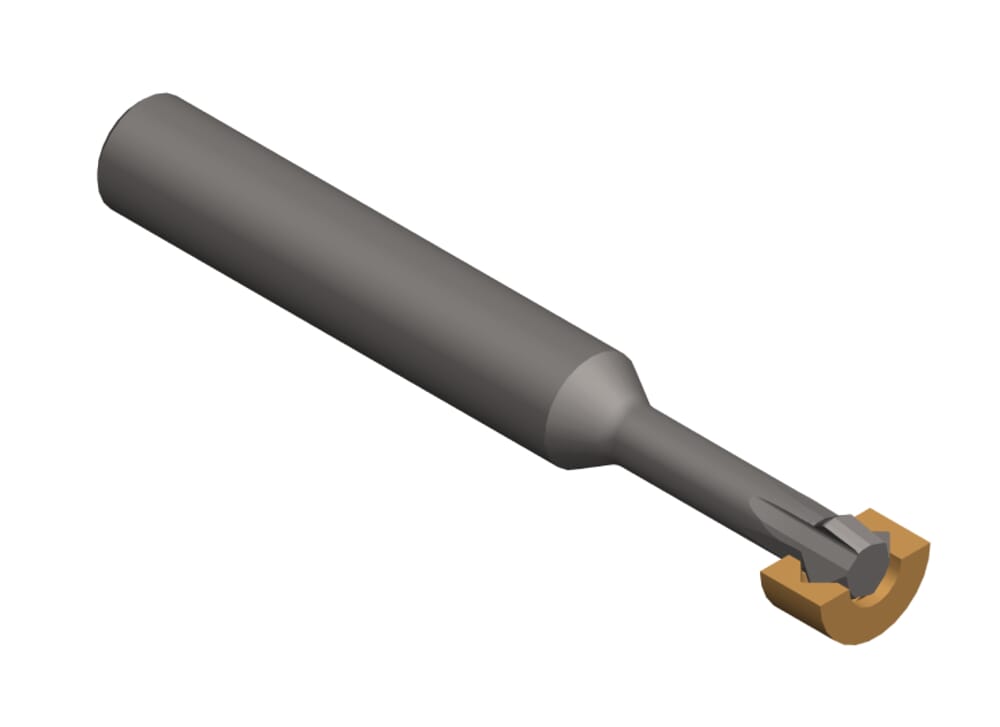

HORN Endmill DCF.3.75.4545.6.08 MG12 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Chamfer (Fase)
45
°
Total length (l1)
63
mm
Maximum milling depth/ depth of groove (tmax)
1.5
mm
Neck diameter (d3)
4.1
mm
Width of groove (w)
0.2
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
7.5
mm
Neck length (l3)
20
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCF3754545608_20210625_214005203.DXF | Download |
| DCF_3_75_4545_6_08_20171121_193735168.STP | Download |
| Download all files | |
