DCG.3.60.1024.3.06 AN25
Endmill
Part number DCG3601024306AN25

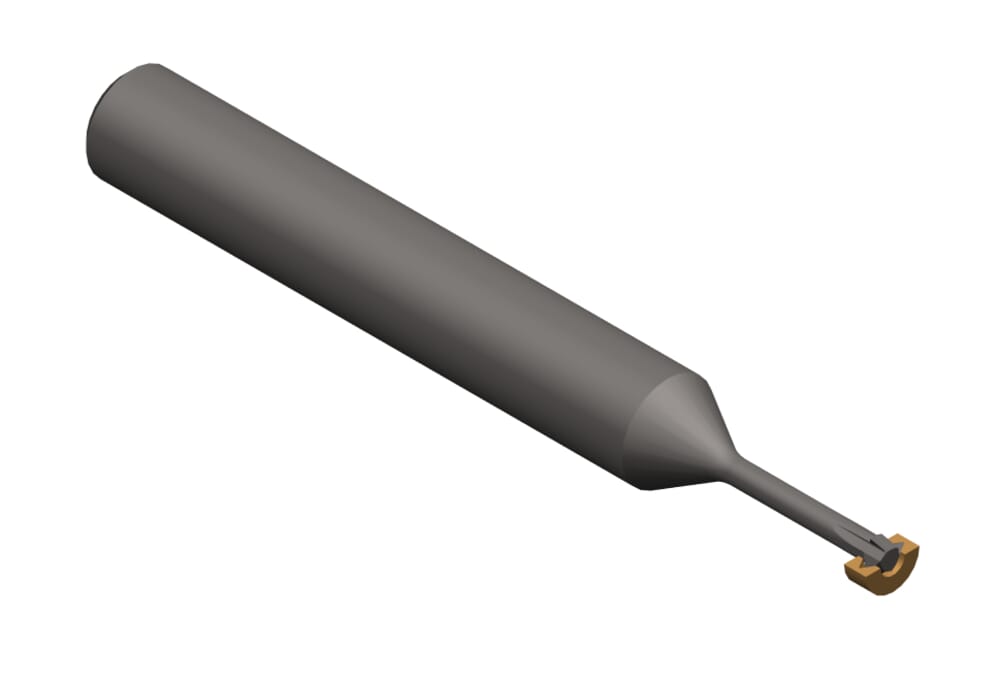

HORN Endmill DCG.3.60.1024.3.06 AN25 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-10
Pitch (P)
1.058
mm
Smallest bore diameter (Dmin)
3.6
mm
Thread (Gewinde)
#10 - 24UNC #12 - 24UNC
Total length (l1)
50
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2.9
mm
Neck length (l3)
10
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG3601024306_20210625_211148929.DXF | Download |
| DCG3601024306_20210630_113321019.STP | Download |
| Download all files | |
