DCG.3.60.640.2.04 AN25

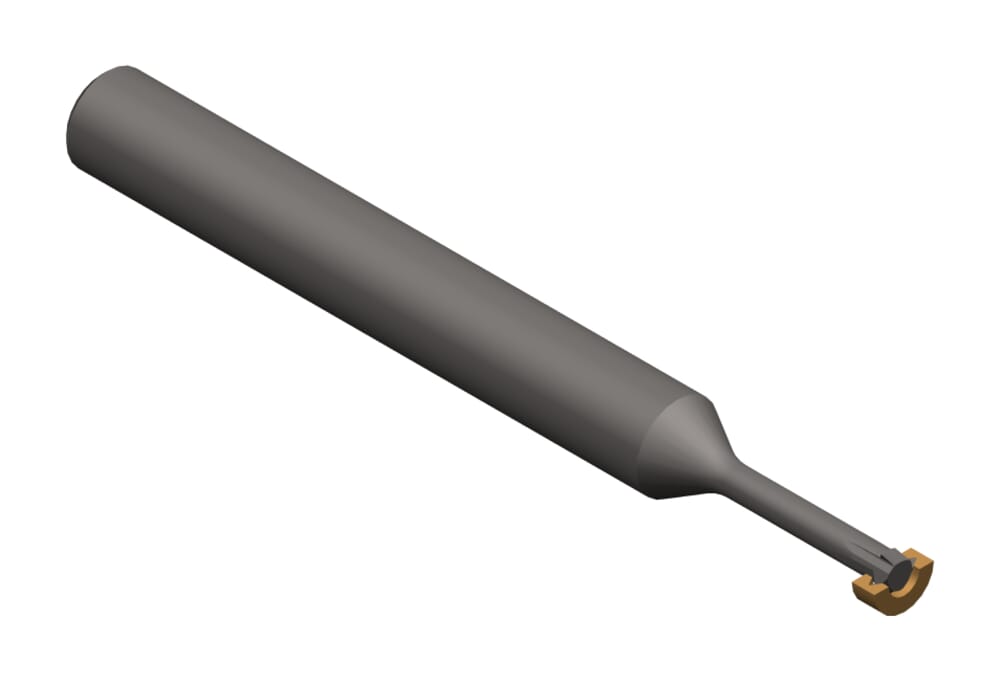

DC threadmill - UN - #6-40 UNF

Part number DCG360640204AN25

HORN DC threadmill - UN - #6-40 UNF DCG.3.60.640.2.04 AN25 for Milling

eclass-shortcut

21-18-06-10

Pitch (P)

0.635 mm

Smallest bore diameter (Dmin)

2.8 mm

Thread (Gewinde)

#6 - 40 UNF

Total length (l1)

39 mm

ISO_CCTMS

ZYL01F4000h$06

DIN_CCTMS

ZYL00400105

Shank, clamping length (l4)

22 mm

Number of teeth (Z)

3 St.

Cutting diameter (d1)

2.3 mm

Neck length (l3)

8 mm

Shank diameter (d2)

4 mm
