DCG.3.M3.025.2.1.04 MG12
Endmill
Part number DCG3M30252104MG12

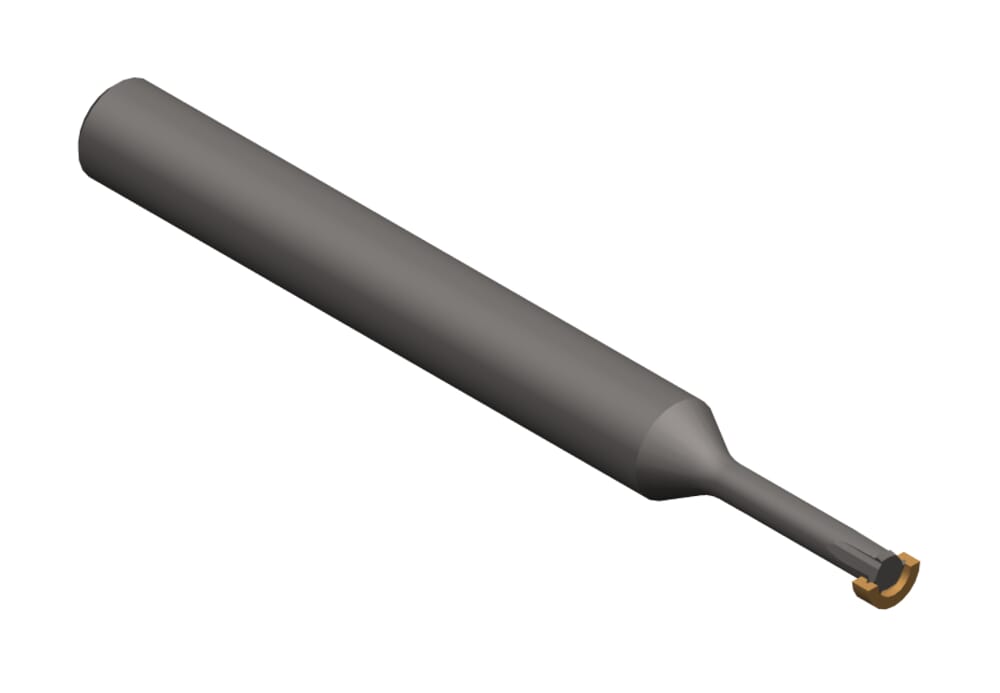

HORN Endmill DCG.3.M3.025.2.1.04 MG12 for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-10
Maximum pitch (Pmax)
0.25
mm
Pitch (P)
0.25
mm
Smallest bore diameter (Dmin)
2.4
mm
Thread (Gewinde)
M3
Total length (l1)
39
mm
Neck diameter (d3)
1.45
mm
ISO_CCTMS
ZYL01G1600h$06
Shank, clamping length (l4)
22
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2
mm
Neck length (l3)
8
mm
Shank diameter (d2)
4
mm
| Downloads | |
|---|---|
| DCG3M30252104_20210625_211218768.DXF | Download |
| DCG3M30252104_20230113_010705746.STP | Download |
| Download all files | |
