DCG.3.M5.050.3.1.06 AN25
DC threadmill - Metric ISO - M5 partial profile
Part number DCG3M50503106AN25

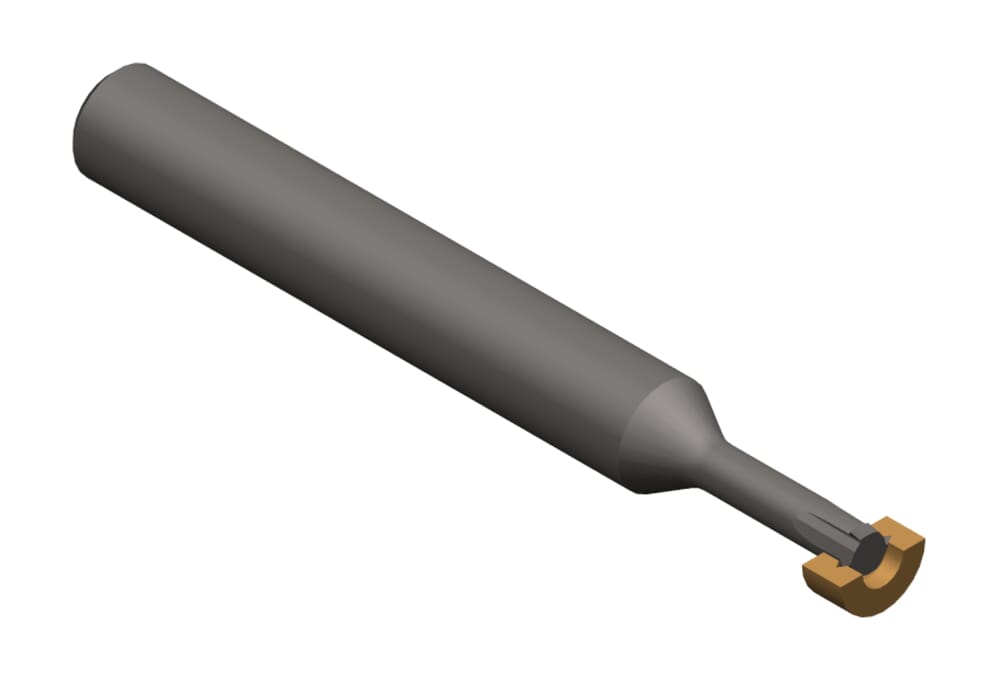

HORN DC threadmill - Metric ISO - M5 partial profile DCG.3.M5.050.3.1.06 AN25 for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-10
Maximum pitch (Pmax)
0.75
mm
Pitch (P)
0.5
mm
Smallest bore diameter (Dmin)
4.2
mm
Thread (Gewinde)
M5
Total length (l1)
50
mm
Neck diameter (d3)
2.5
mm
ISO_CCTMS
ZYL01F6000h$06
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
3.6
mm
Neck length (l3)
10
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG3M50503106_20210625_211649008.DXF | Download |
| DCG3M50503106_20230113_010913712.STP | Download |
| Download all files | |
