DCG.4.55.G38.8.10 MG12
Endmill
Part number DCG455G38810MG12

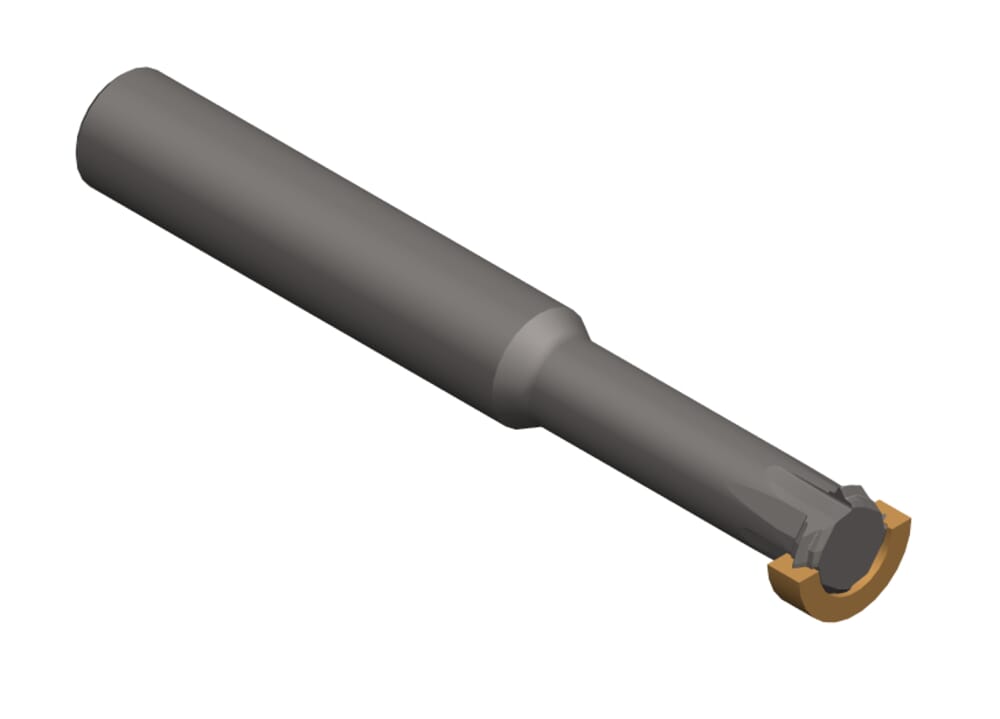

HORN Endmill DCG.4.55.G38.8.10 MG12 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-10
Pitch (P)
1.34
mm
Smallest bore diameter (Dmin)
14.9
mm
Thread (Gewinde)
G 3/8''
Total length (l1)
77
mm
Neck diameter (d3)
7.4
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
9.8
mm
Neck length (l3)
30
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DCG455G38810_20210626_155109797.DXF | Download |
| DCG455G38810_20230112_181121190.STP | Download |
| Download all files | |
