DCG.4.M10.100.6.2.08 MG12
Endmill
Part number DCG4M101006208MG12

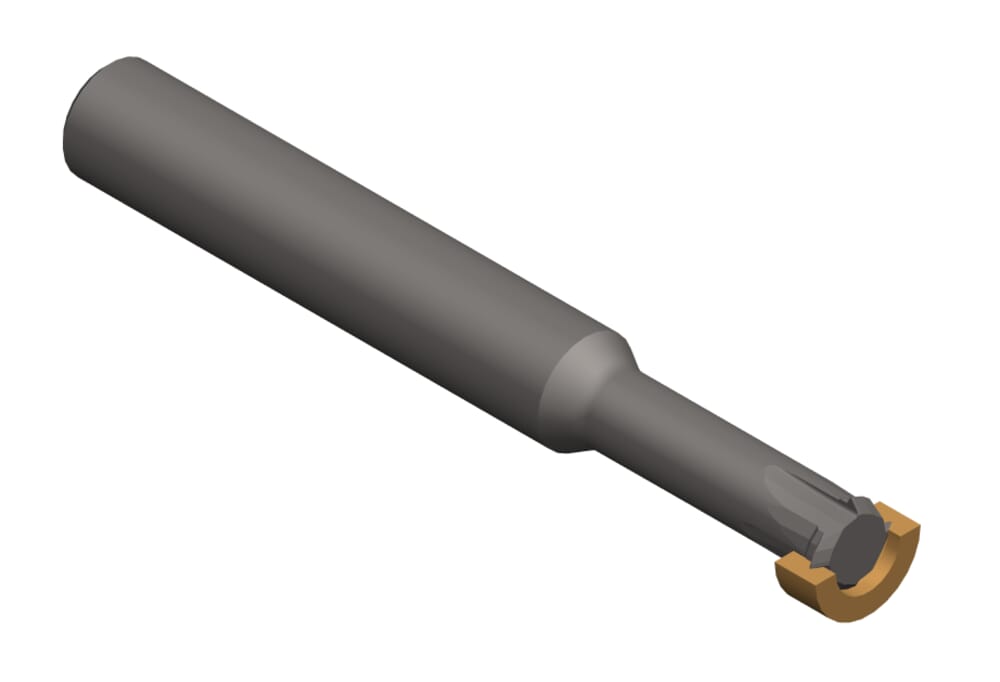

HORN Endmill DCG.4.M10.100.6.2.08 MG12 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-10
Pitch (P)
1
mm
Smallest bore diameter (Dmin)
8
mm
Thread (Gewinde)
M10
Total length (l1)
63
mm
Neck diameter (d3)
5.4
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
6.8
mm
Neck length (l3)
20
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCG4M101006208_20210625_213027895.DXF | Download |
| DCG_4_M10_100_6_2_08_20171121_203928540.STP | Download |
| Download all files | |
