DCG.4.M12.125.8.2.10 MG12

Endmill

Part number DCG4M121258210MG12

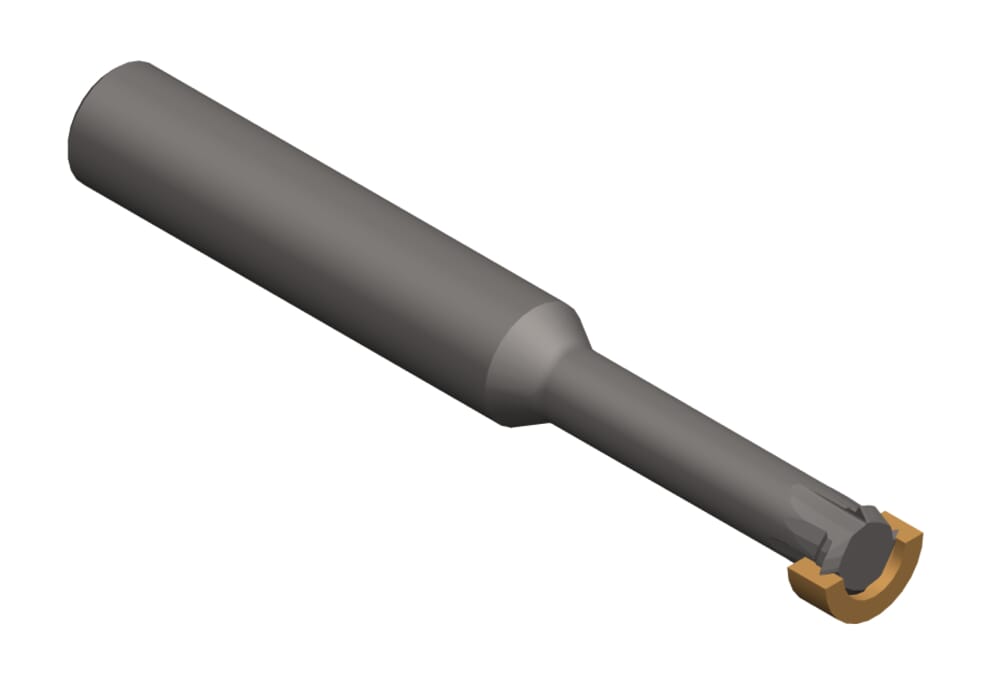

HORN Endmill DCG.4.M12.125.8.2.10 MG12 for Milling

eclass-shortcut

21-18-06-10

Pitch (P)

1.25 mm

Smallest bore diameter (Dmin)

10 mm

Thread (Gewinde)

M12

Total length (l1)

77 mm

Neck diameter (d3)

6.1 mm

ISO_CCTMS

ZYL01G1600h$06

DIN_CCTMS

ZYL01600115

Shank, clamping length (l4)

40 mm

Number of teeth (Z)

4 St.

Cutting diameter (d1)

8 mm

Neck length (l3)

30 mm

Shank diameter (d2)

10 mm
