DCG.4.M6.075.5.2.06 AN25
Endmill
Part number DCG4M60755206AN25

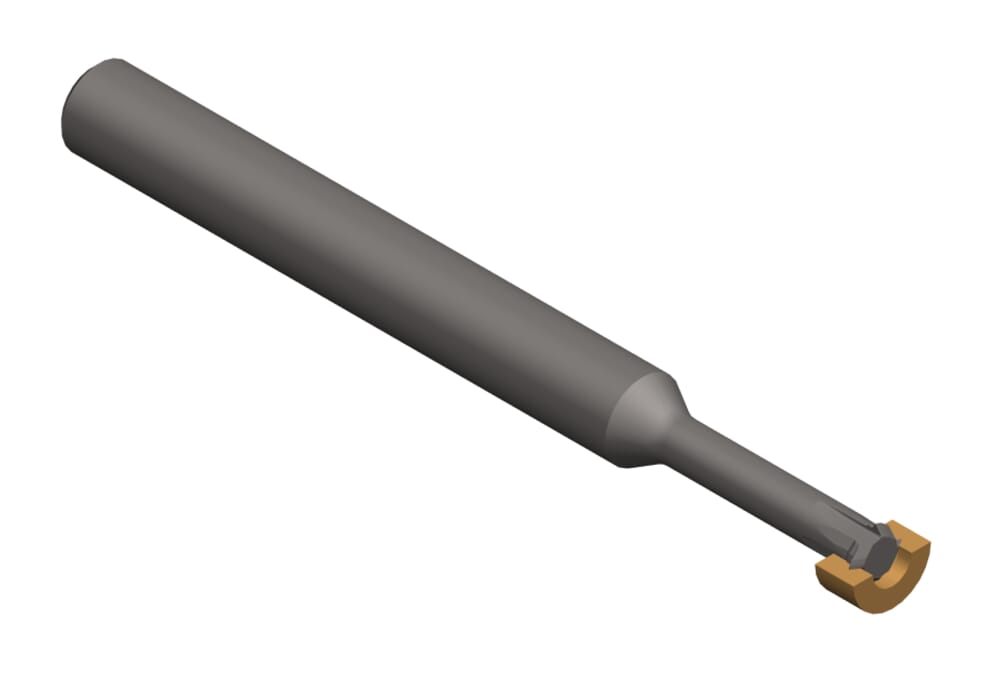

HORN Endmill DCG.4.M6.075.5.2.06 AN25 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-10
Pitch (P)
0.75
mm
Smallest bore diameter (Dmin)
5
mm
Thread (Gewinde)
M6
Total length (l1)
63
mm
Neck diameter (d3)
3.1
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
4.2
mm
Neck length (l3)
16
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG4M60755206_20210625_215959376.DXF | Download |
| DCG4M60755206_20240116_233543089.STP | Download |
| Download all files | |
