DCG.4.M8.125.6.1.08 MG12
Endmill
Part number DCG4M81256108MG12

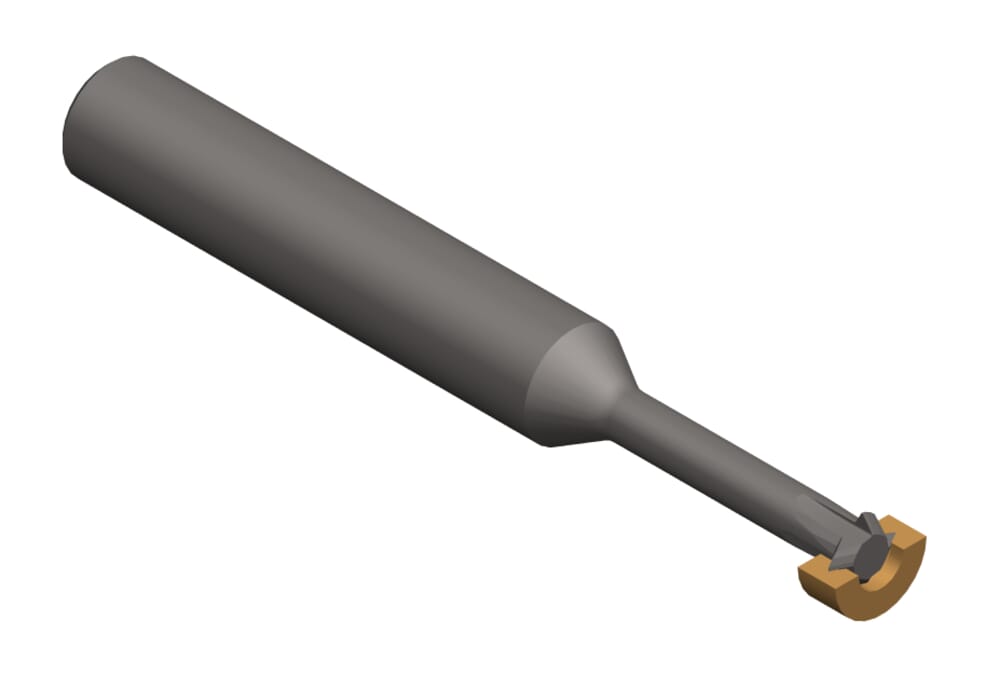

HORN Endmill DCG.4.M8.125.6.1.08 MG12 for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-10
Maximum pitch (Pmax)
1.5
mm
Pitch (P)
1.25
mm
Smallest bore diameter (Dmin)
6.5
mm
Thread (Gewinde)
M8-M10
Total length (l1)
63
mm
Neck diameter (d3)
3.4
mm
ISO_CCTMS
ZYL01G1600h$06
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
5.5
mm
Neck length (l3)
20
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCG4M81256108_20210625_212729421.DXF | Download |
| DCG4M81256108_20230116_225004684.STP | Download |
| Download all files | |
