jetzt nicht mehr verwenden

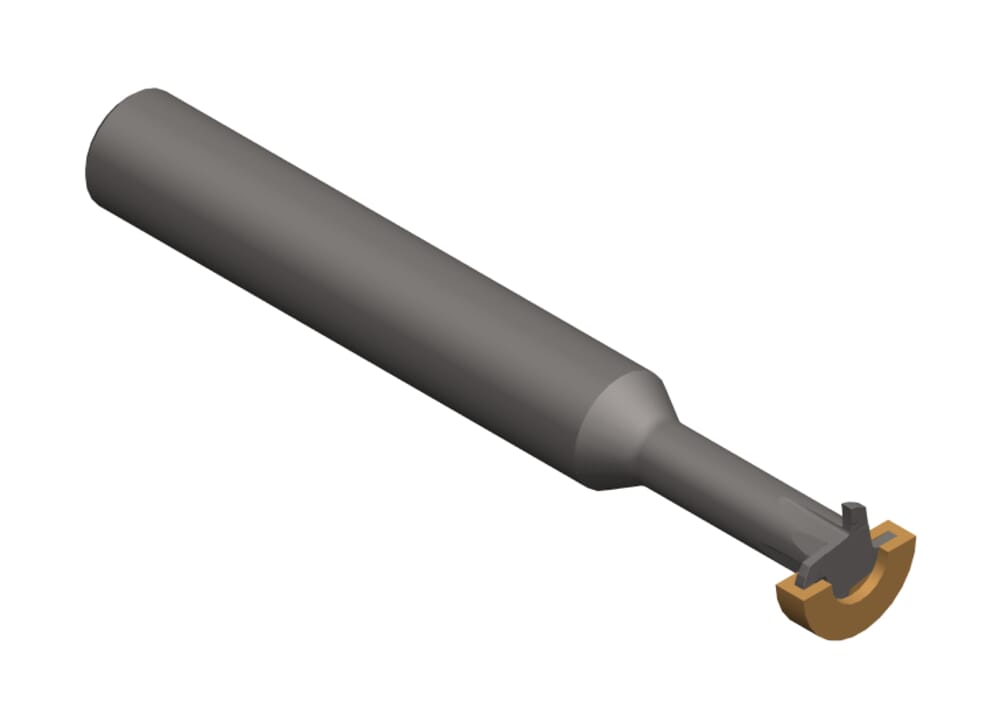

Endmill
Part number DCN41001000610MG12
HORN Endmill jetzt nicht mehr verwenden for Milling
Please note:Technical instructions
Neck diameter (d3)
5.5
mm
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Maximum milling depth/ depth of groove (tmax)
2
mm
Shank diameter (d2)
10
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
Shank, clamping length (l4)
50
mm
Width of groove (w)
1
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
20
mm
| Downloads | |
|---|---|
| DCN41001000610_20210625_221830112.DXF | Download |
| DCN41001000610_20230112_225646915.STP | Download |
| Download all files | |
