DCN.4.80.15.15.3.08 AN25

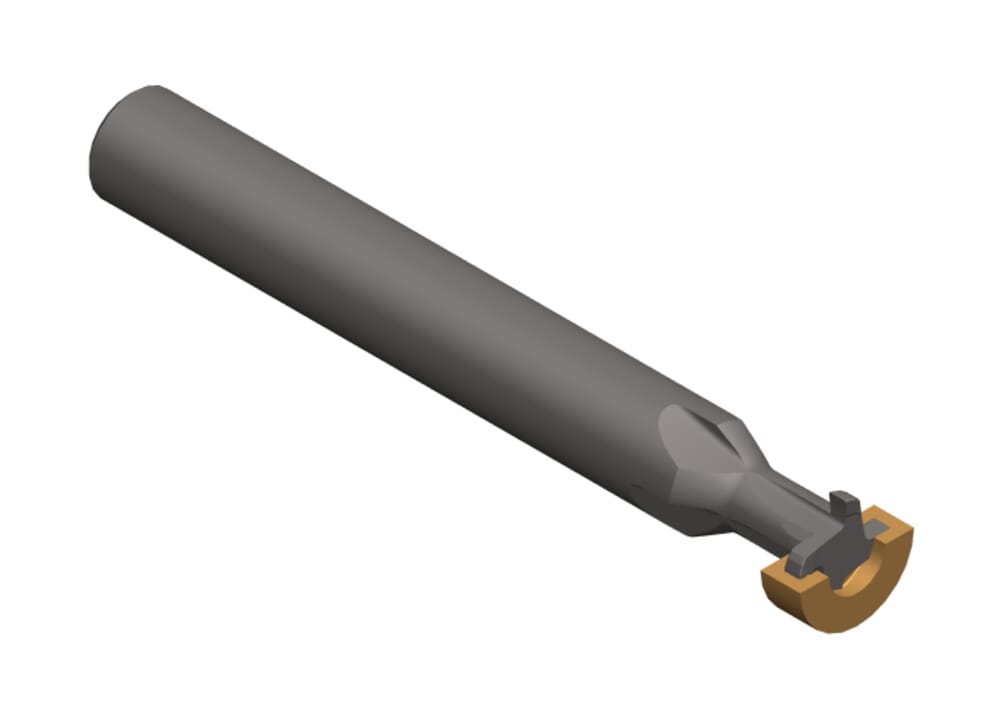

DC groove mill cutter
Part number DCN4801515308AN25
HORN DC groove mill cutter DCN.4.80.15.15.3.08 AN25 for Milling
Please note:Technical instructions
Shank, clamping length (l4)
40
mm
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Corner radius (r)
0.15
mm
Maximum milling depth/ depth of groove (tmax)
1.5
mm
Neck diameter (d3)
4.6
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
Width of groove (w)
1.5
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
8
mm
Shank diameter (d2)
8
mm
