B109.0025.01
Toolholder
Part number B109002501

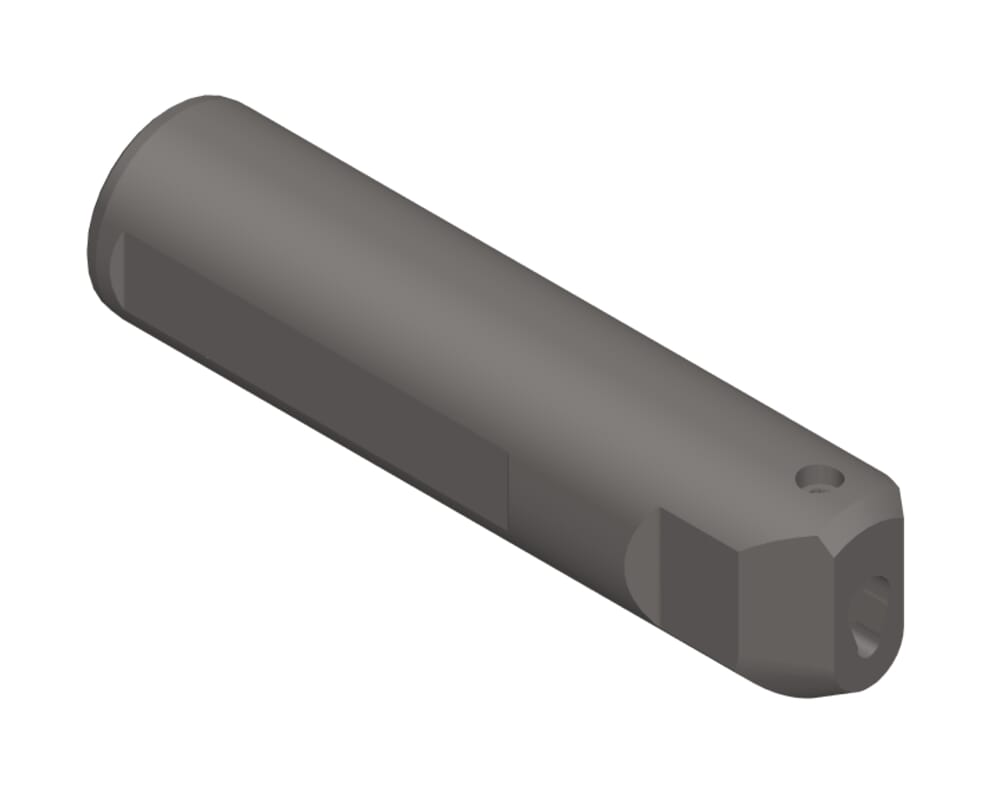

HORN Toolholder B109.0025.01 for Turning
Please note:Technical instructions
Shank, clamping diameter (d)
25
eclass-shortcut
21-18-10-05
ISO_CCTMS
ZYL23G2500$$$$
DIN_CCTMS
ZYL02502315
Katalog_CCTWS
109140
DIN_CCTWS
HORN-10914095N
ISO_CCTWS
HORN109140$95N$$$$$
Length of clamping surface(s) (l4)
55
mm
Head diameter (d2)
25
mm
Height clamping surface(s) (h)
23
mm
Total length (without cutting insert) (l1)
100
mm
| Downloads | |
|---|---|
| B109002501_20210629_113607949.DXF | Download |
| B109002501_20210630_111447116.STP | Download |
| Download all files | |
