B116.0012.02
Toolholders
Part number B116001202

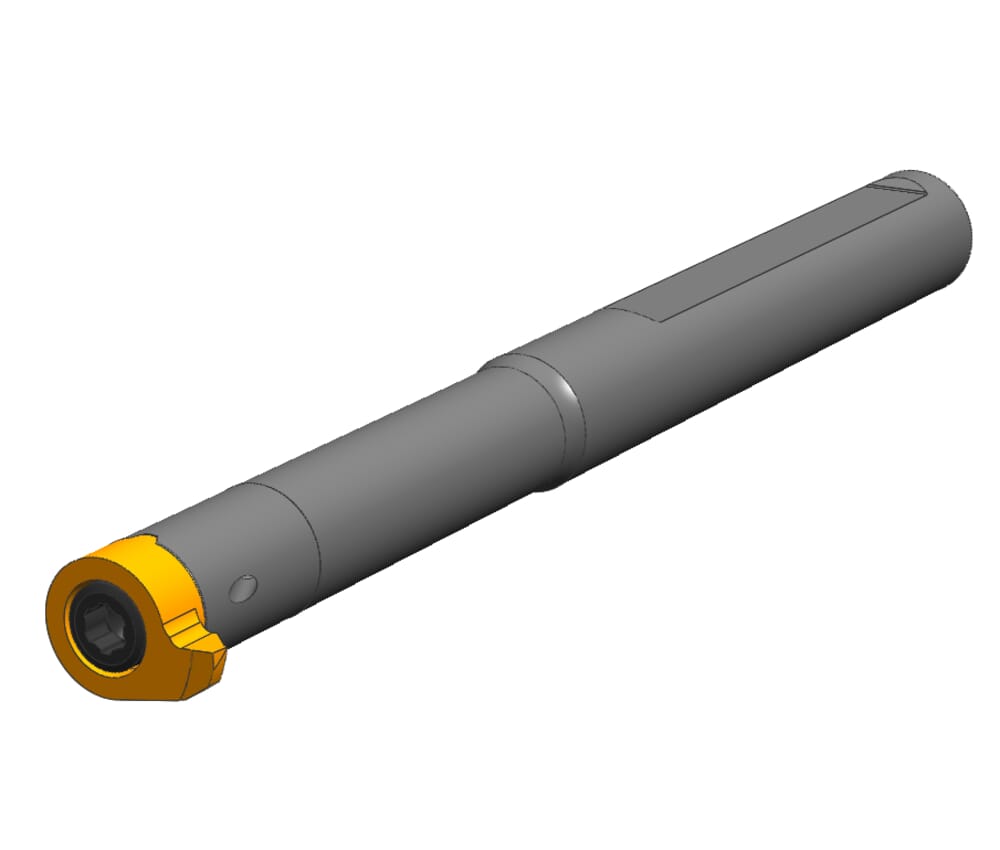

HORN Toolholders B116.0012.02 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05
Neck diameter (d1)
11
mm
ISO_CCTMS
ZYL50G1200$$$$
DIN_CCTMS
ZYL01205015
Katalog_CCTWS
116110R;116110L
DIN_CCTWS
HORN-11611084R;HORN-11611084L
ISO_CCTWS
HORN116110$84R$$$$$;HORN116110$84L$$$$$
Shank, clamping diameter (d)
12
mm
Height clamping surface(s) (h)
11
mm
Total length (including cutting insert) (l1)
130
mm
Outcropping, neck, working length (l2)
56
mm
| Downloads | |
|---|---|
| B116001202_20210627_143703031.DXF | Download |
| B116_0012_02_20171121_191629032.STP | Download |
| Download all files | |
