B116.0016.02
Toolholders
Part number B116001602

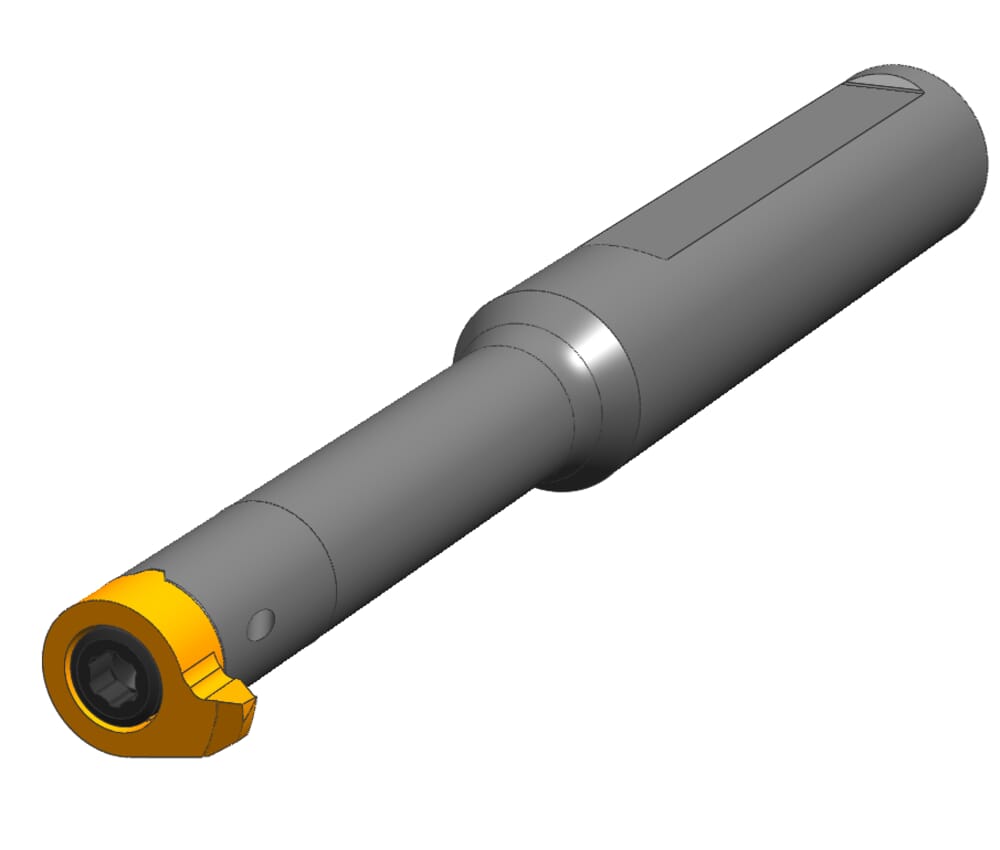

HORN Toolholders B116.0016.02 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05
Neck diameter (d1)
11
mm
ISO_CCTMS
ZYL50G1600$$$$
DIN_CCTMS
ZYL01605015
Katalog_CCTWS
116110R;116110L
DIN_CCTWS
HORN-11611084R;HORN-11611084L
ISO_CCTWS
HORN116110$84R$$$$$;HORN116110$84L$$$$$
Shank, clamping diameter (d)
16
mm
Height clamping surface(s) (h)
15
mm
Total length (including cutting insert) (l1)
130
mm
Outcropping, neck, working length (l2)
56
mm
