B116.0016.2.01
Toolholder
Part number B1160016201

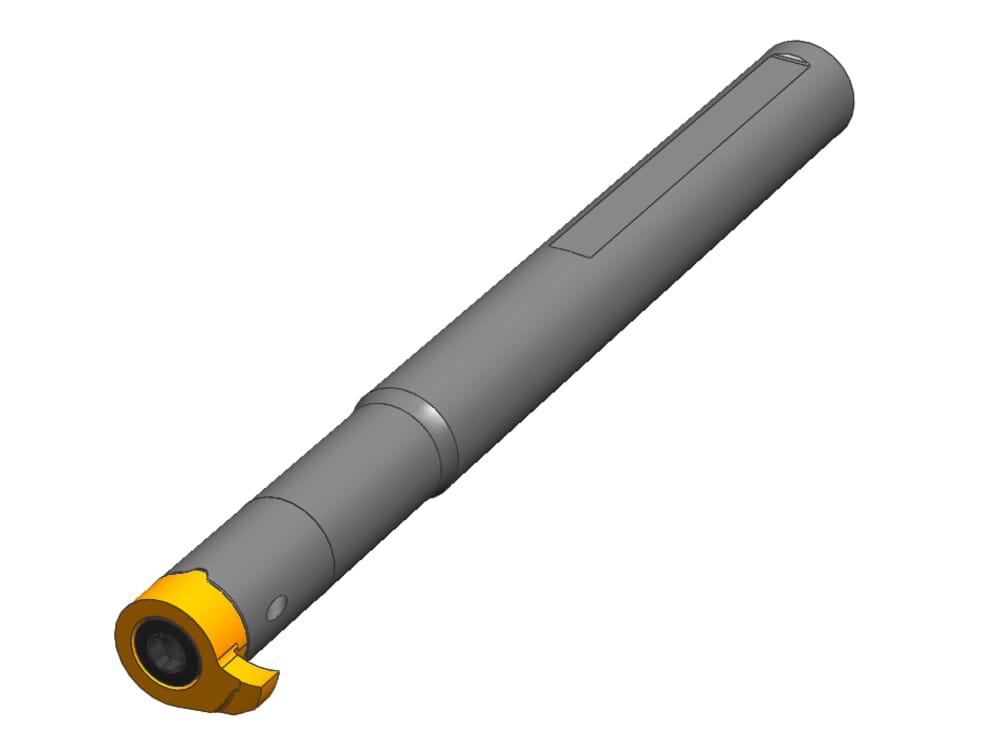

HORN Toolholder B116.0016.2.01 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-05
Neck diameter (d1)
11
mm
ISO_CCTMS
ZYL23G1600$$$$
DIN_CCTMS
ZYL01602315
Katalog_CCTWS
116110R;116110L
DIN_CCTWS
HORN-11611084R;HORN-11611084L
ISO_CCTWS
HORN116110$84R$$$$$;HORN116110$84L$$$$$
Shank, clamping diameter (d)
16
Height clamping surface(s) (h)
14
mm
Total length (including cutting insert) (l1)
130
mm
Outcropping, neck, working length (l2)
40
mm
