DG10.M10.01.5.03.0F PD39

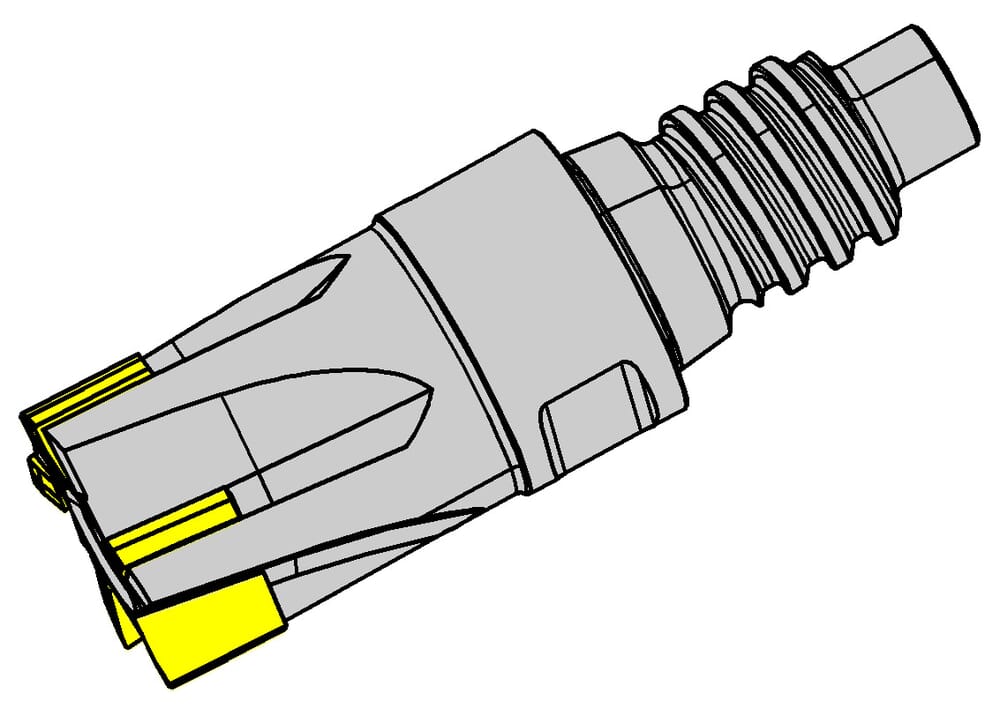

Milling Head PCD tipped

Part number DG10M10015030FPD39

HORN Milling Head PCD tipped DG10.M10.01.5.03.0F PD39 for Milling

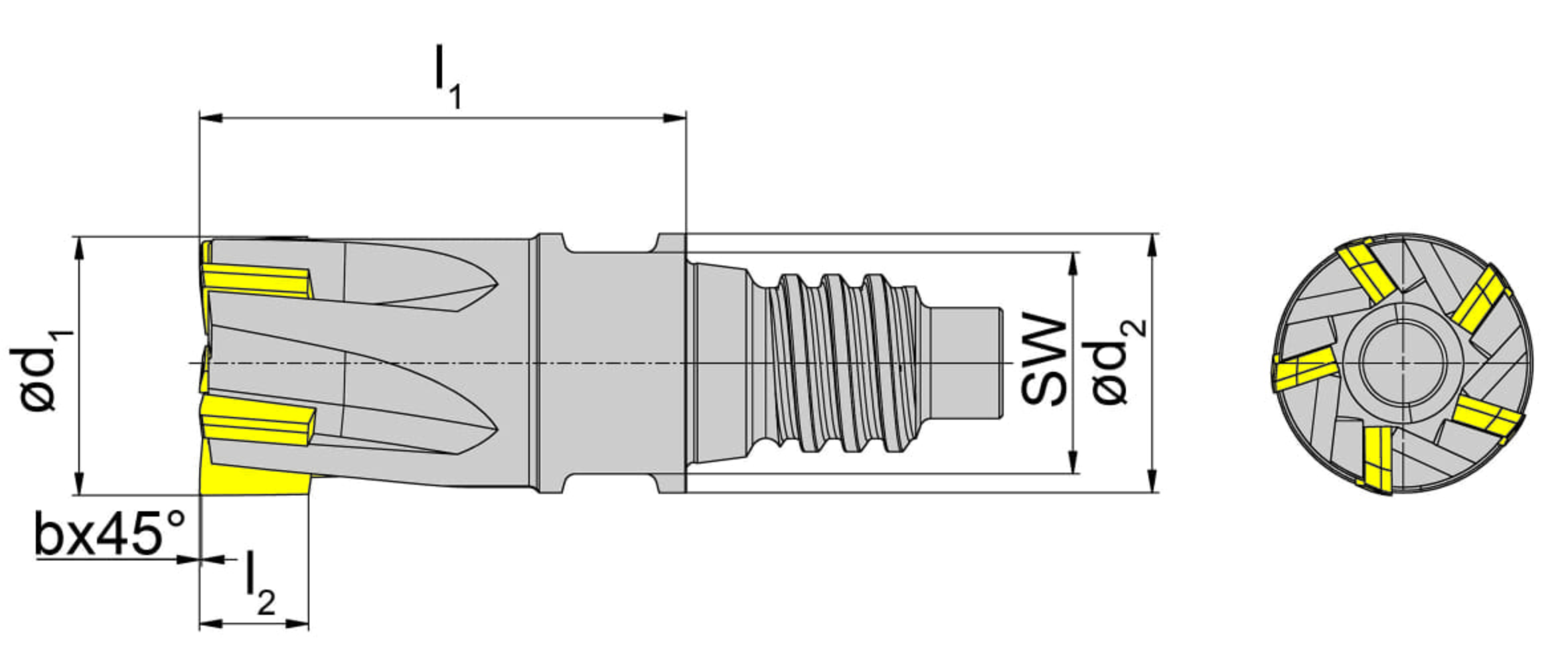

Shank diameter (d2)

9.8 mm

Cutting diameter (d1)

10 mm

Number of teeth (Z)

5 St.

System (System)

DG10

Key range (SW)

8 mm

Effective cutting length (l2)

3 mm

Tool length from stop, flange (l1)

12 mm

Corner bevel (45 ° x b) (b x 45°)

0.1 mm
