R108.0810.45 MG12
Inserts
Part number R108081045MG12

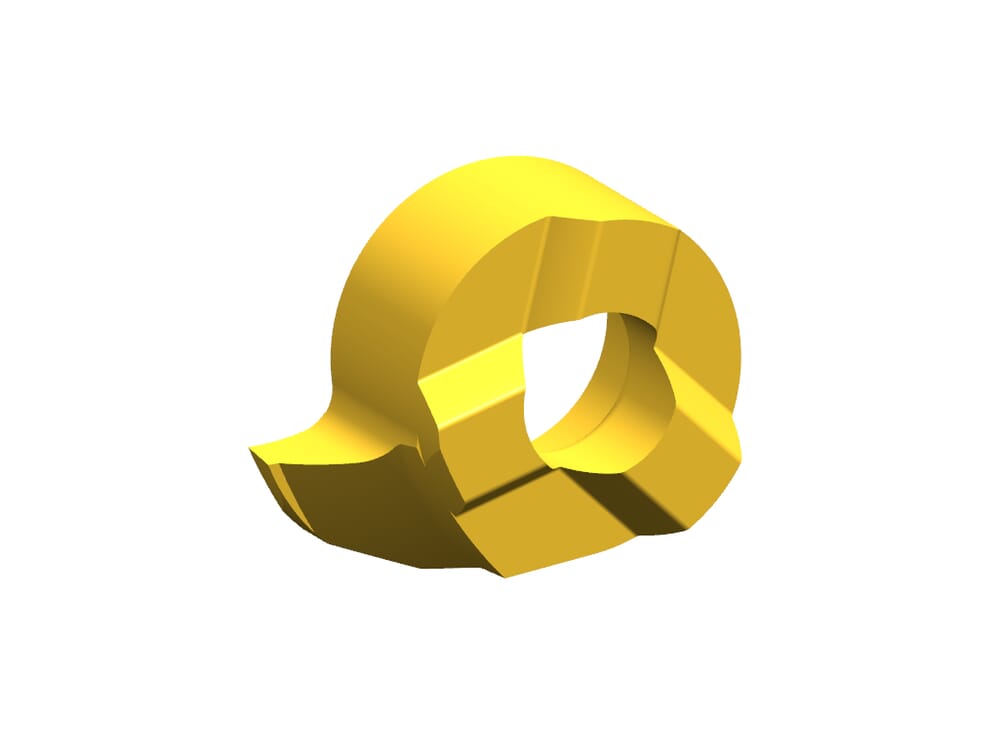

HORN Inserts R108.0810.45 MG12 for Turning
Please note:Technical instructions

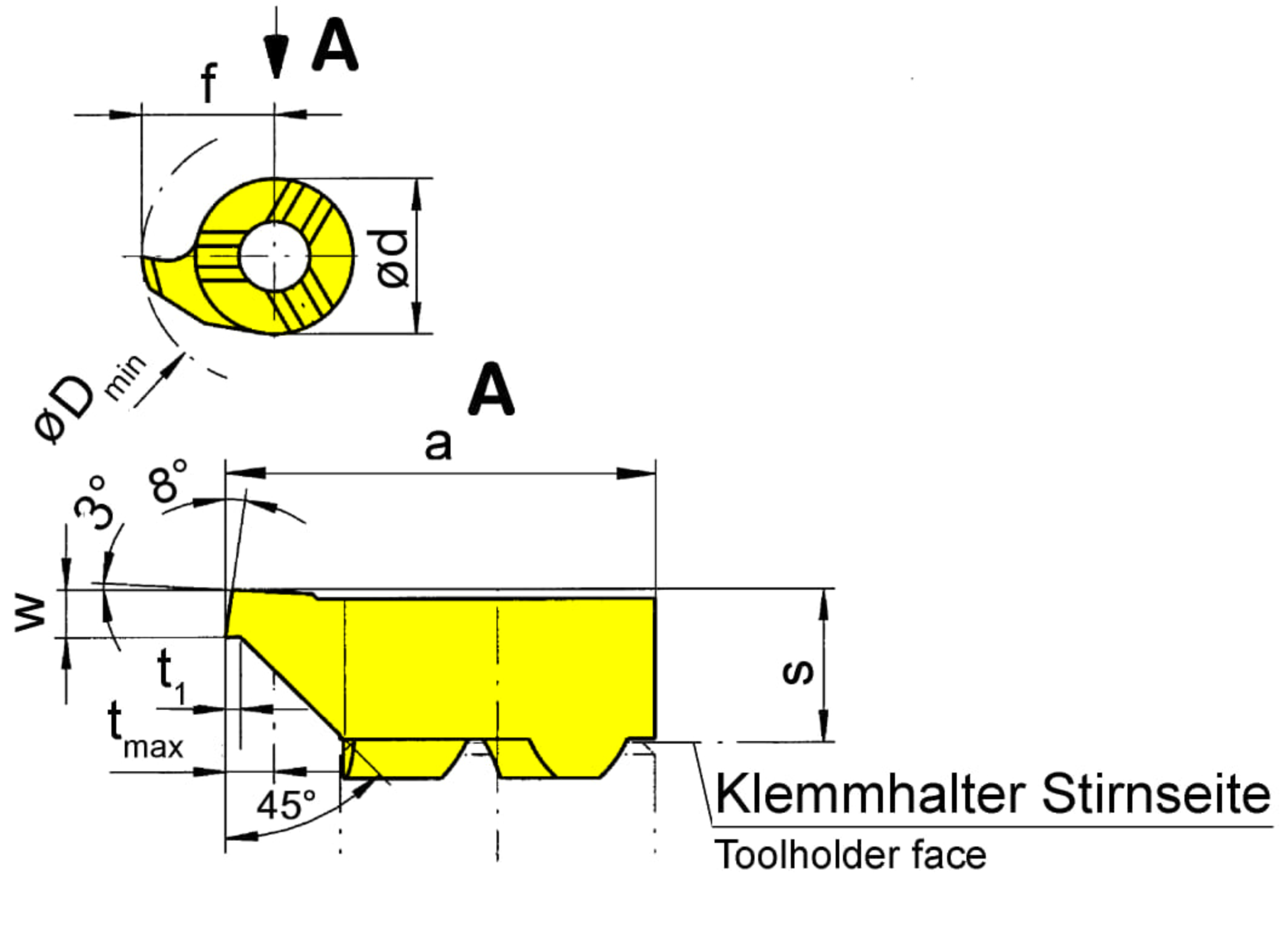

Smallest bore diameter (Dmin)
8
mm
Cutting insert height, Cutting insert thickness (s)
3.2
mm
Tooth diameter, head diameter (d)
6
mm
Setting range radial (f)
4.8
mm
Width of groove (w)
1
mm
Katalog_SSC
108060R
DIN_SSC
HORN-10806084R
ISO_SSC
HORN108060$84R$$$$$
eclass-shortcut
21-18-20-11
Groove depth without groove outer edge chamfer (t1)
0.2
mm
Maximum depth of groove (tmax)
1.5
mm
Head size (a)
7.8
mm
Downloads | |
---|---|
R108081045_20210625_202901566.DXF | Download |
R108081045_20210630_151352565.STP | Download |
Download all files |
